MIZU
173.98 | OCEANFAST |2004

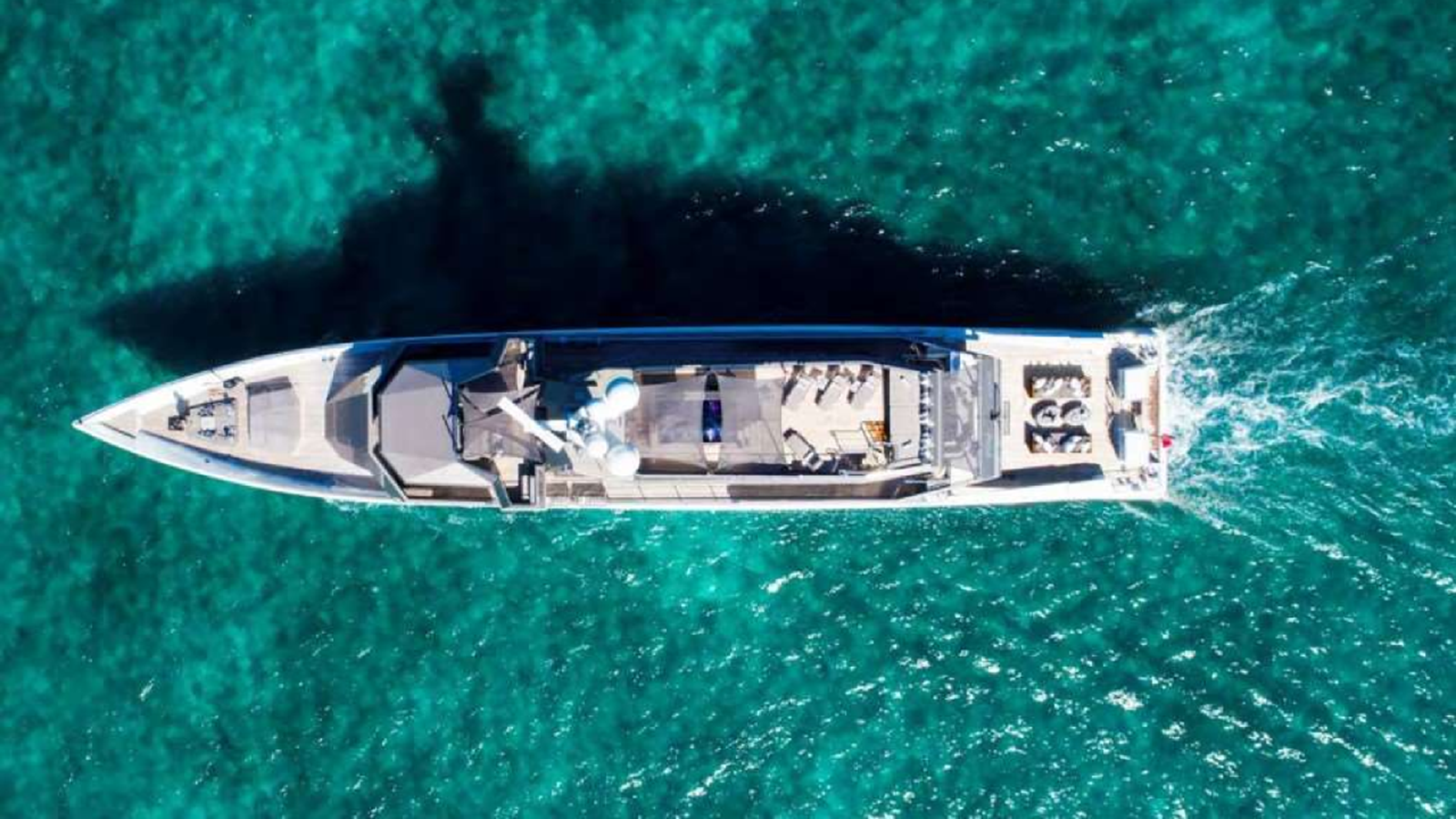

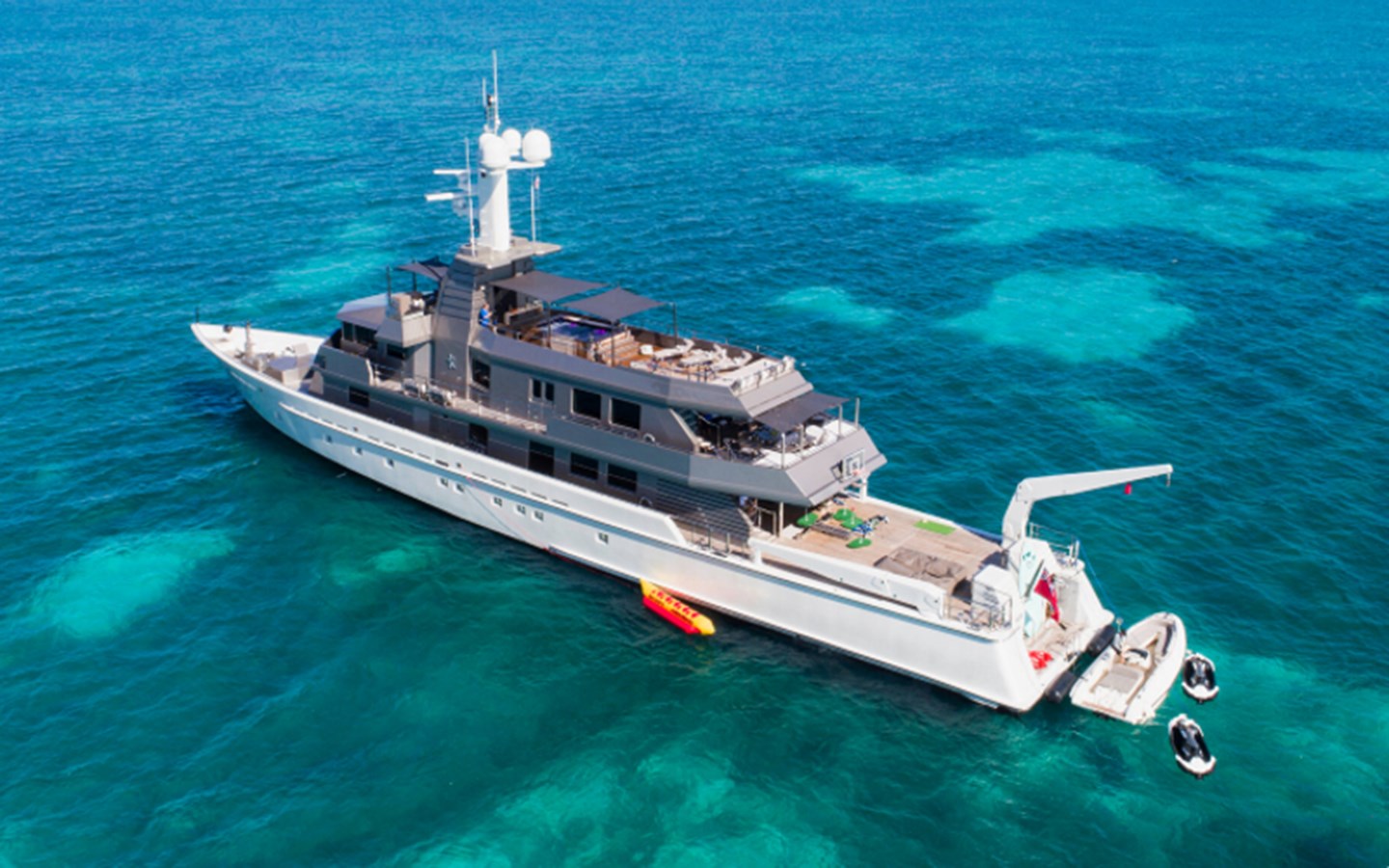

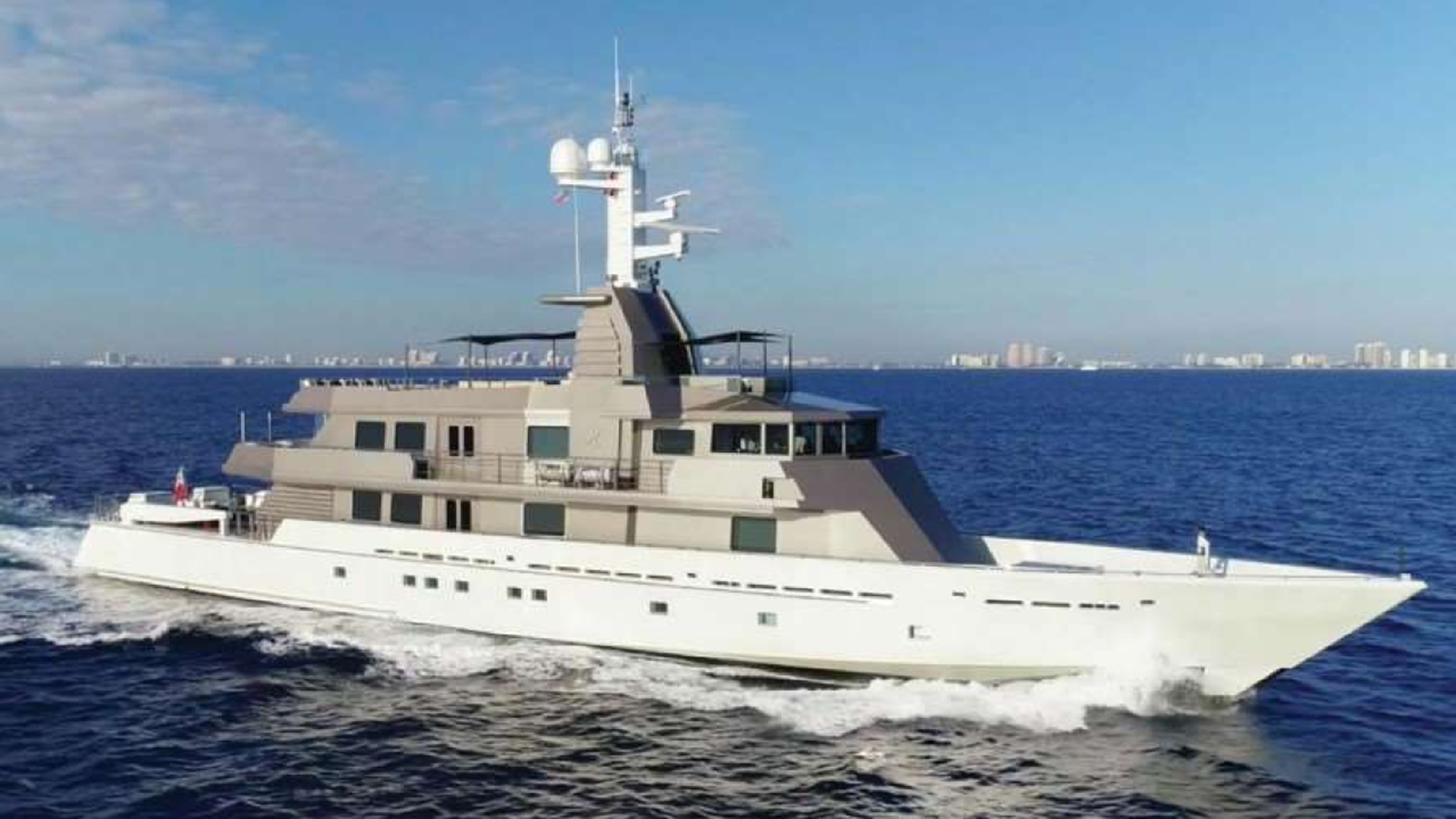

We are pleased to announce the Central Agency appointment for the sale of the 53m Oceanfast superyacht MIZU. Built in aluminium and designed for speed and long-range cruising, MIZU offers a rare combination of trans-Atlantic capability, distinctive styling and expansive deck spaces. The yacht has benefitted from refit and upgrade works and presents an attractive opportunity for experienced owners seeking performance and individuality. A new professional photoshoot will be completed shortly and updated imagery will follow

Audio & Visual Equipment

• Sea Tel Worldwide Satellite TV system
  3 x 42" Sony Flat screen Plasma TV
  8 x Regular TV
  Separate sound systems in galley, engine room and outside deck areas

  Sonos sound system

  Starlink antenna

Deck Equipment
• 2 x MUIR VRC18000 Polished SS Vertical Anchor Windlass
  2 x MUIR VR18000 Polished SS Vertical Mooring Windlass Capstans
  2 x 675kg Fully Balanced HHP Poole Anchors
  2 x Sections of 192.5m Grade U4 24mm Galvanized Studlink Chain
  Nautical structures 5,500  lb SWL (port side)
  Nautical structures 5,500 lb SWL (stbd side)

Mechanical

• N.R. Koeling BV Air Conditioning
  H.E.M. Duplex 30/2100 RO water maker 16000 L/day
  H.E.M Type 3300 Water Treatment Plant
  Hamann Wassertechnik Sewage Treatment Plant

  2 x Brunton Fixed Pitch 1590mm Propellers
  2 x ZF7540 Reverse Reduction Gearboxes
  Quantum Bow Truster QT120

Galley
• Vulcan Six Ring Electric Cooktop
  Vulcan Electric Combination Oven
  (2) Hobart Electric Combination Oven and Steamer
  Vulcan VMB Single Broiler (Grille)
  Built In  Miele Electric Deep Fryer
  Amana Microwave Oven
  Kitchen Aid Under Sink Waste Disposal Unit
  Hobart Dishwasher
  Subzero Full Height Wine Storage
  Subzero Full Height Refrigerator
  Scotsman Under Counter Compact Cuber
  Ice Maker General Electric Trash Compactor
Remarks
• 2025

  QL3 on both Engines
  New Control and Monitoring system from Golden AS
  New External and Internal gpr lights
  New AI Cameras
  New electronic panels on the flaps and stablisers

  New Sonos sound system and TV's

  New floor at the crew mess

  New washing machines

  Installation of Starlink

  Summer 2023



  Main Engines

  • Compete Service
  • Lube oil, filters & coolant
  • Major overhaul of (2) Seawater pumps
  • Installed (2) freshwater pumps
  • Valve clearance checked & adjustment
  • Gear box coolers – cleaned & flushed





  Diesel Generators

  • Major mechanical overhaul of port & starboard generators

  Sea Water & Bilge System

  • All sea chest & overboard valves overhauled and/or replaced
  • Bilge pump overboard piping replaced
  • Auxiliary sea water suction piping replaced

  Main Engines Exhaust System

  • Replaced starboard side compensator
  • Replacement of port and starboard sections of wet exhaust system as required

  Deck Machinery

  Major Overhaul of:

  • Port and starboard boat deck cranes
  • Port and starboard anchor windlasses (gearbox and hydraulic motors)
    Port and starboard capstans (gearbox and hydraulic motors)
  • Aft boarding passerelle
  • Port & starboard cranes load test performed as per Bureau Veritas requirements

  Hydraulic System

  Major Overhaul of:

  • Two (2) PTO pumps
  • One (1) electrical driven pump
  • Emergency power pack 24v
  • Bow thruster
  • One (1) electrical driven pump replaced

  Stabilizers

  • Full overhaul of (4) hydraulic cylinders

  Flaps

  • Full overhaul of (2) hydraulic cylinders

  Steering Gear

  • Full overhaul of (2) hydraulic cylinders
  • Diesel generators exhaust system
  • Port and starboard side wet section exhaust pipes replaced

  Air Conditioning & Refrigeration System

  • Full service of (4) compressors incl. oil & freon replacement condenser cleaning
  • Full overhaul of (4) seawater pumps
  • Fresh water pump replaced
  • All fan coils cleaned
  • Full overhaul of all supply incl. installation of new filters
  • Installation of a new compressor for the deep freezer chamber

  Main Engines & Diesel Generators Exhaust Insulation

  • Removed & inspected with partial replacement as required

  Sewage system

  • Full overhaul of Hamman & vacuum pump

  Watermaker

  • Chemical cleaning & flush system
  • Replacement of sand filter
  • Major overhaul of two (2) high pressure pumps & motors

  Hull Bottom

  • Aluminum shell plates replacement as required
  • Zinc Anodes replaced
  • Antifouling application

  Batteries

  • Replacement of all service and emergency batteries

  Hull

  • Hull paint touch up with complete polish

  Monitoring System

  • Installation of new vessel monitoring system (as per Bureau Veritas)

  Various Electrical Inspections & Tests

  • Megger test
  • Emergency lighting system repair & test
  • Bilge alarm & float switches test
  • Fire alarm system repaired & test
  • Fire and bilge pumps
  • Test doors indication test

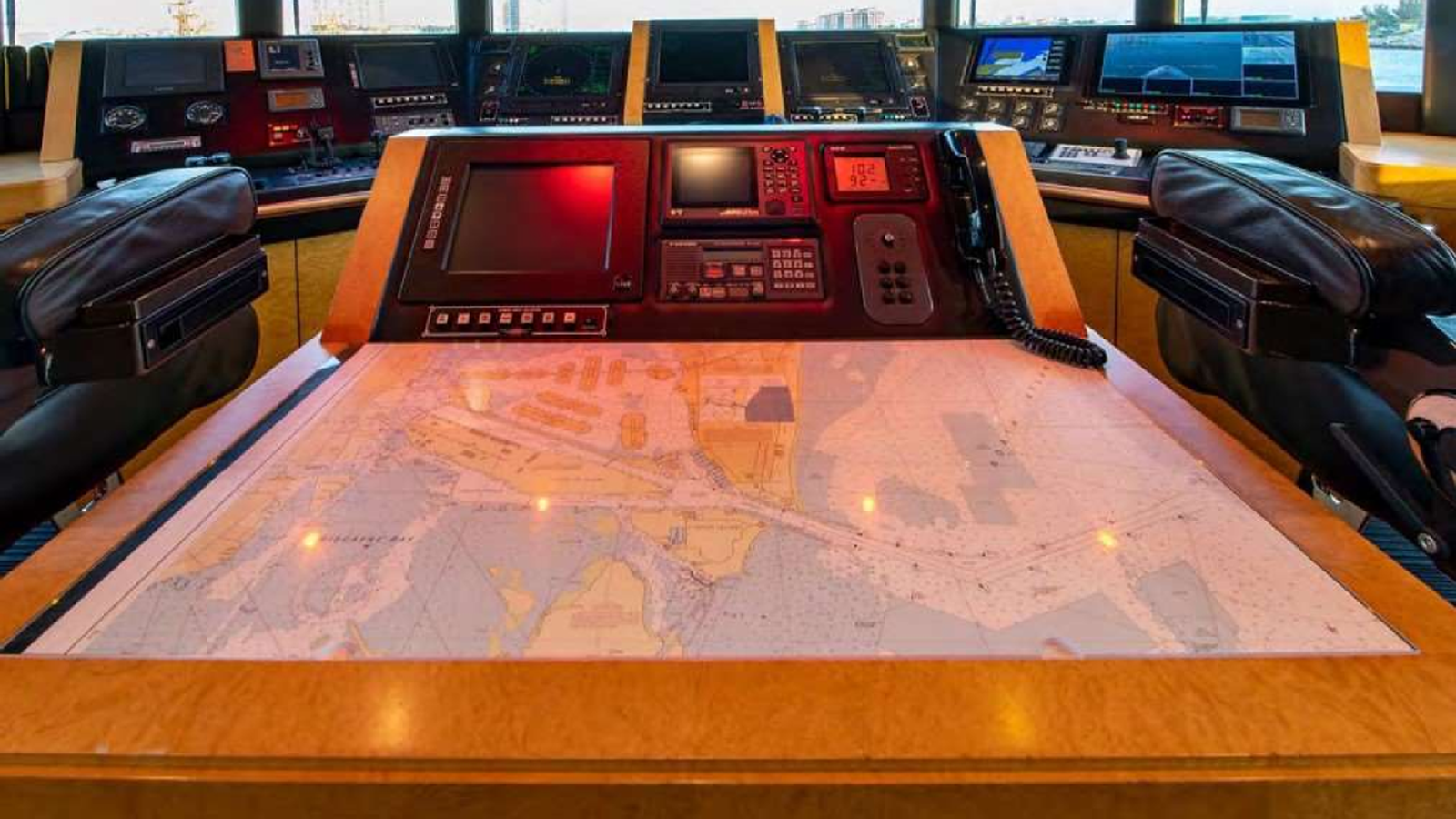

  Wheelhouse

  • Radar replaced with new NMEA
  • Buffer installation
  • ECDIS installation
  • Display Hatteland VGA replaced with new starboard side wing station
  • Tiller control repair
  • Starboard side wing station maneuvering controller repaired

  Teak Deck

  • Sun Deck teak replacement
  • Main & Sun Deck sanded
  • Cathodic protection system
  • Cathodic protection serviced



  Sliding Electric Doors

  • Installation of new ball bearings & nylon guide sliding electric doors

  CCTV System

  • System restored
  • Installation of 2 new cameras in the Engine Room

  Tanks

  • All tanks cleaned & inspected
Tenders
• Castoldi 4.55m with Yanmar 123hp diesel
  2 x Yamaha VX Cruiser Jetski 114hp
