ATLANTIS
156.16 | MAJESTY |2017

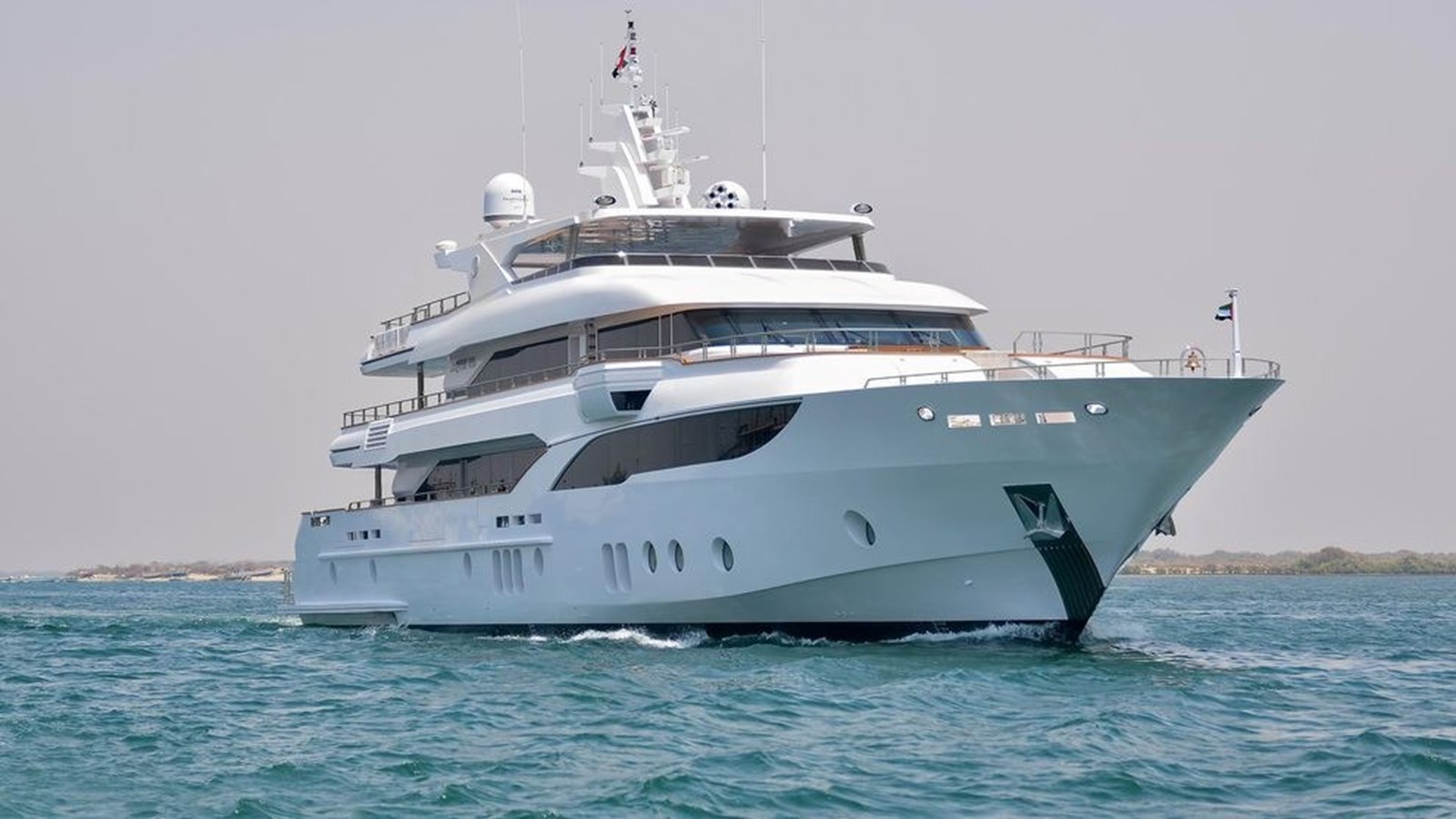

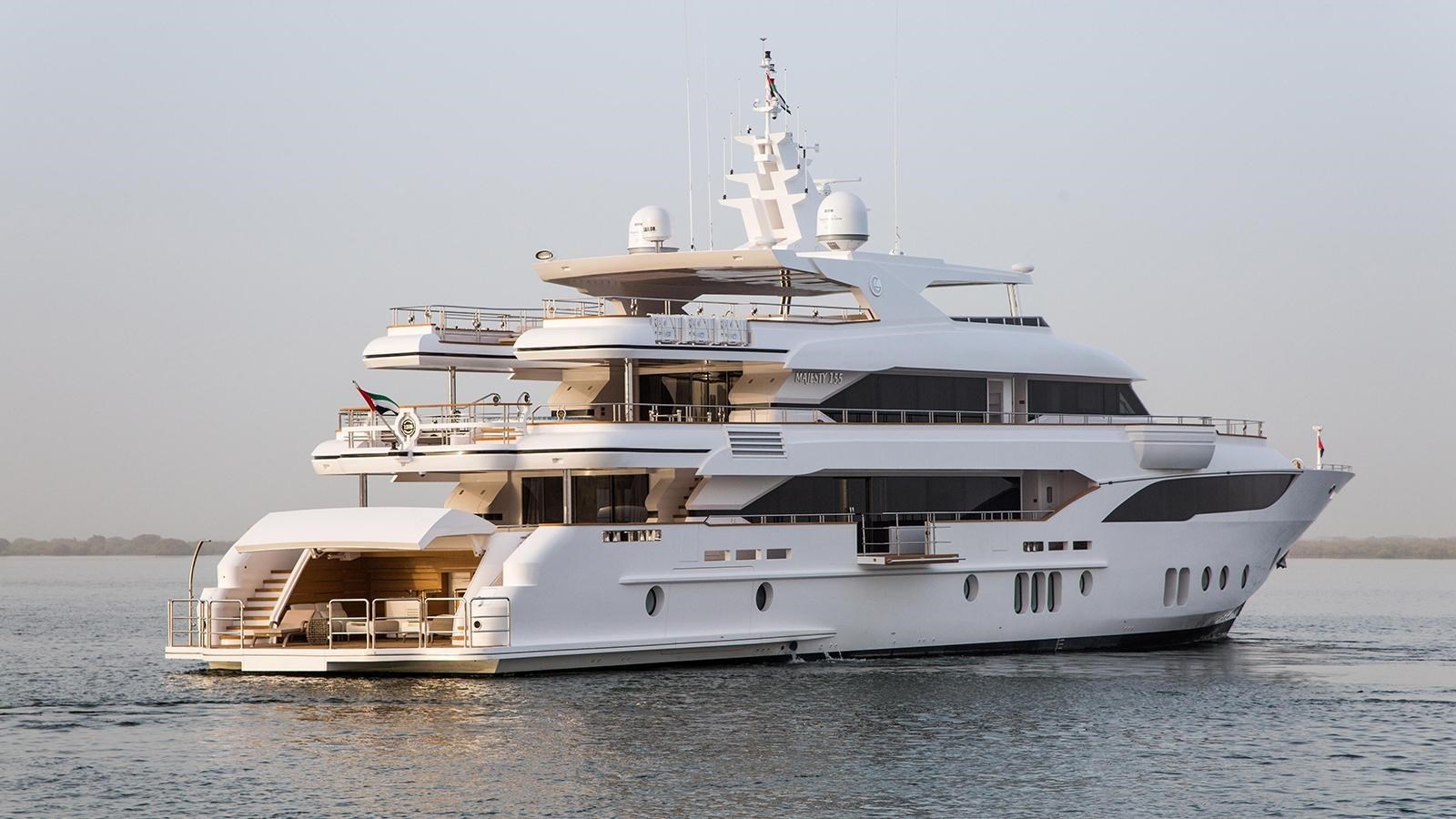

ATLANTIS is a 47.6m (156') Majesty 155 built by Gulf Craft, offering impressive volume, expansive exterior decks, and a highly versatile layout ideally suited for private cruising or charter use.

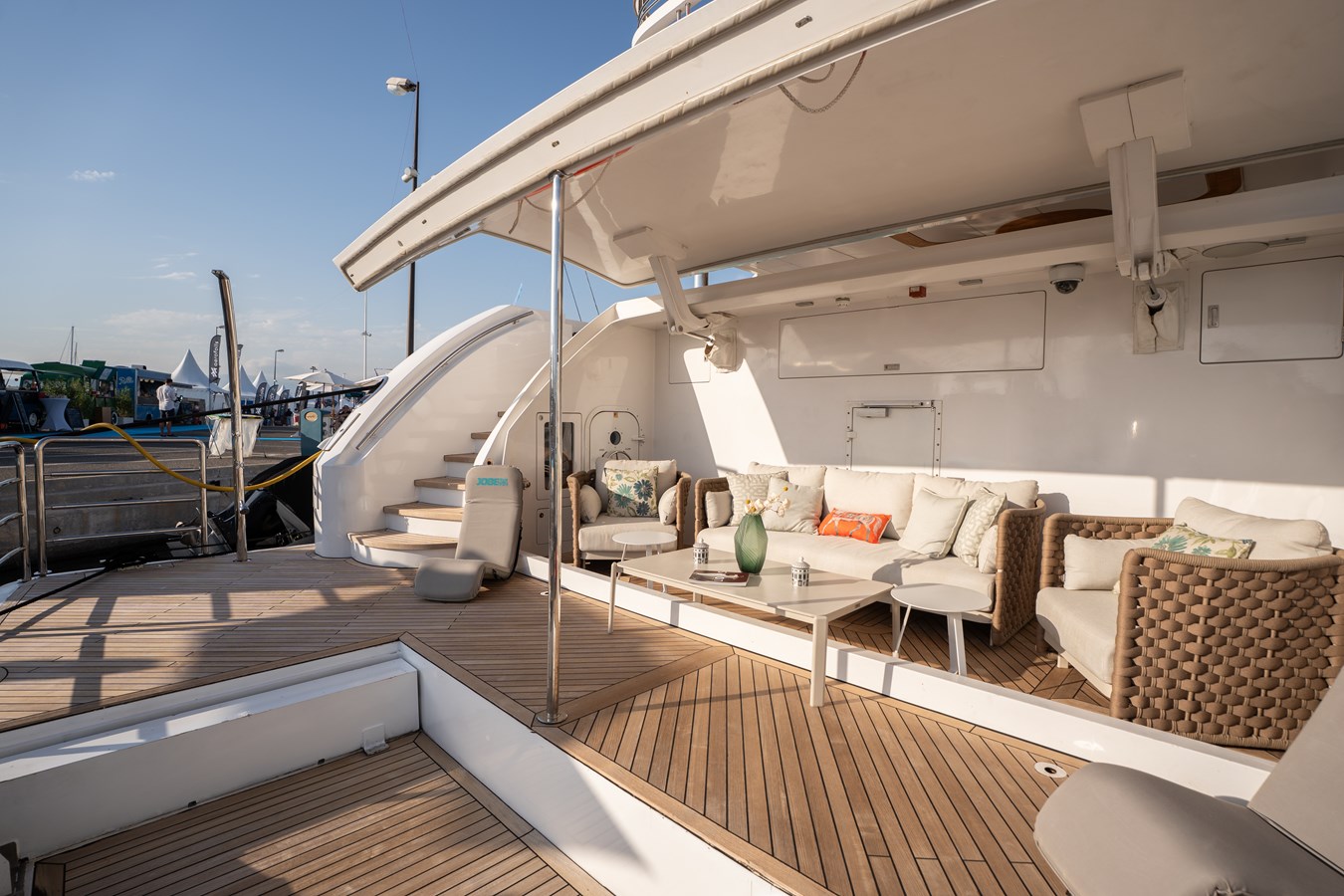

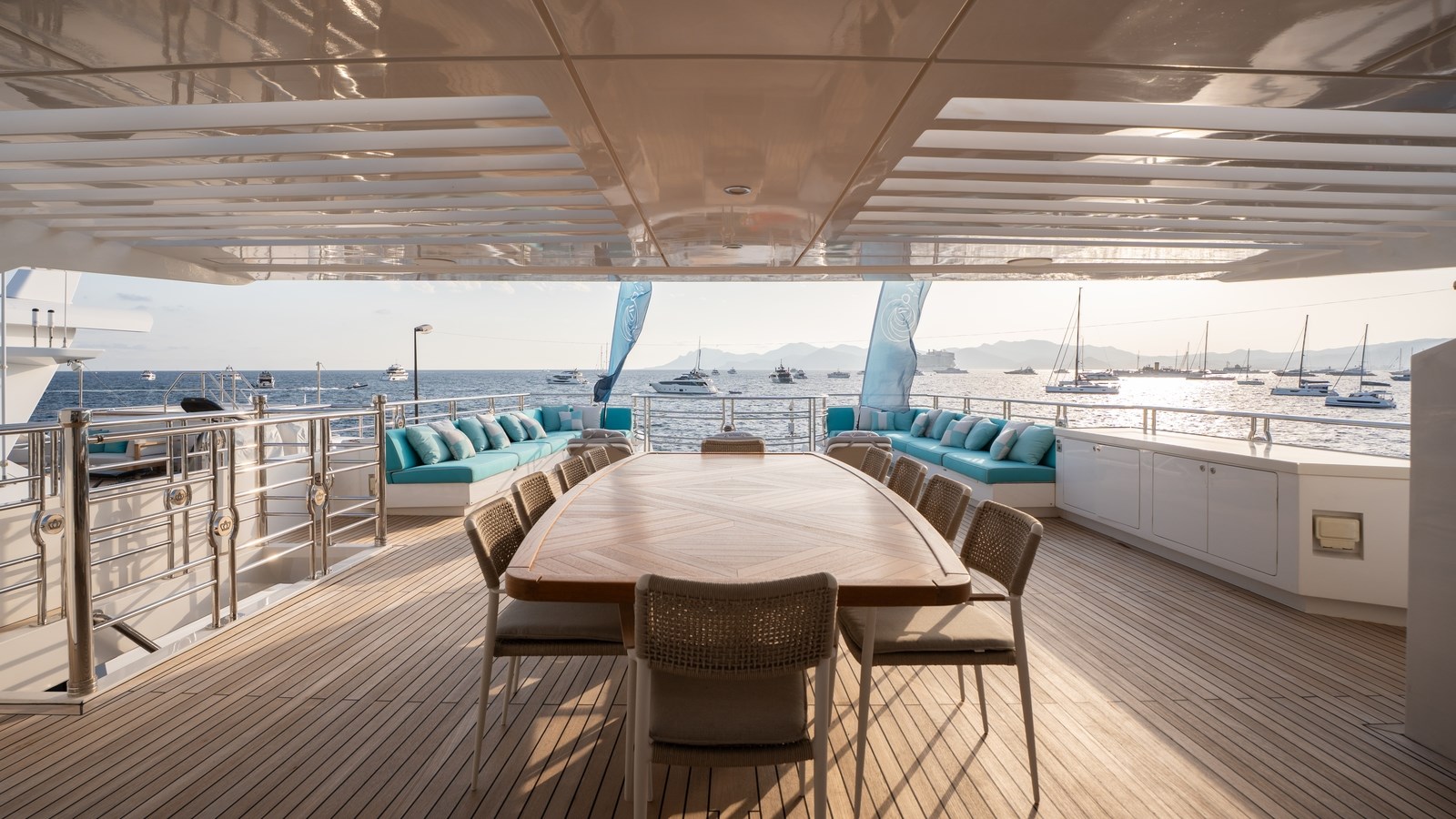

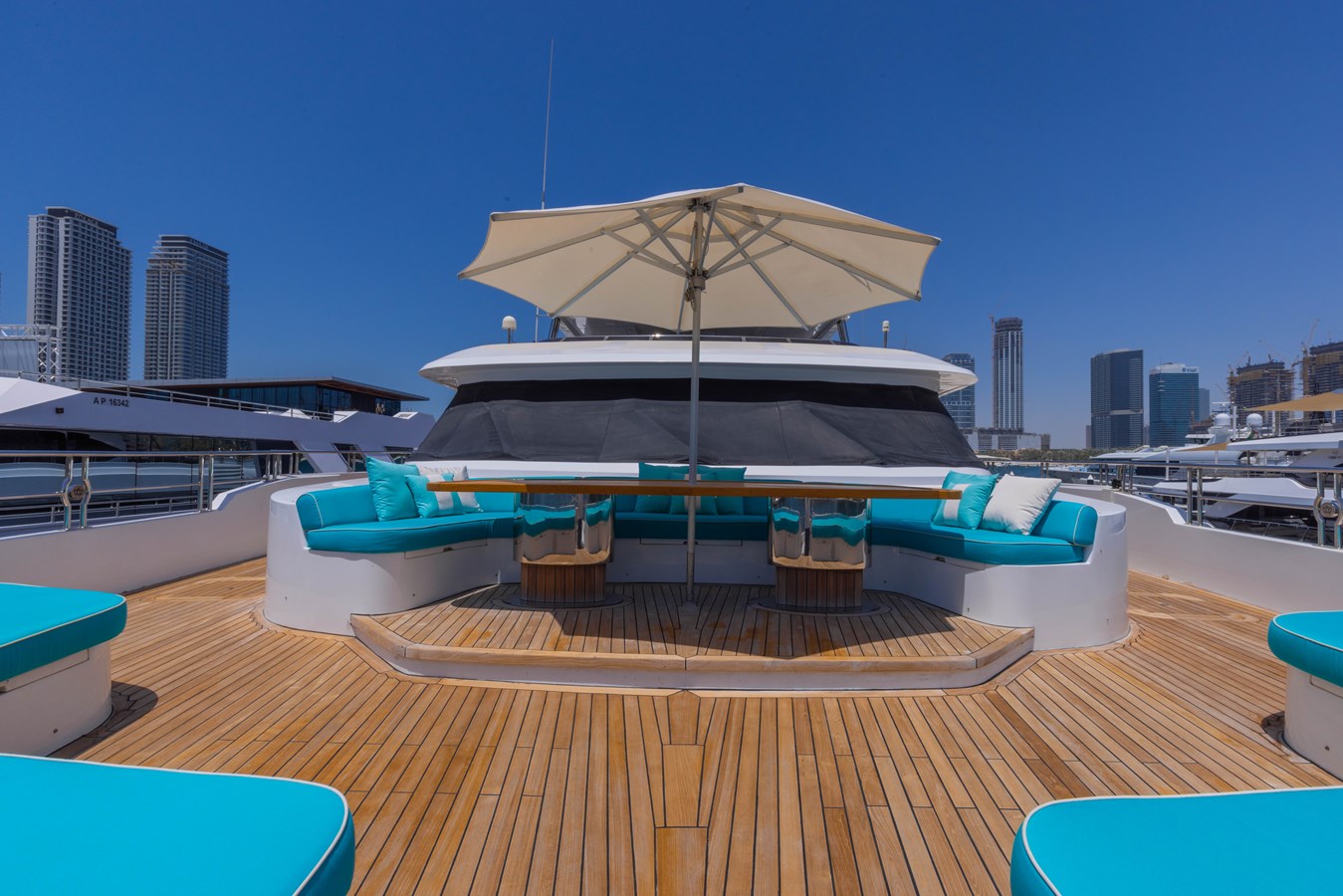

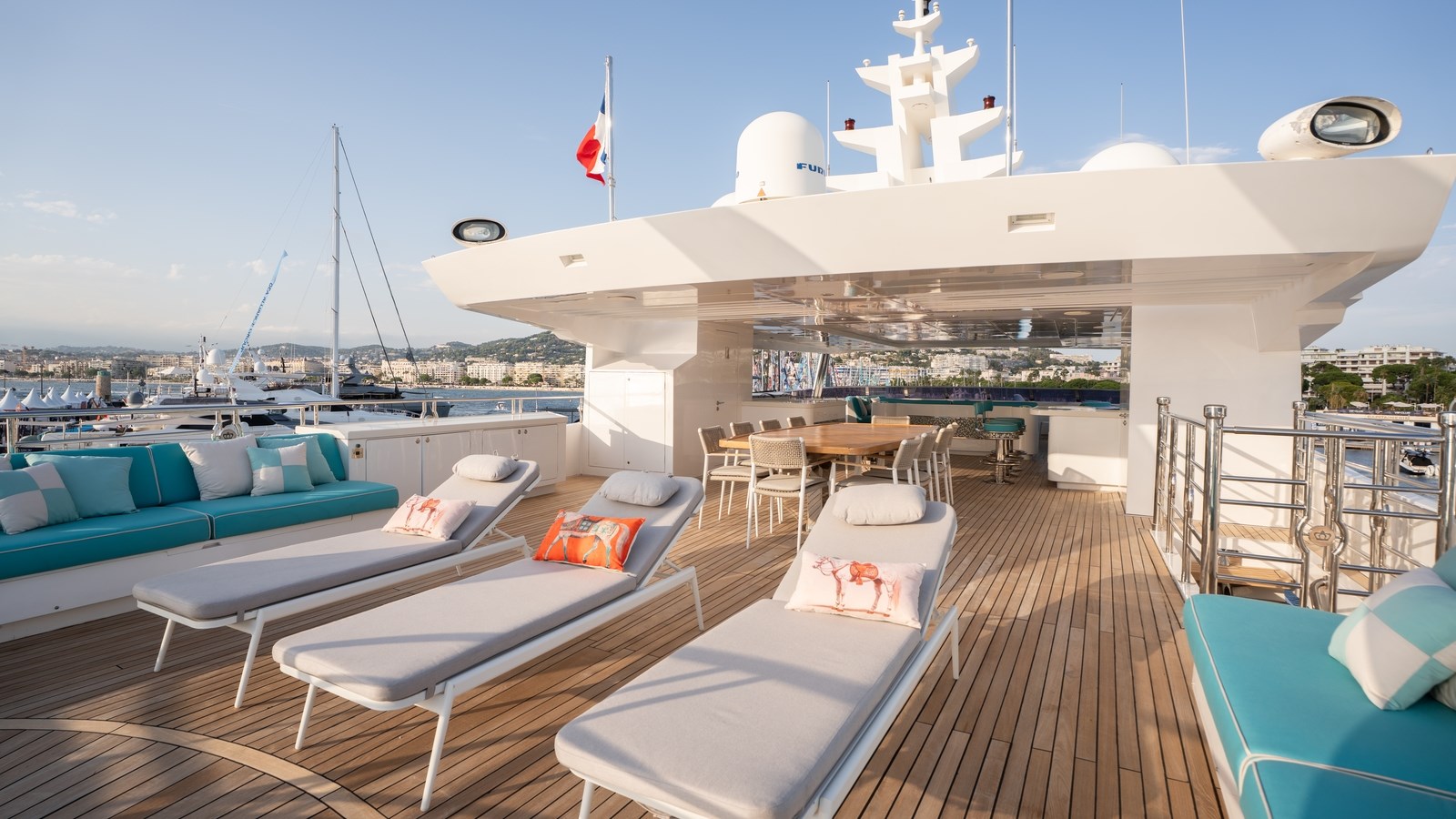

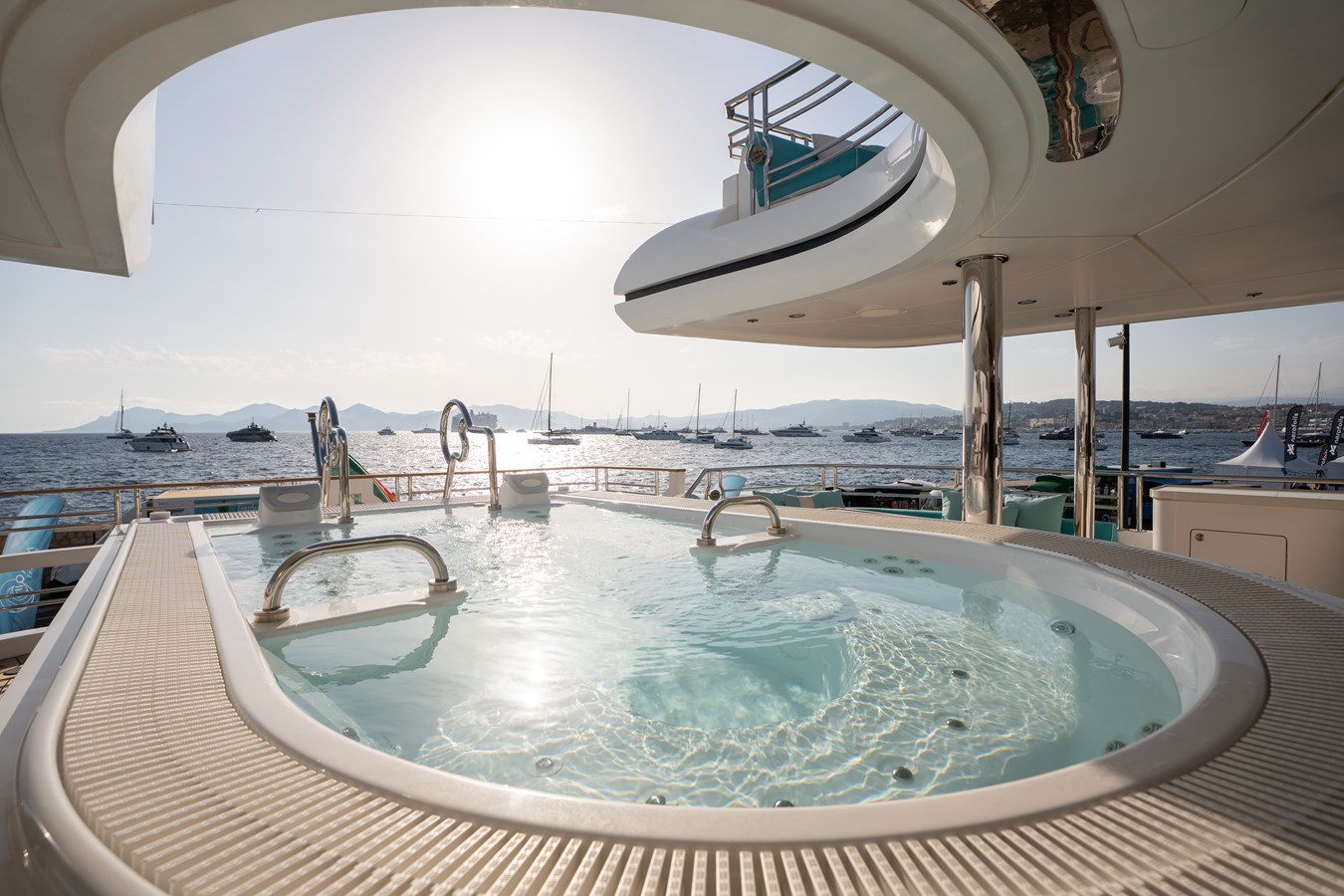

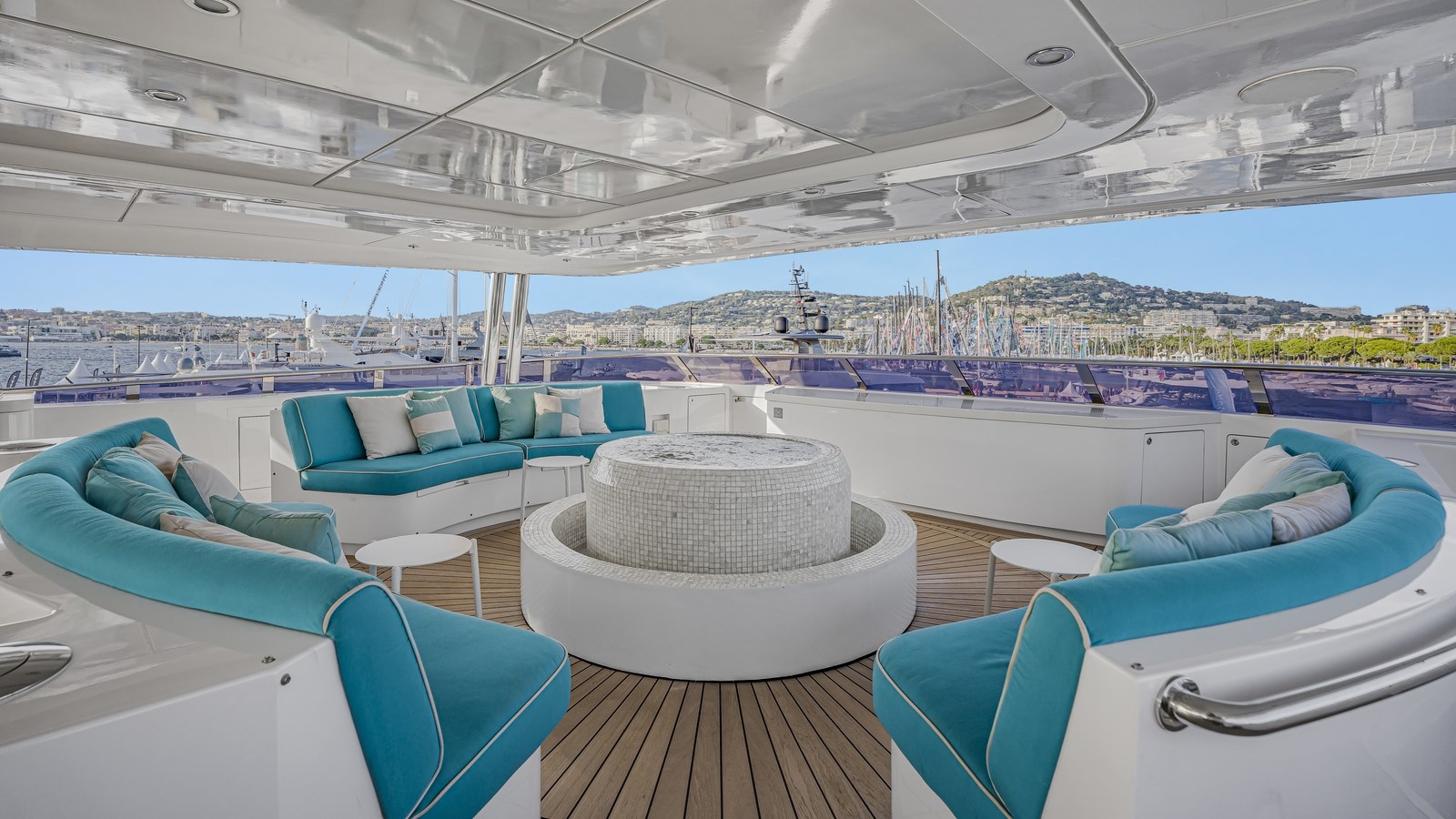

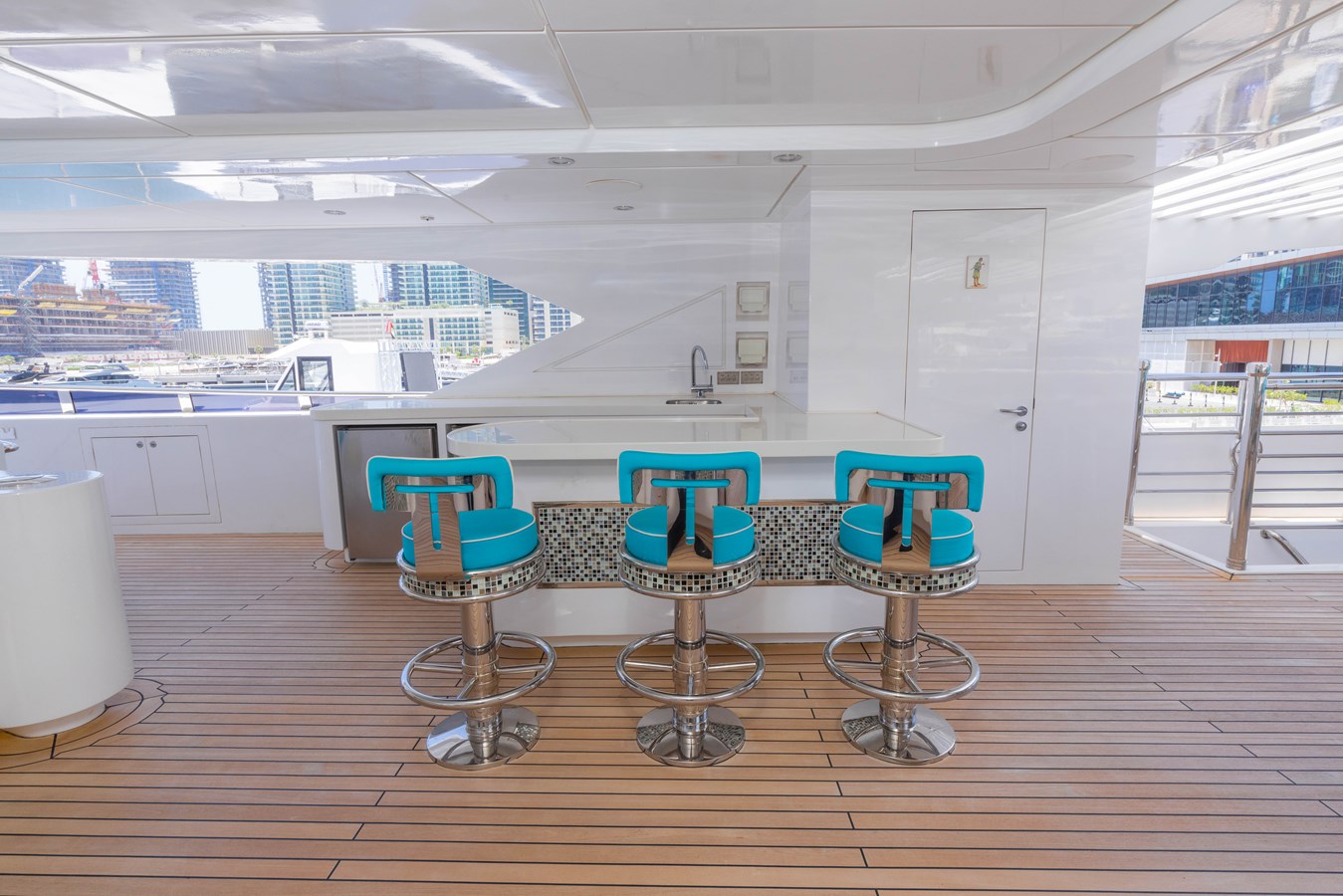

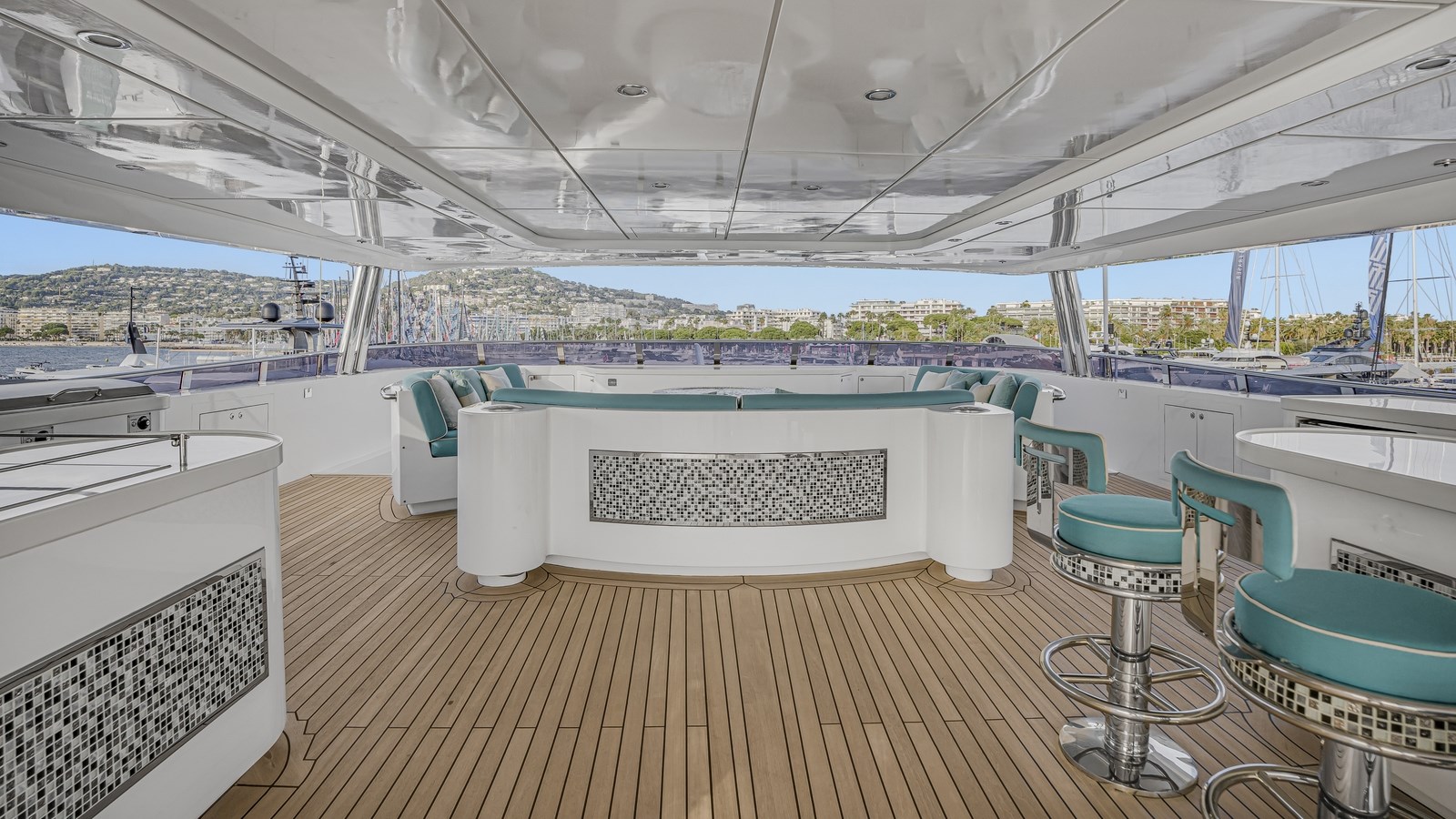

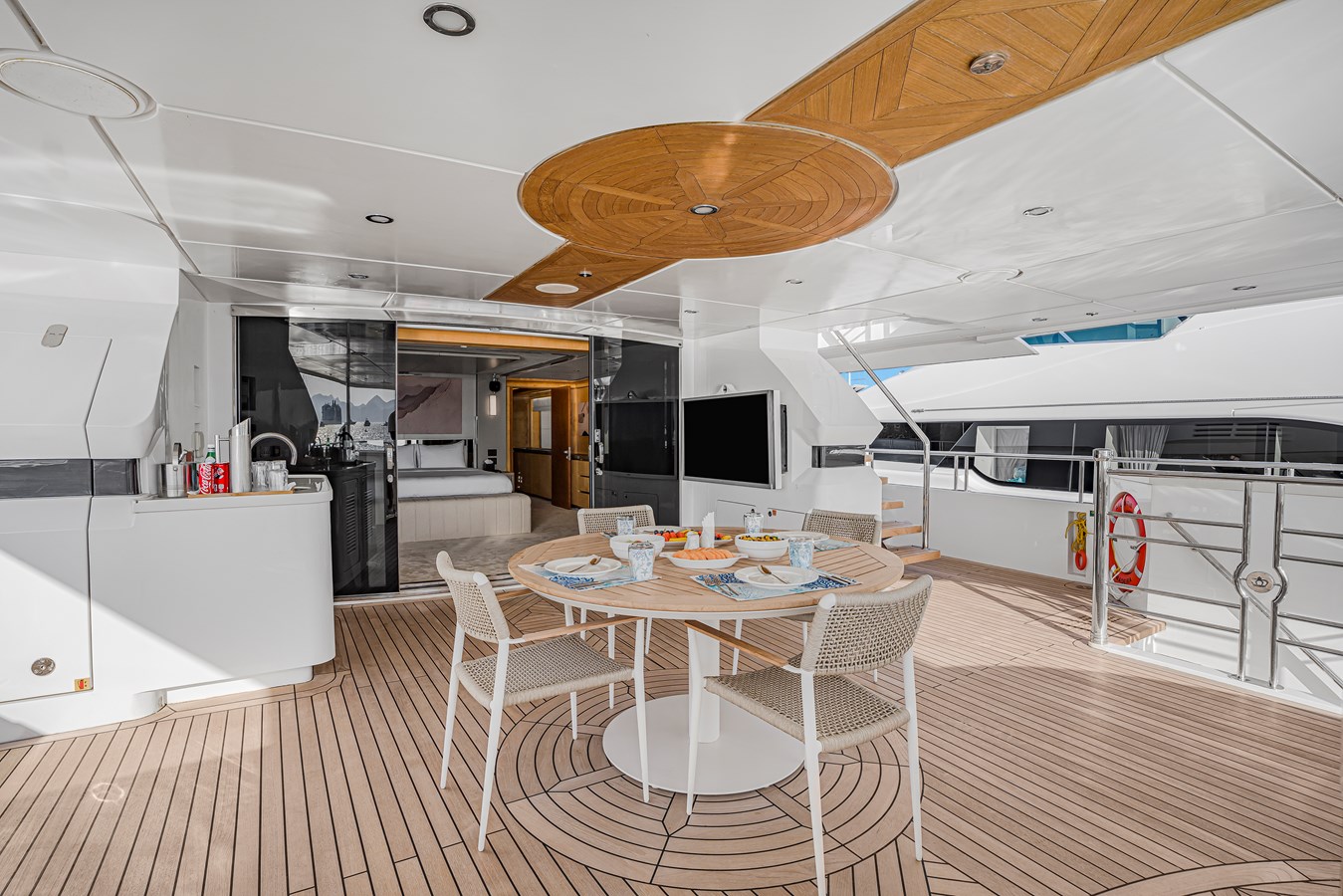

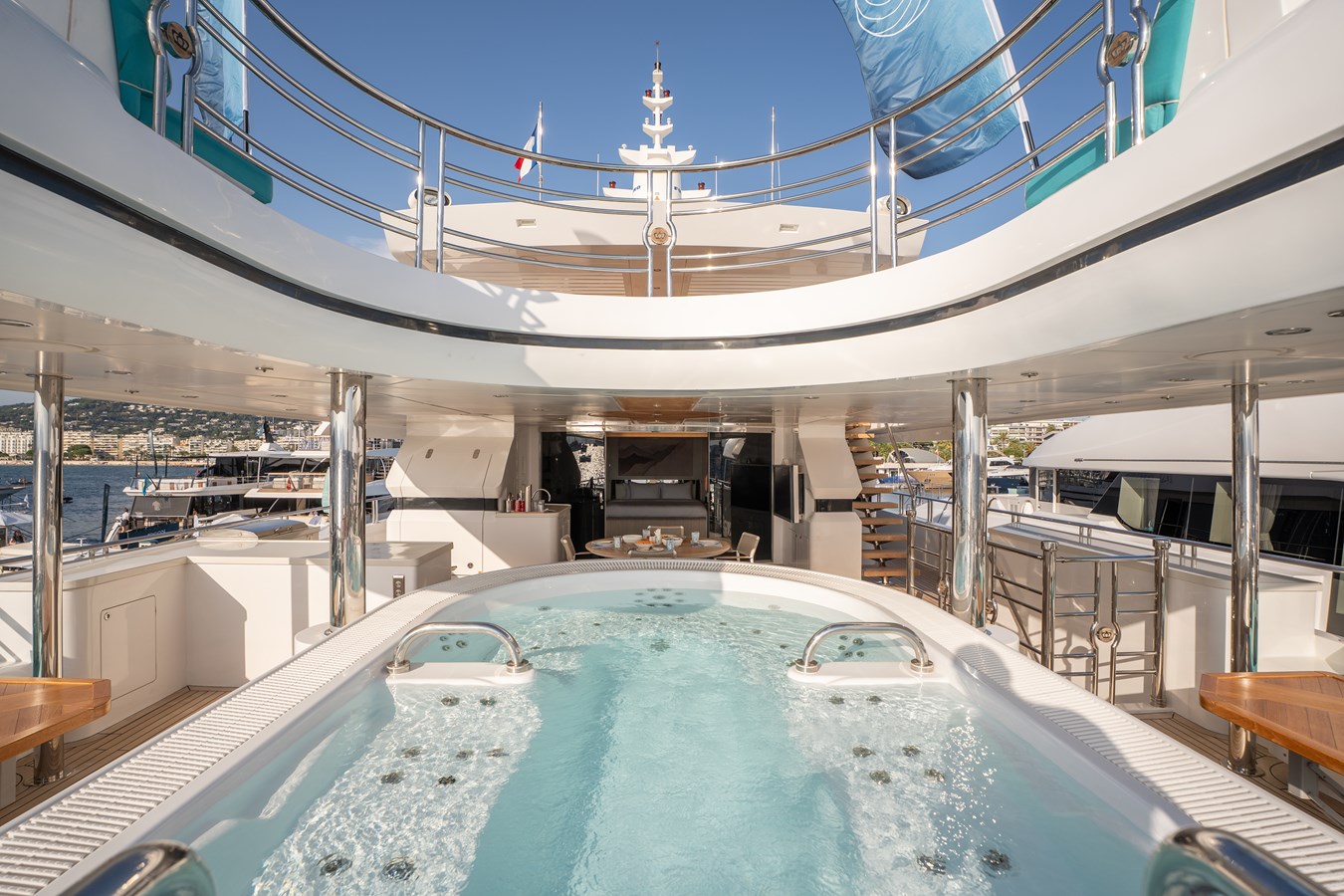

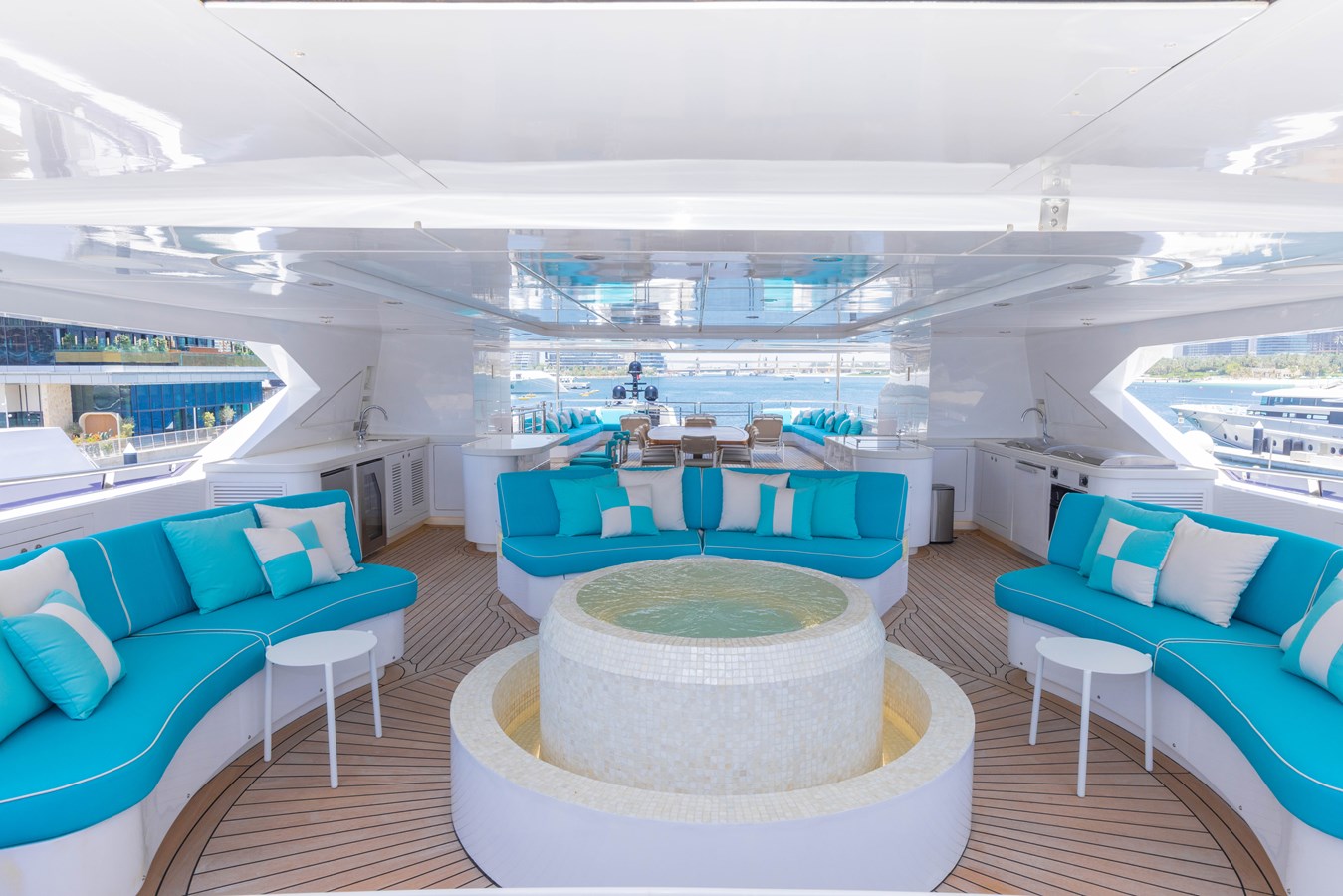

Designed across multiple decks, ATLANTIS provides exceptional outdoor living and entertaining spaces, including a spacious sundeck lounge, dining area, bar, and owner’s Jacuzzi. Her generous deck areas are equally suited for entertaining guests, relaxing at anchor, or enjoying extended time on board with family and friends.

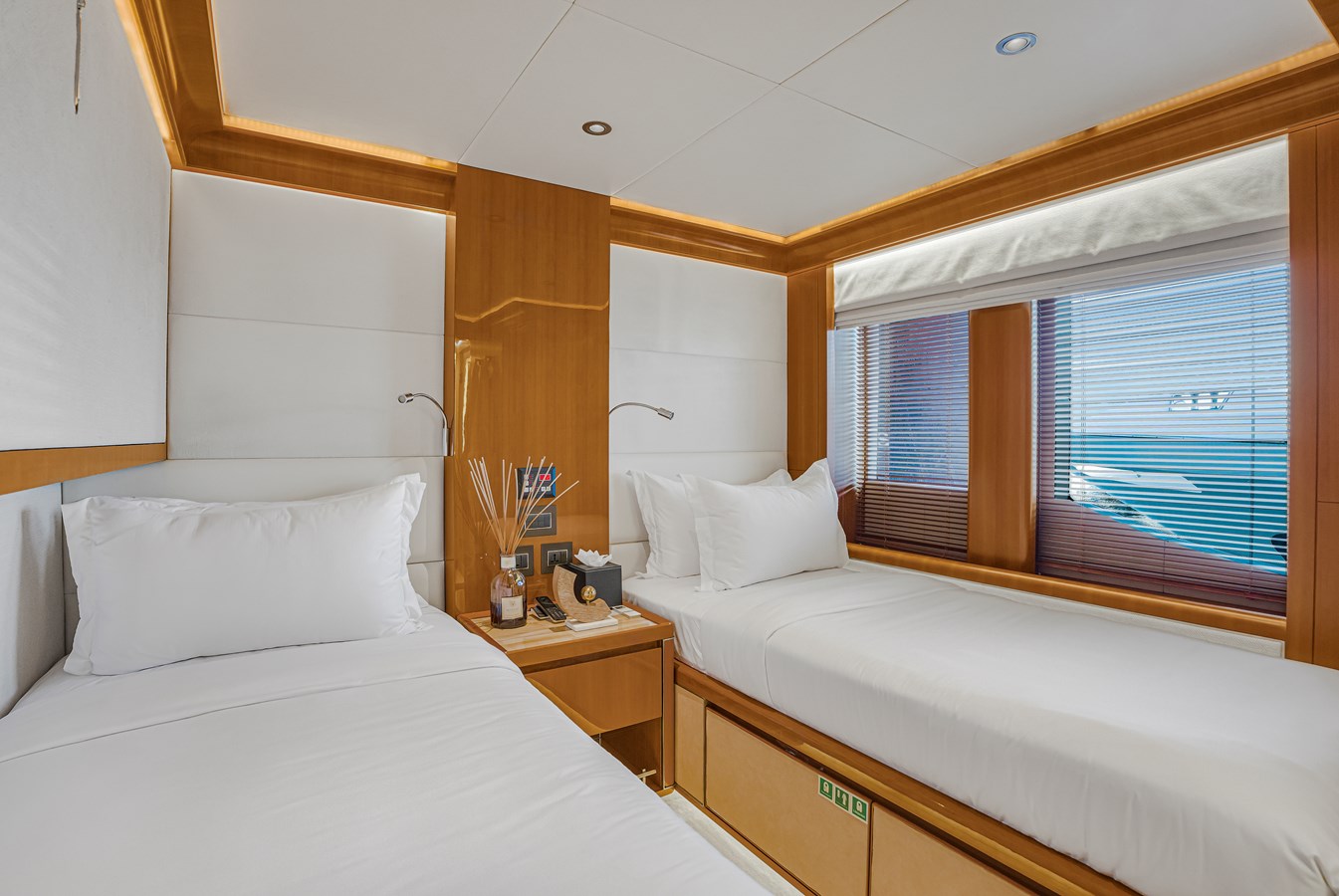

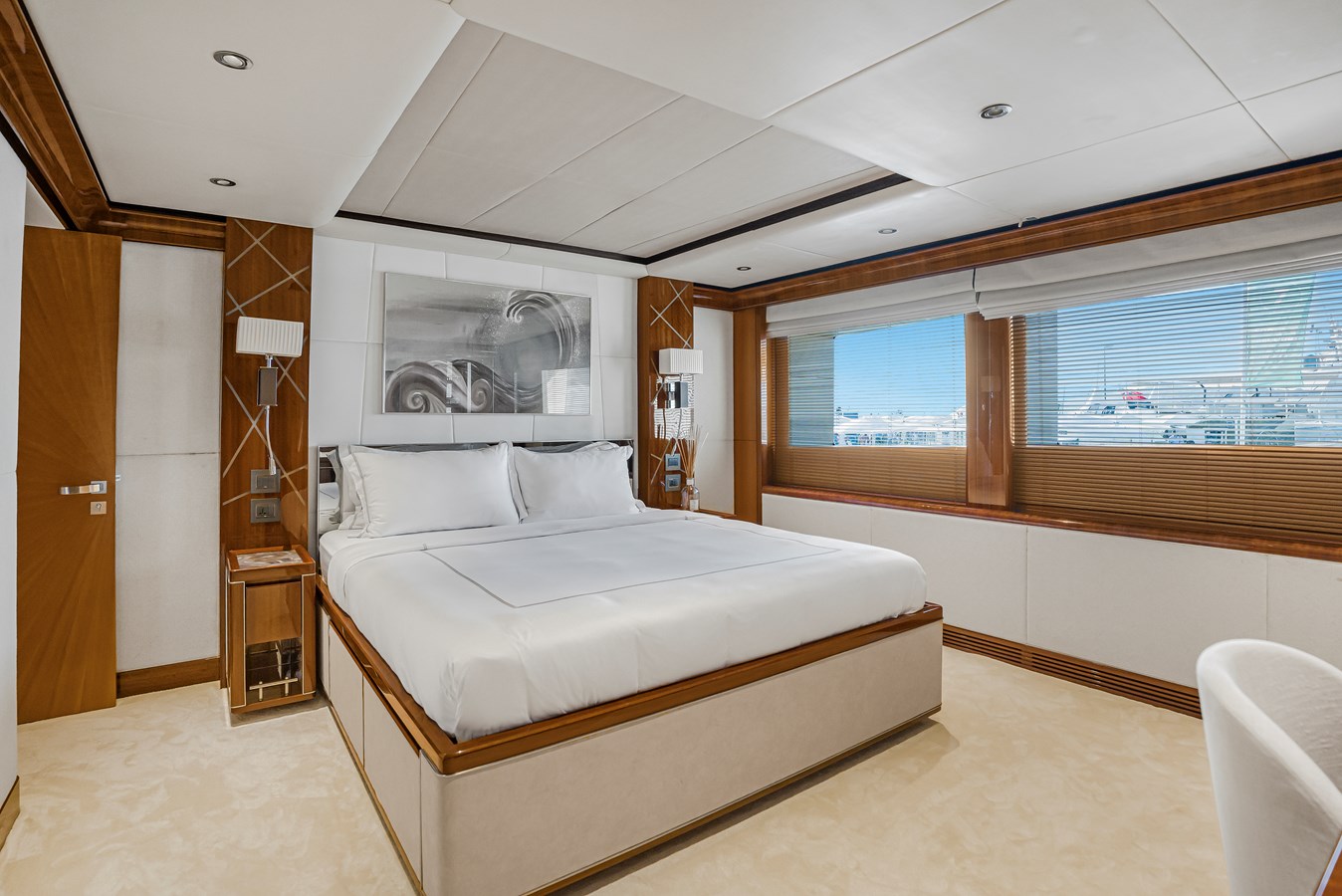

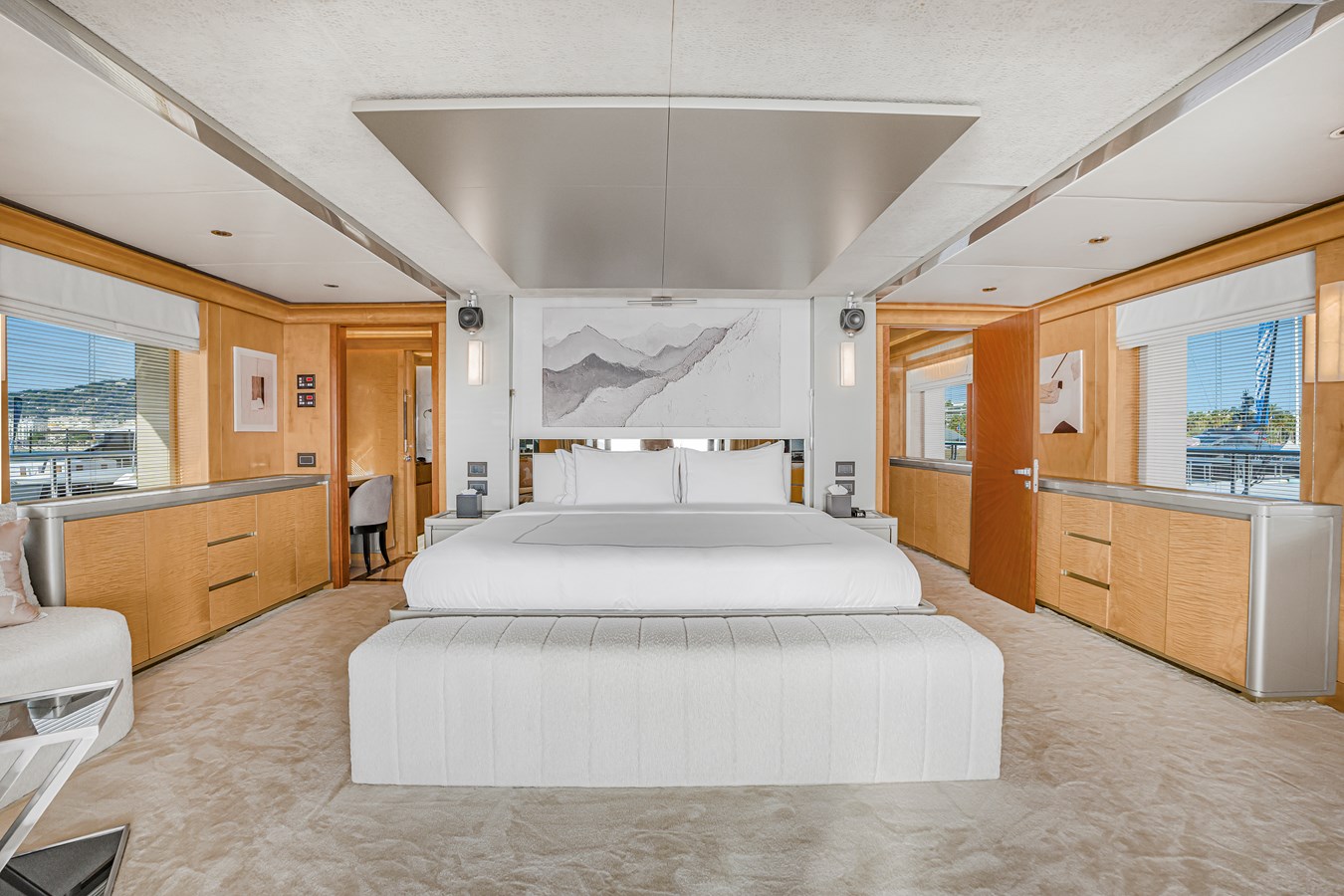

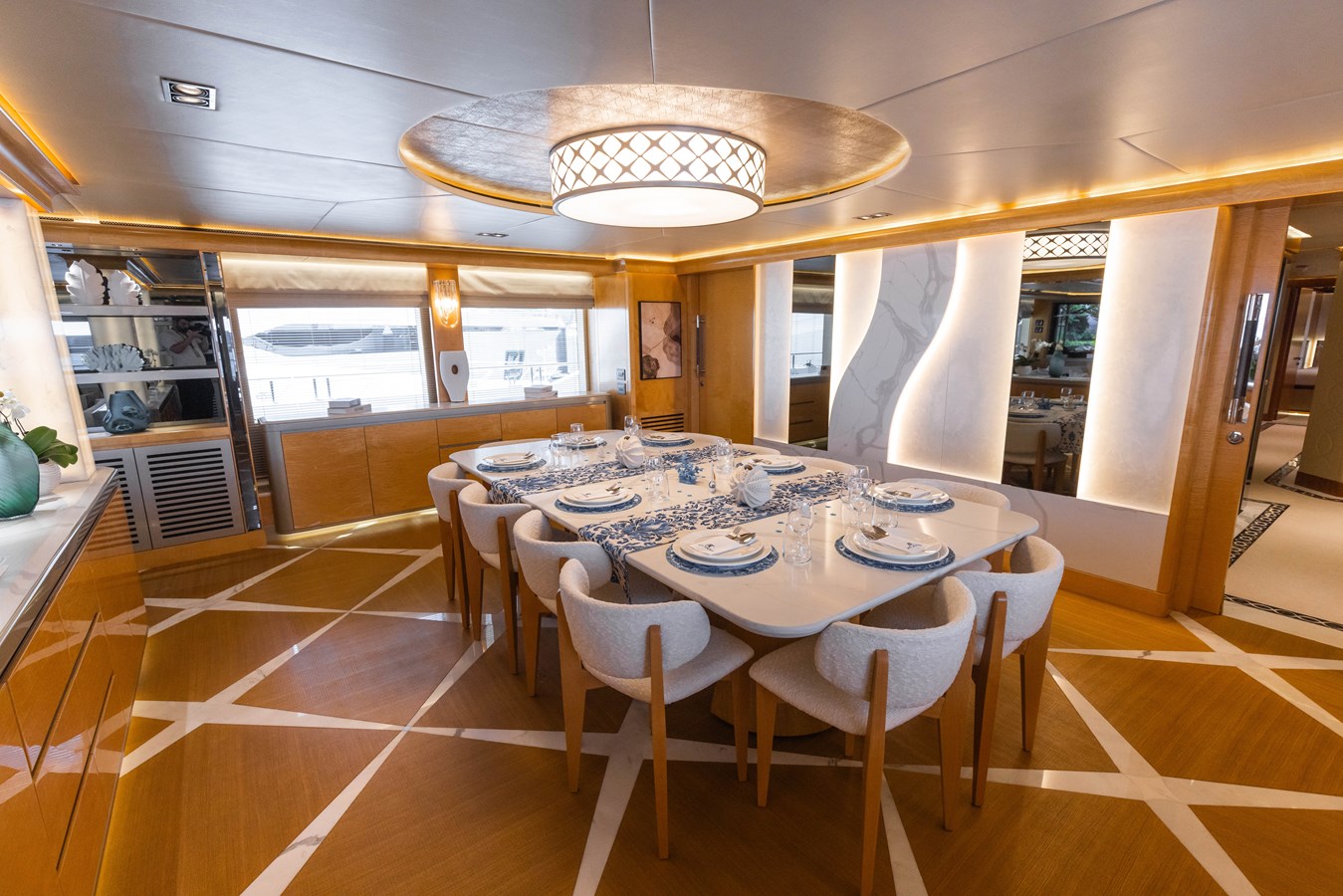

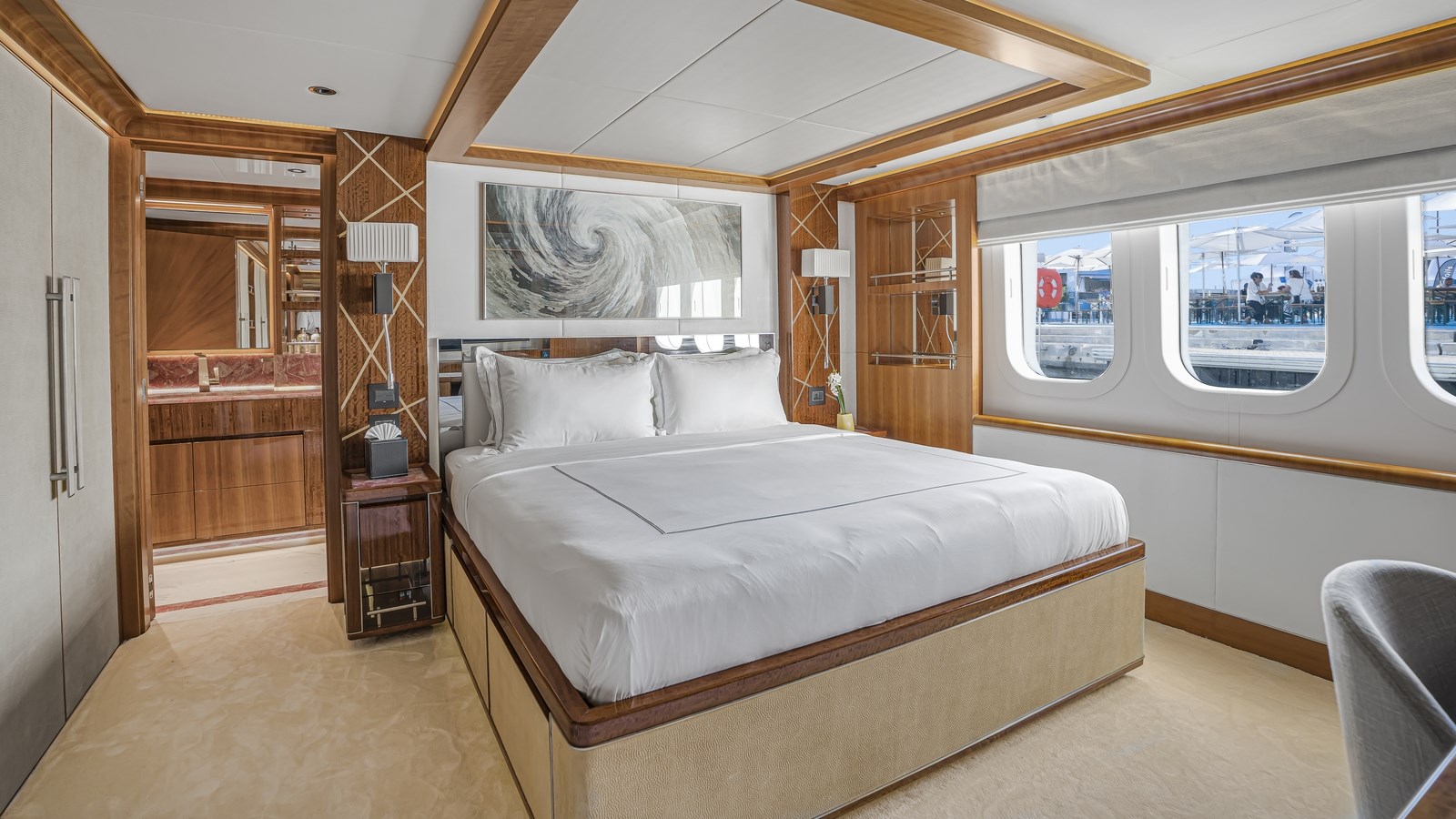

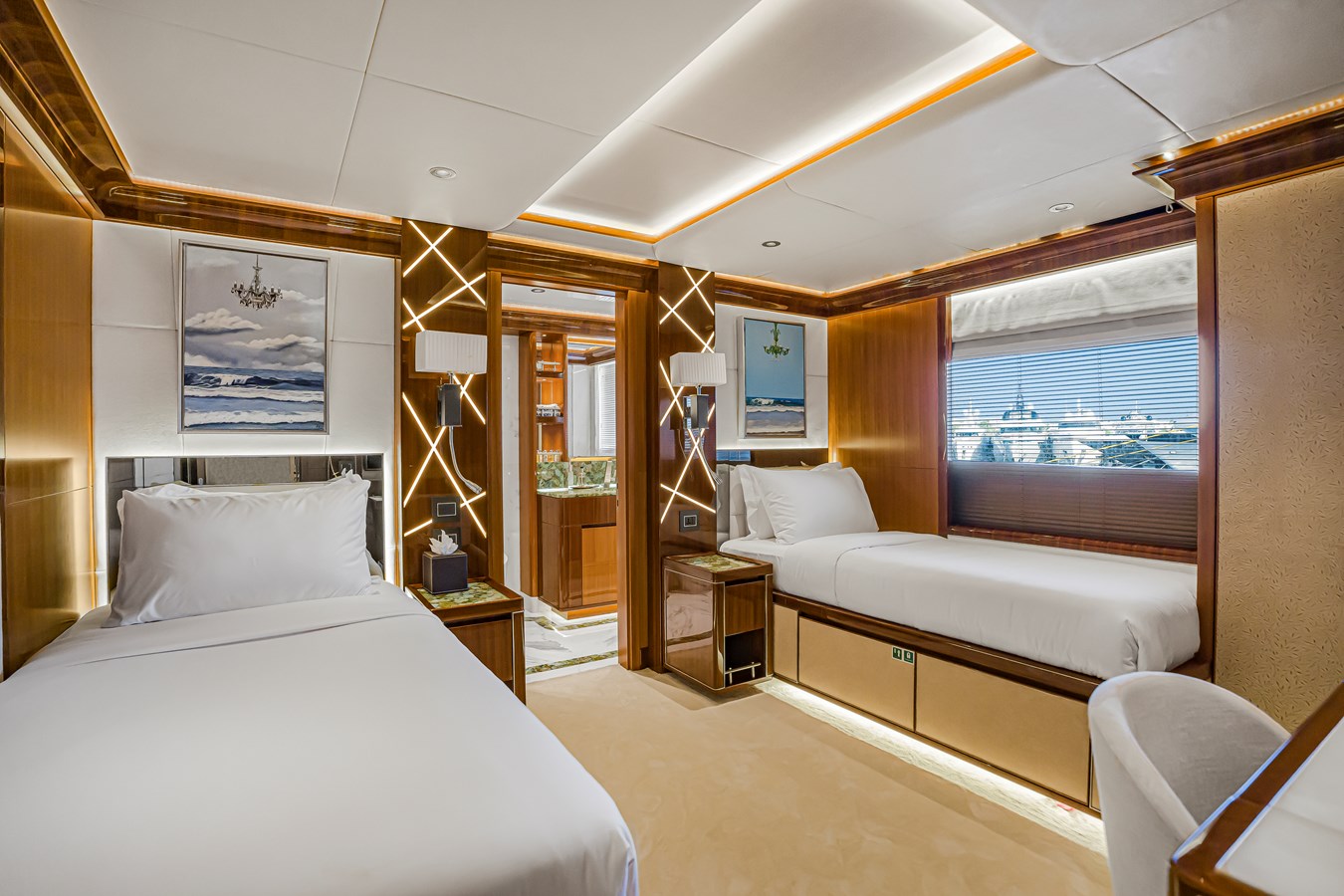

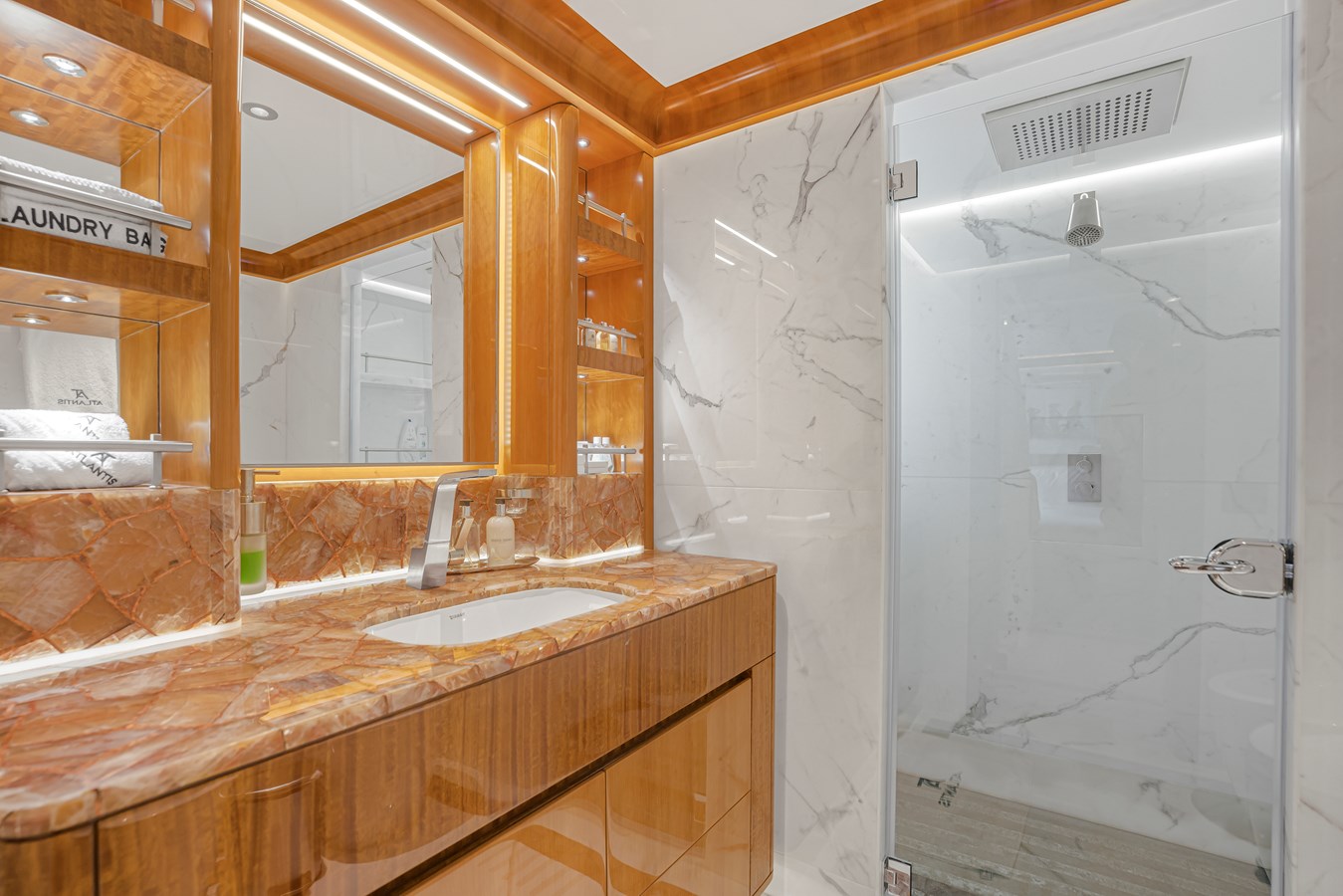

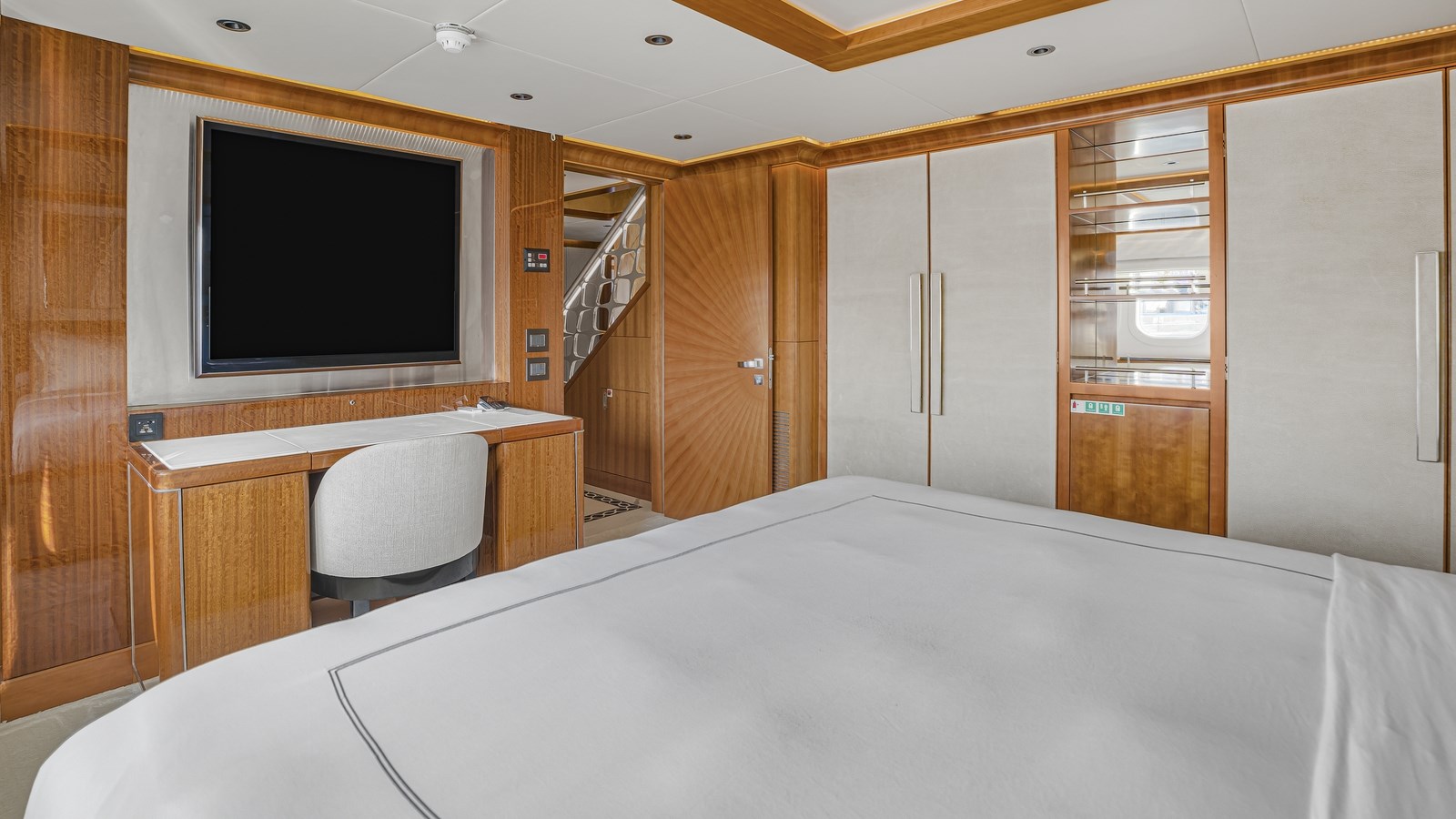

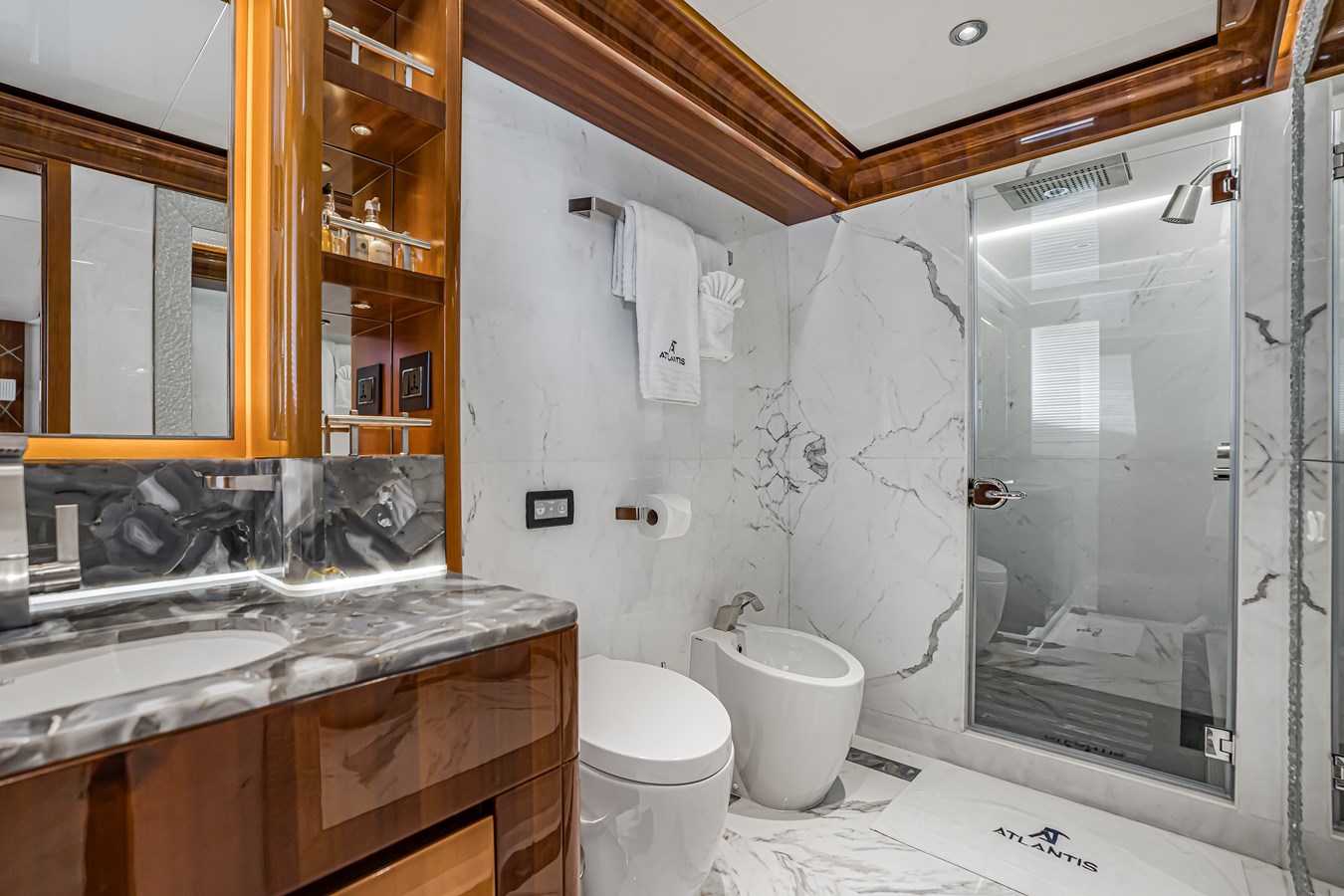

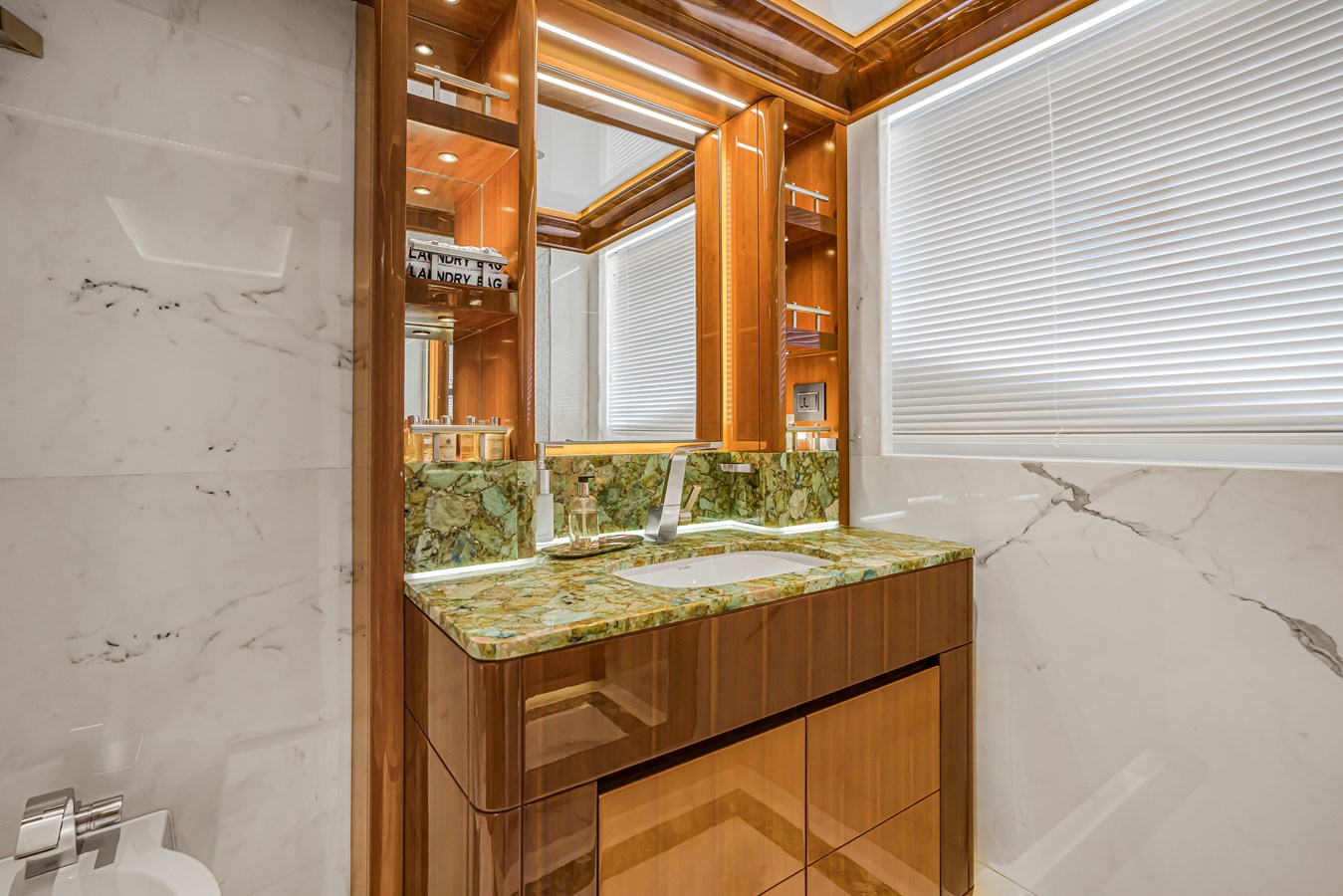

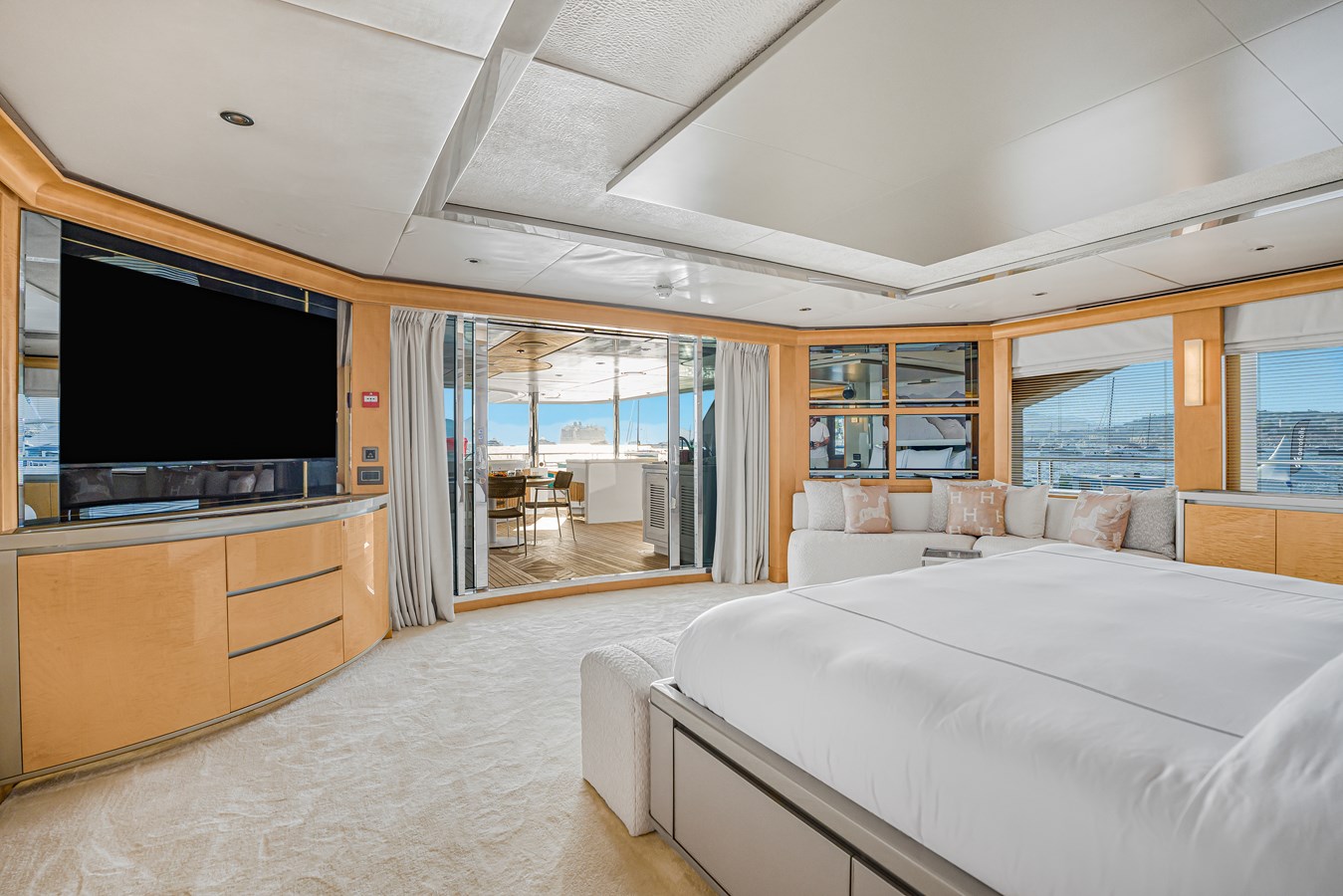

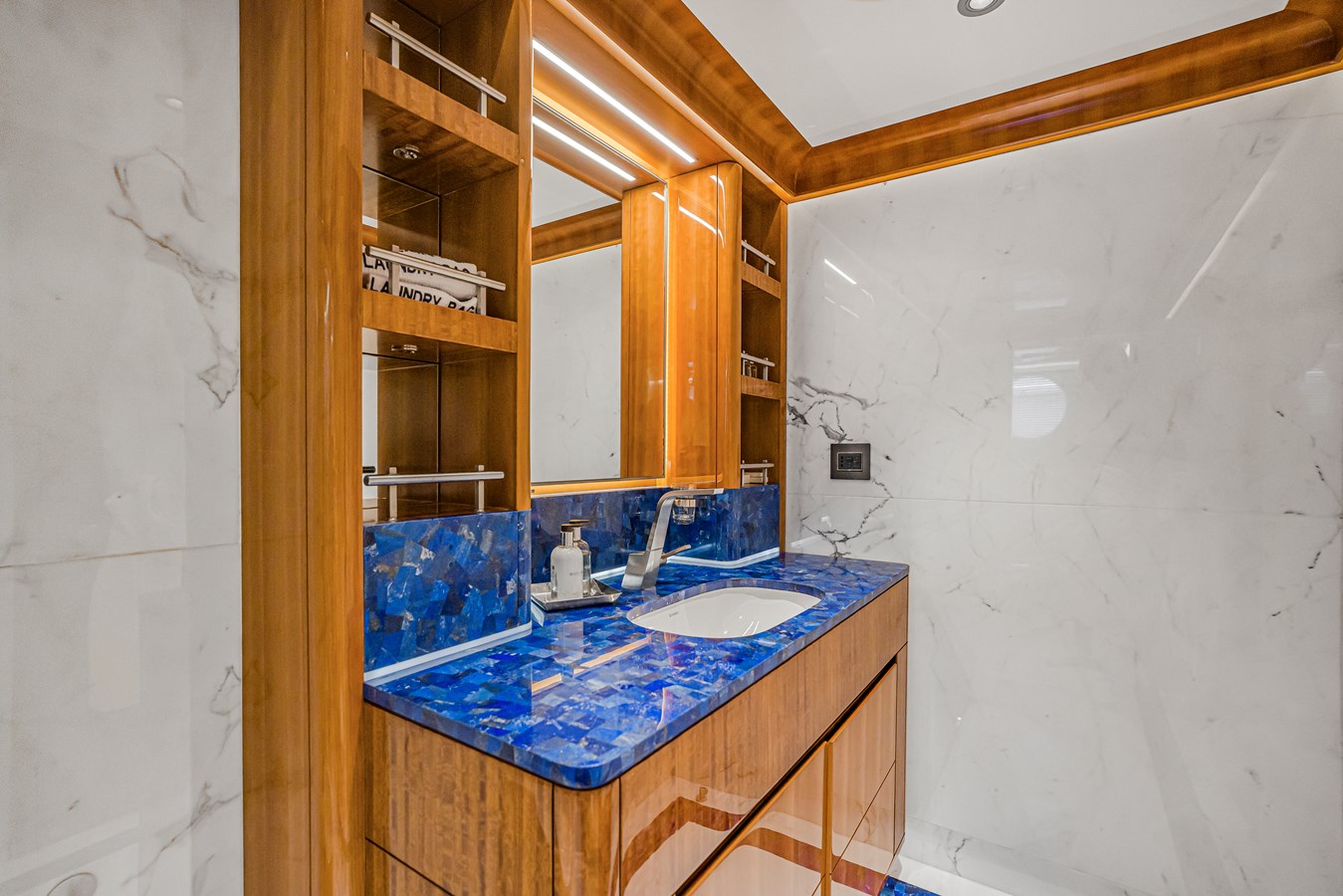

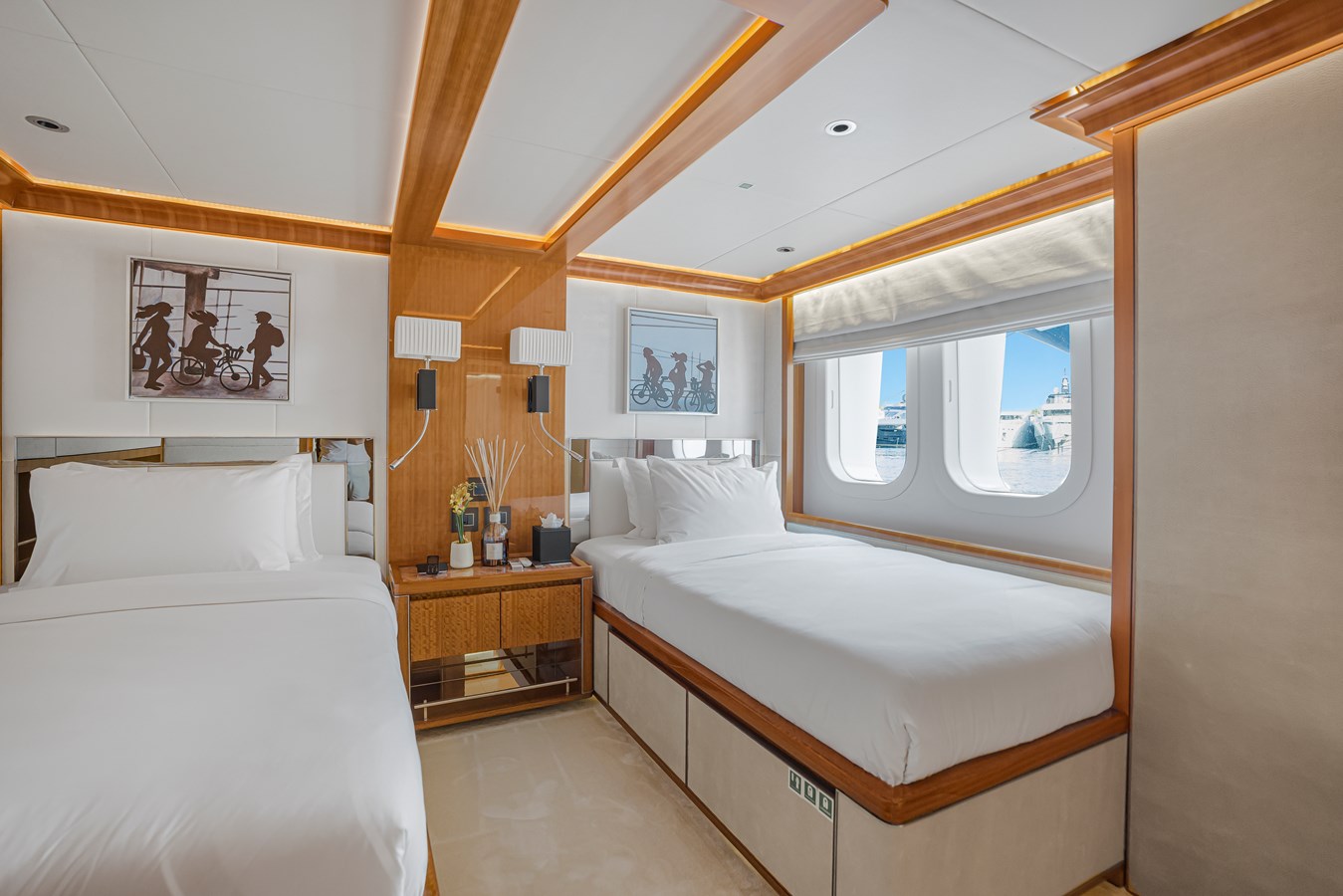

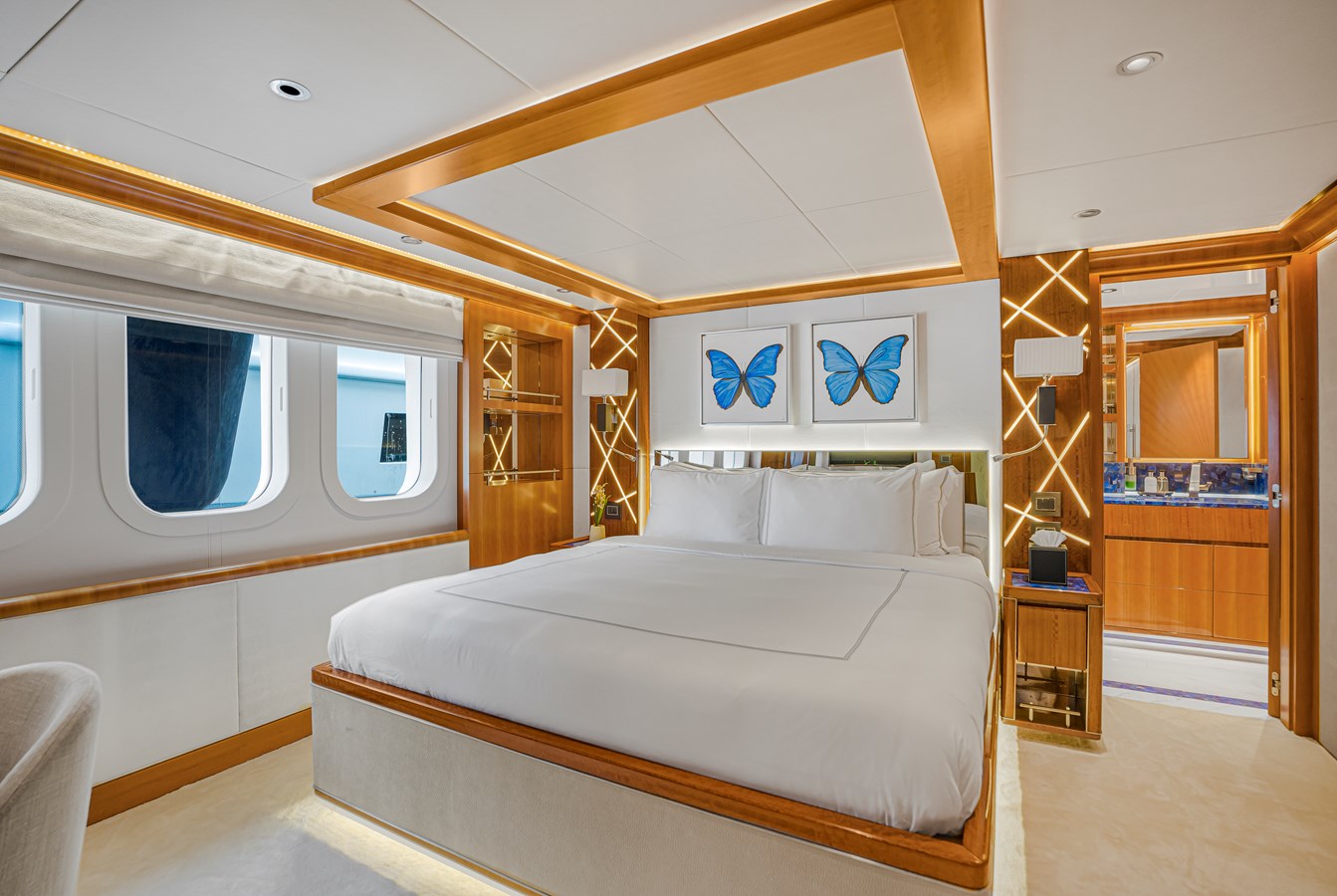

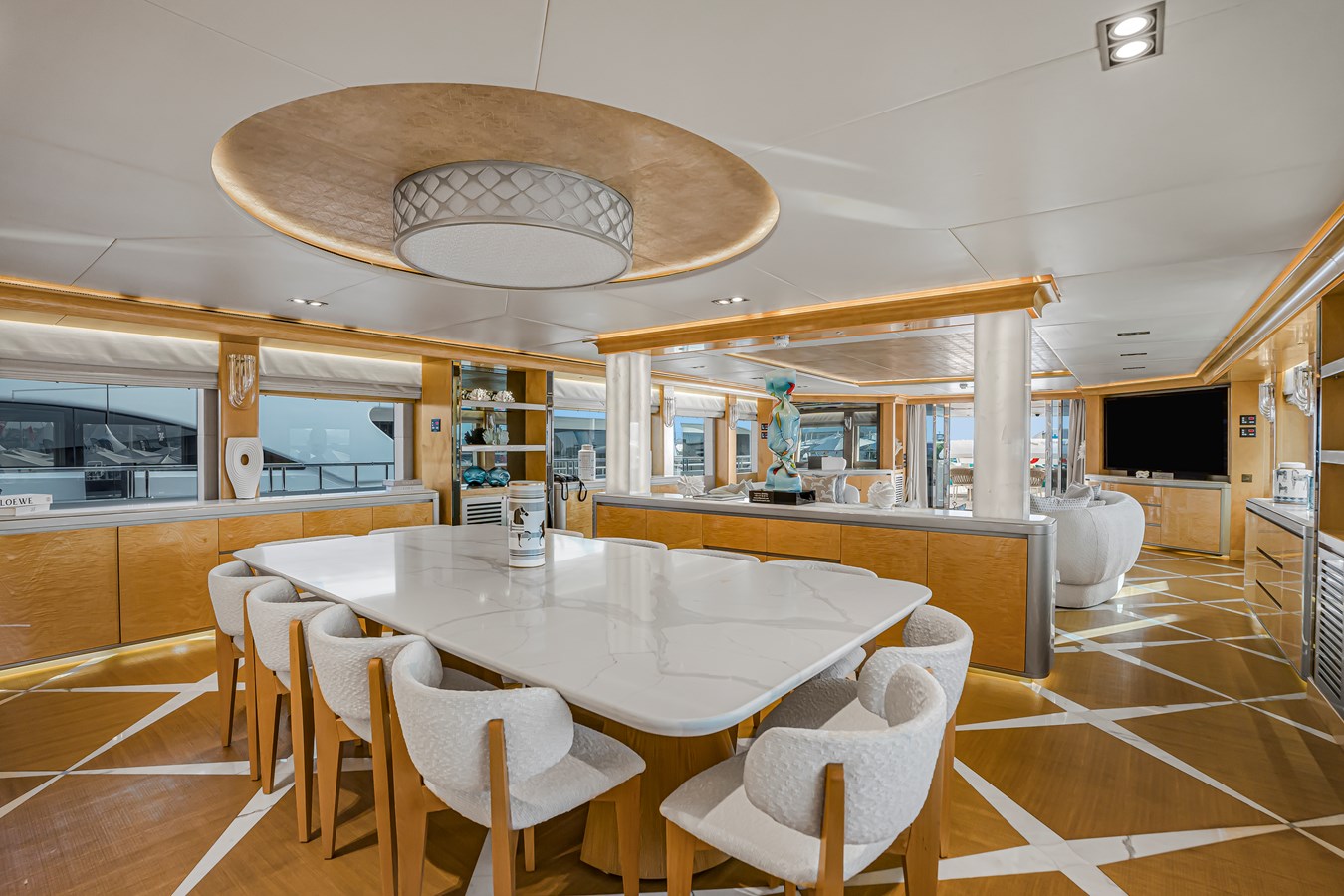

Her interior features warm wood finishes, comfortable guest accommodations, and a spacious main salon and dining area. With accommodations arranged across eight staterooms, ATLANTIS offers an impressive guest capacity that is rarely found aboard yachts in this size range.

DESCRIPTION

• ATLANTIS is a 47.6 meters, Majesty 155, built by Gulf Craft. She offers impressive volume, generous exterior decks and a highly versatile layout for private cruising or charter-oriented use.



  Designed across multiple decks, she combines strong deck volume with practical operation. ATLANTIS provides excellent outdoor living areas, including a spacious sundeck lounge, dining area, bar and an owner’s Jacuzzi. Her exterior spaces are particularly well suited for entertaining, relaxing at anchor, or enjoying long days on board with family and guests.



  Her interior offers warm wood finishes, comfortable guest accommodation and a welcoming main saloon and dining area. With accommodation arranged across 8 stataerooms, ATLANTIS is an attractive option for an owner looking for a yacht with rare guest capacity in this size range.

Dimensions

•                    General

        Length Overall (L.O.A.): 156.18 feet (47.6 meters)

        Beam (molded): 31.06 feet  (  9.6 meters)

  Draft (loaded): 6.89 feet (  2.1 meters)

        Tonnage: 525 gross

        Net Tonnage: 158 net



  Capacities

        Fuel Capacity: 14,460 US Gallons (54,730 liters)

  Water Capacity: 1,904 US Gallons ( 7,206 liters)

        Watermakers: 1,800 US Gallons per hour

        Black Water: 551 US Gallons (  2,085 liters)

  Gray Water:   1,885 US Gallons  (  7,134 liters)



   Speed

  Maximum:  17.5 knots

  Cruising:  14.0 knots

MACHINERY

• Main Engines

  Engine Type: (2) MTU 12V 4000 M63 diesels @ 2012 hp each

  Engine Hours: 1,300 as of Auguts 10, 2026



  Generators & Electricity

  Type: (2) Kohler, 125EFOZDJ

  Output:  125Kw, 230/400V

  Emergency Generators: Northern Lights, FX332K2, 50Hz

  Output:  415V/230V 22Kw

  Inverter:   Eezel T81



  3.3 Air Conditioning

  Type: Climma Chiller System, 6 units




  3.4 Other Machinery

  Watermakers:  (3) Sea Recovery, Aqua Whisper, 1,800 Gal per hour

  Trim Tabs/Stabilizers: ABT TRAC fins

  Bow Thruster: ABT- TRAC, 24", hydraulic power- 150 hp

   Steering System: Jastram Engineering

  Fuel Separator & Filtration: AC pump, Gianneschi, ACB 331/B and DC PUMP, Gianneschi, IN 12A

  Sewage System: Tehcnicomar, ECOmar, 16, 6,000 liters/day

  Toiler System: Tecma Toilets, 24V DC, 30A

  Fresh Water System: Gianneschi, JET 518 B TE/ AC pump

                                        Gianneschi, ECOINEX 1/15 DC pump

  Bilge Water Filtration: Gianneschi, 230/400V, 7.5kw AC pump

COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

•  Communication Systems

  Broadband Comminication: Furuno, Immarsat, Felcom-500

  Satellite Phone 1: Thuraya, FDU-XT (Docking model)

  Satellite Phone 2: Iridium

  Intercom System: Zenitel, VINGTOR STENTOFON-ACM-M-D-V2

  MF/HF Radio Telephone:  Furuno, FS-2575C

  VHF:  (2) Furuno, FM8900S

  GMDSS H/H VHF:  (3) JOTRON, RT 20



  Navigation Systems

  Radar: Furuno, open array, DRS4A and Furuno, open array, DRS12A

  Gyrocompass: Raytheon Anschutz, STD-22

  GPS Compass: Furuno, SC- 30

  GPS: Furuno, GP330B

  Digital Fish finder: Furuno, DFF1

  Auto Pilot: Raytheon Anschutz, Pilot Star - D

  Navigation Displays: Furuno Navet 3D

  AIS: Furuno , Class A, FA 170

  ECDIS: Furuno, FMD-3200 BB



  Entertainment System:

  Video Equipment

                   Satellite System: KVH TV11, 2 antennas synchronized BANG & OLUFSEN

                   TV’s: (8) B&O TVs – Each stateroom

                             (3) 55” - Cockpit and Sundeck

                                    (2) Samsung – Crew Mess room and Captain’s cabin)

GALLEY & LAUNDRY EQUIPMENT

• Main Galley Equipment

  Cooking Equipment:

  (1) Miele Hob Stove

  (2) Miele ovens



  Refrigeration/Freezer:

  (2) Large refrigerators

  (1) Large wine cooler

  Icemaker:

  (1) Icemaker



  Crew Galley/Mess Equipment

  Refrigeration/Freezer:

  (1) Large built-in refrigerator / (1) Large freezer

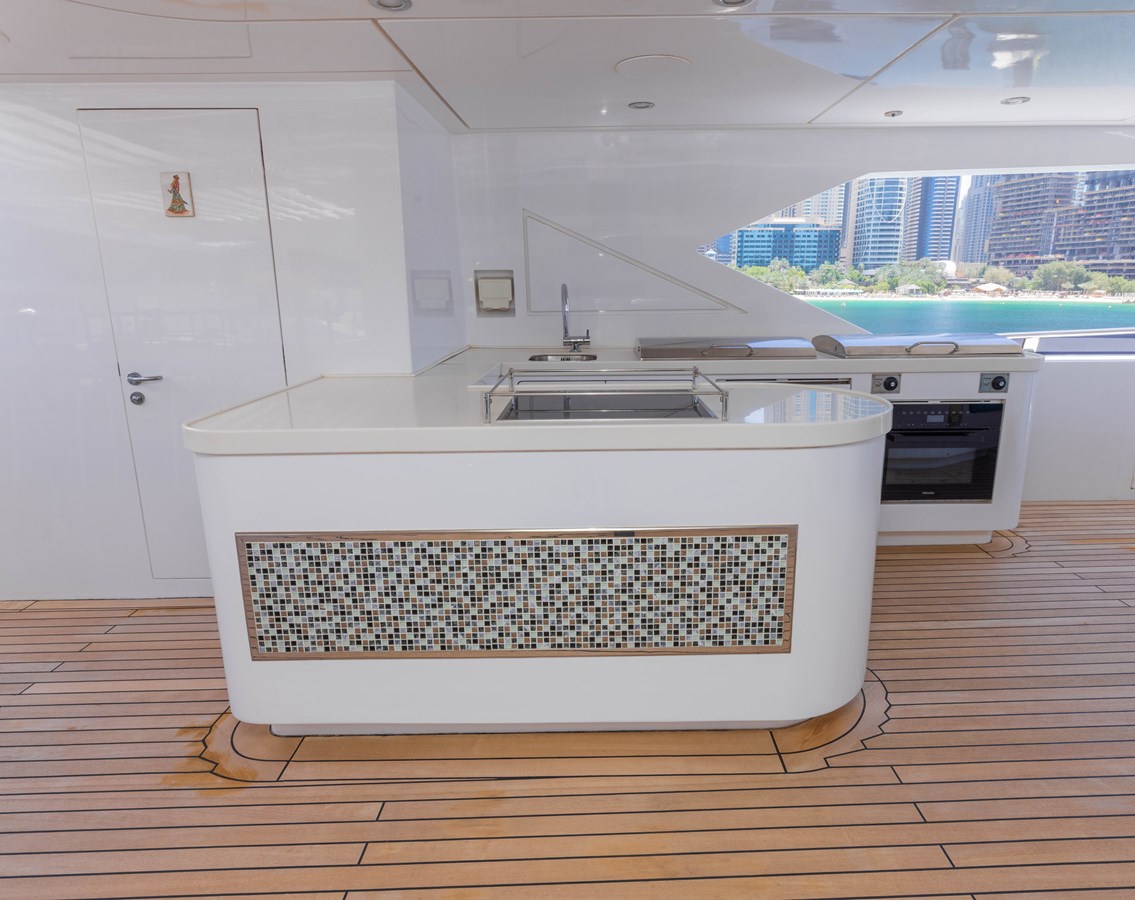

  Additional Galley Equipment

  Cooking Equipment:

  (1) Miele Hob Stove – Sun Deck

  (1) Miele oven – Sun Deck

  (2) Barbecue burners – Sun Deck

  (1) Hob stove – Lower Deck Aft Galley

  (1) Miele oven – Lower Deck Aft Galley

  (1) Barbecue - Cockpit



  Refrigeration/Freezer:

  (1) Miele double door refrigerator with freezer, Lower Deck Aft Galley

  (1) Big freezer room , forward hatch, port side

  (1) Small refrigerator – Sun Deck

  (1) Small wine cooler – Sun Deck

  (1) Small refrigerator – Owner’s Stateroom Lobby

  (1) Small wine cooler – Owner’s Stateroom Lobby

  (1) Small fridge – Cockpit



  Icemaker:

  (1) Icemaker – Sun Deck

  (1) Icemaker – Cockpit

  Dishwasher:

  (1) Miele dishwasher – Sun Deck



  Laundry Equipment

        Main Laundry Equipment

        (2) Washing Machines: Miele Professional, PW 6065 – VARIO

        (2) Dryer Machines: Miele Professional, PT 7135C -VARIO

TENDERS & TOYS

• Tenders:

  (1) Castoldi Diesel Jet Tender 17, 9 passengers, max 810 kgs.



  Other:

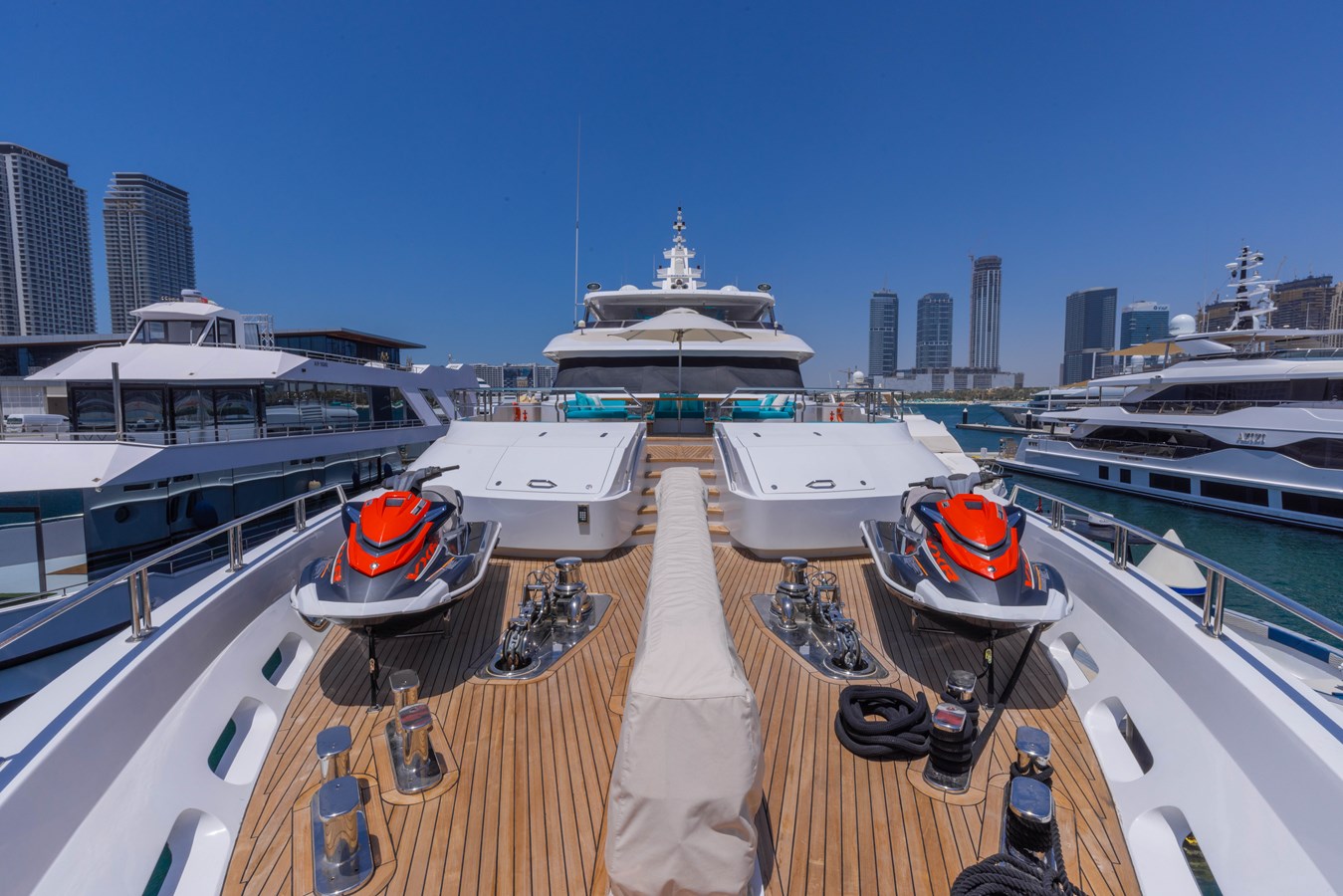

  (2) Yamaha jet skis, VX1800A-S 180 Hp

Deck Equipment

• Anchor Windlass System: Maxwell, VRC8000, vertical, hydraulic drive

  Aft Warping Capstans: SINGLE SPEED, 24V DC

  Anchor: HHP ANCHOR, POOL W, Weight -230Kg

  Anchor Chain: 220 meters, diameter 19 mm, grade U-2

  Boat Crane and Davits: Opacmare, telescopic for launching jet skis –  Bow

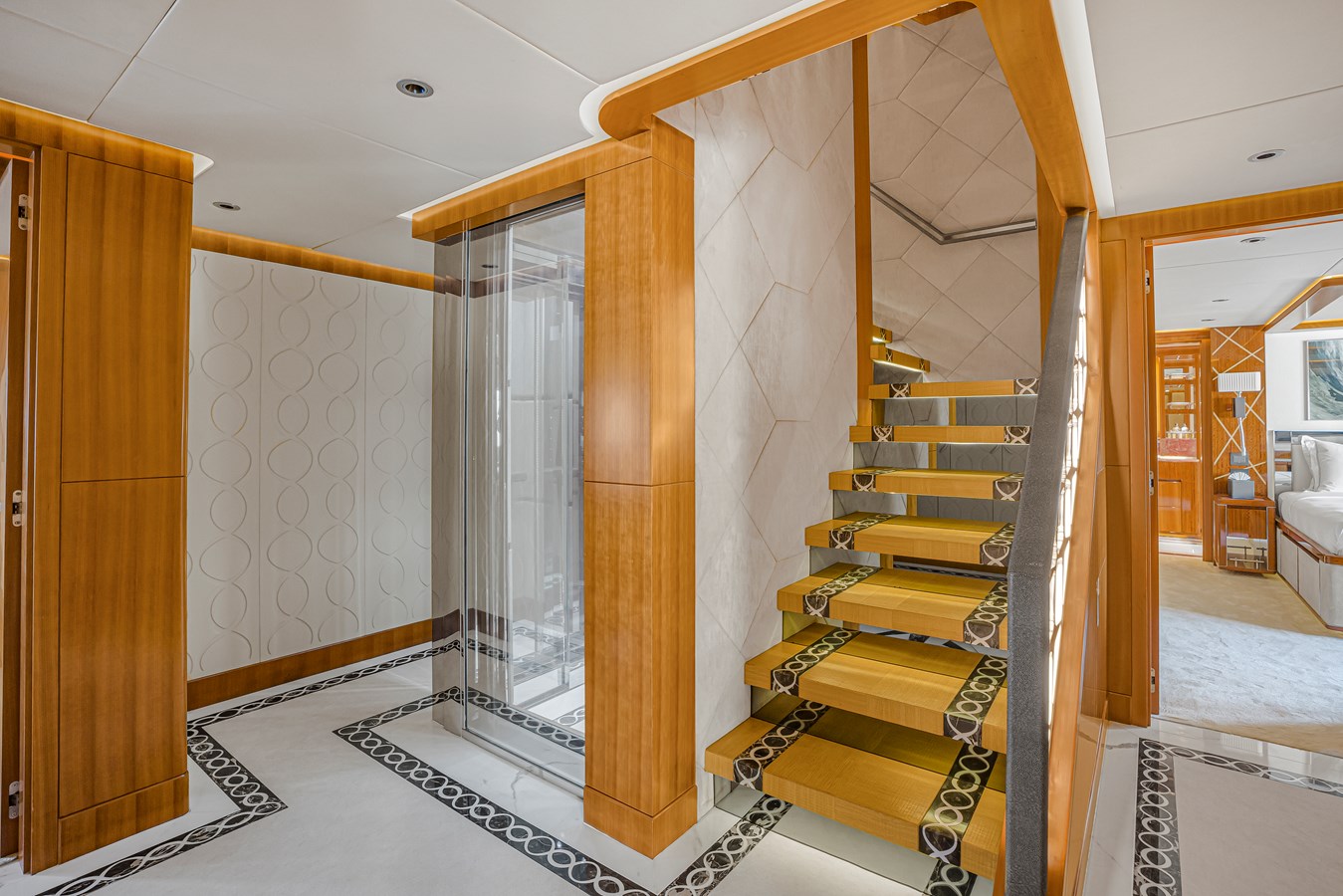

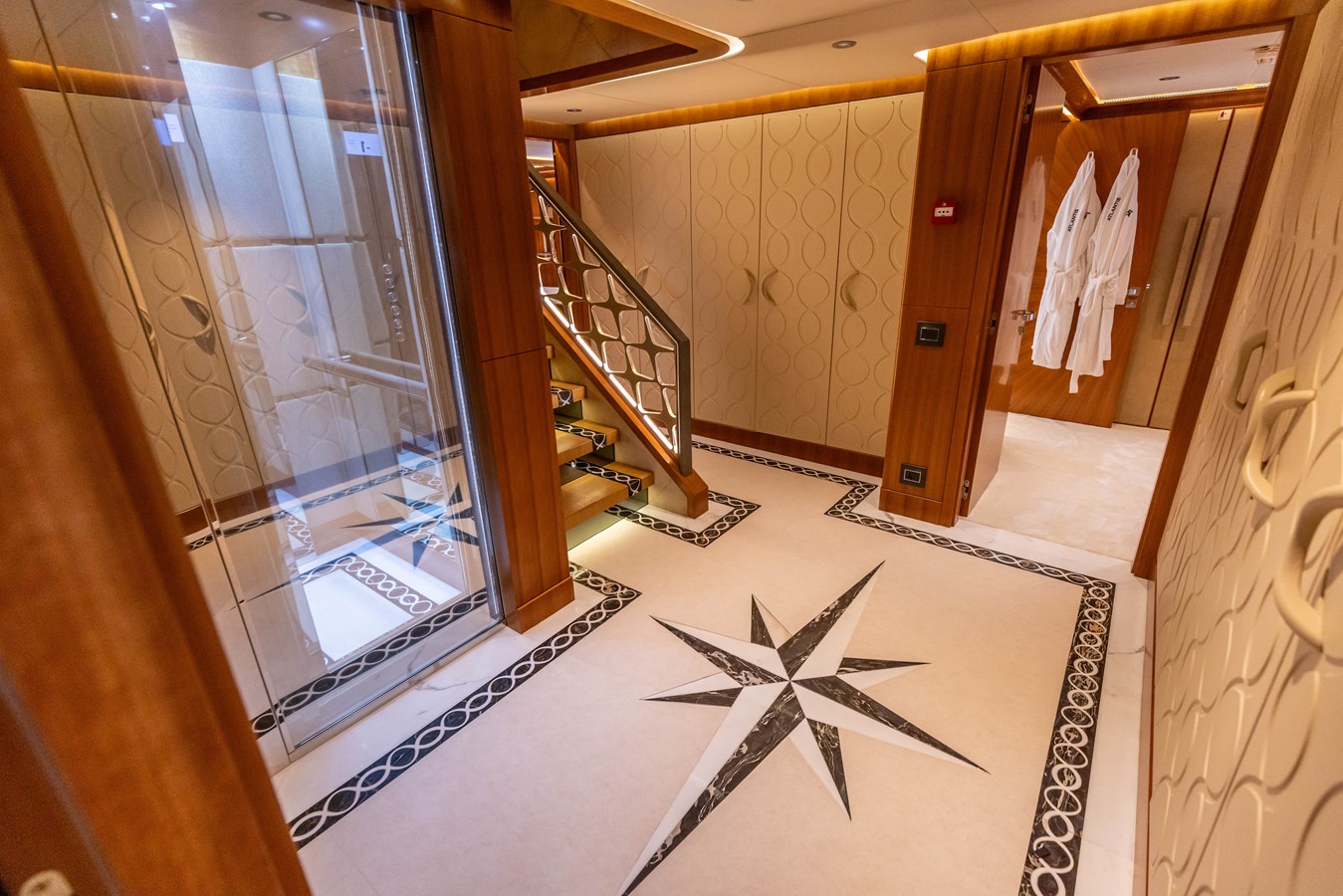

  Elevators:  (1) Besenzoni for 4 people, from Lower Deck to Bridge Deck

                      (1) Single man elevator, from Main Deck to Sun Deck



SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT

• Fire Fighting Equipment

  Fire Extinguishers: (38) Nos. Updated on July 27, 2024



  Safety Equipment

  Life Rafts: (6) Life rafts, each 10 people capacity

  Life Rings: (4) Life rings with lights

                     (2) Life rings with rescue line

                     (2) Life rings without rescue line

  Life Jackets: (48) Inflatable, updated on August 22, 2024

  EPIRBS: (1) Jotron, Tron 60 GPS, Serial No. 20442,  valid till August 2027

  EEDB: (4) Sets, updated on July 27, 2024

  SART: (2) Jotron, Tron SART 20, Valid till August 2027

  Medical Equipment: (2) Sets of breathing machines



Accommodations

• ATLANTIS is a 47.6m (156') Majesty 155 built by Gulf Craft, offering impressive volume, expansive exterior decks, and a highly versatile layout ideally suited for private cruising or charter use.

  Designed across multiple decks, ATLANTIS provides exceptional outdoor living and entertaining spaces, including a spacious sundeck lounge, dining area, bar, and owner’s Jacuzzi. Her generous deck areas are equally suited for entertaining guests, relaxing at anchor, or enjoying extended time on board with family and friends.

        Her interior features warm wood finishes, comfortable guest accommodations, and a spacious main salon and dining area.            With accommodations arranged across eight staterooms, ATLANTIS offers an impressive guest capacity that is rarely found             aboard yachts in this size range.
