AVALINA
130 | WESTPORT |2003

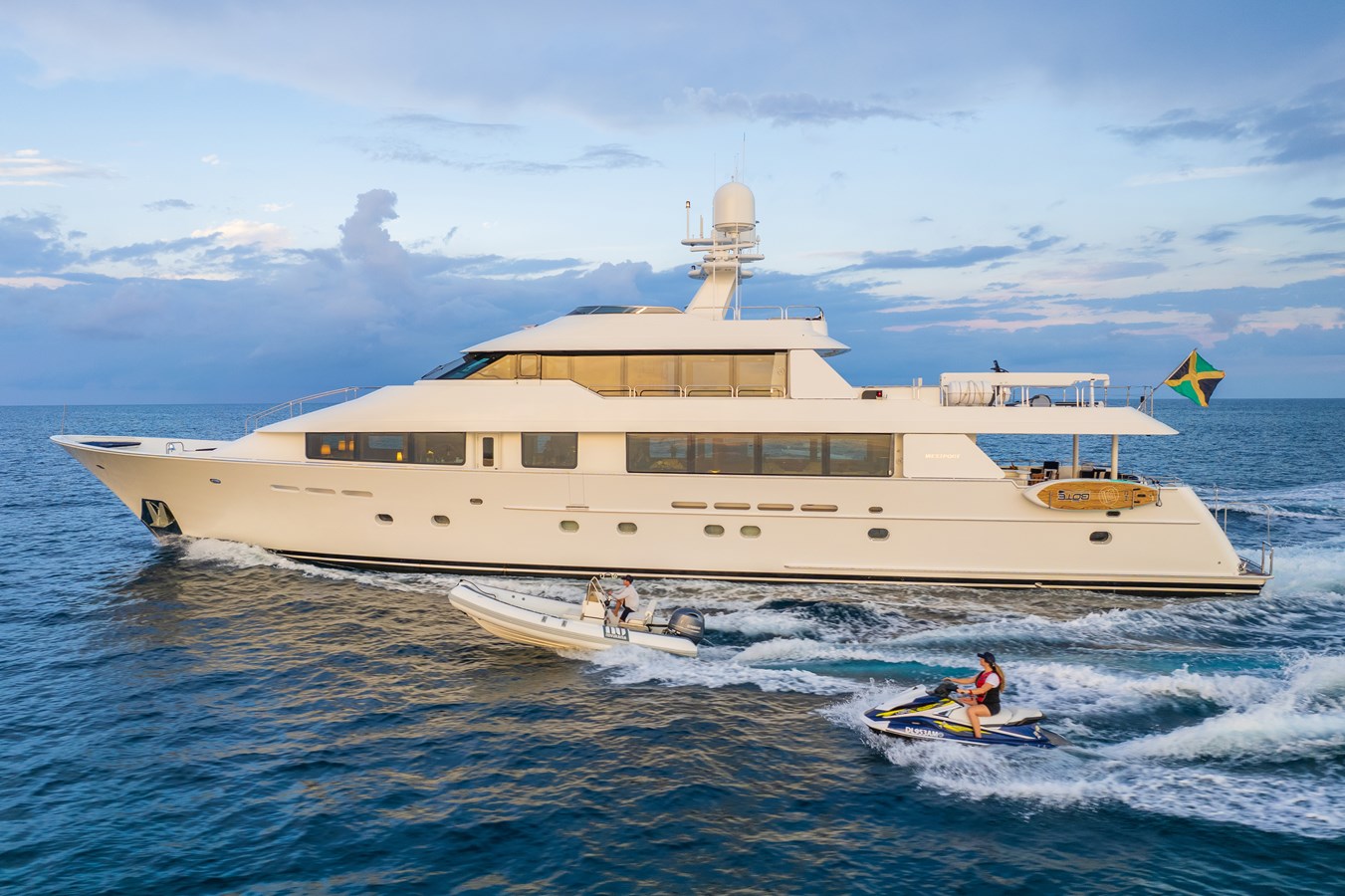

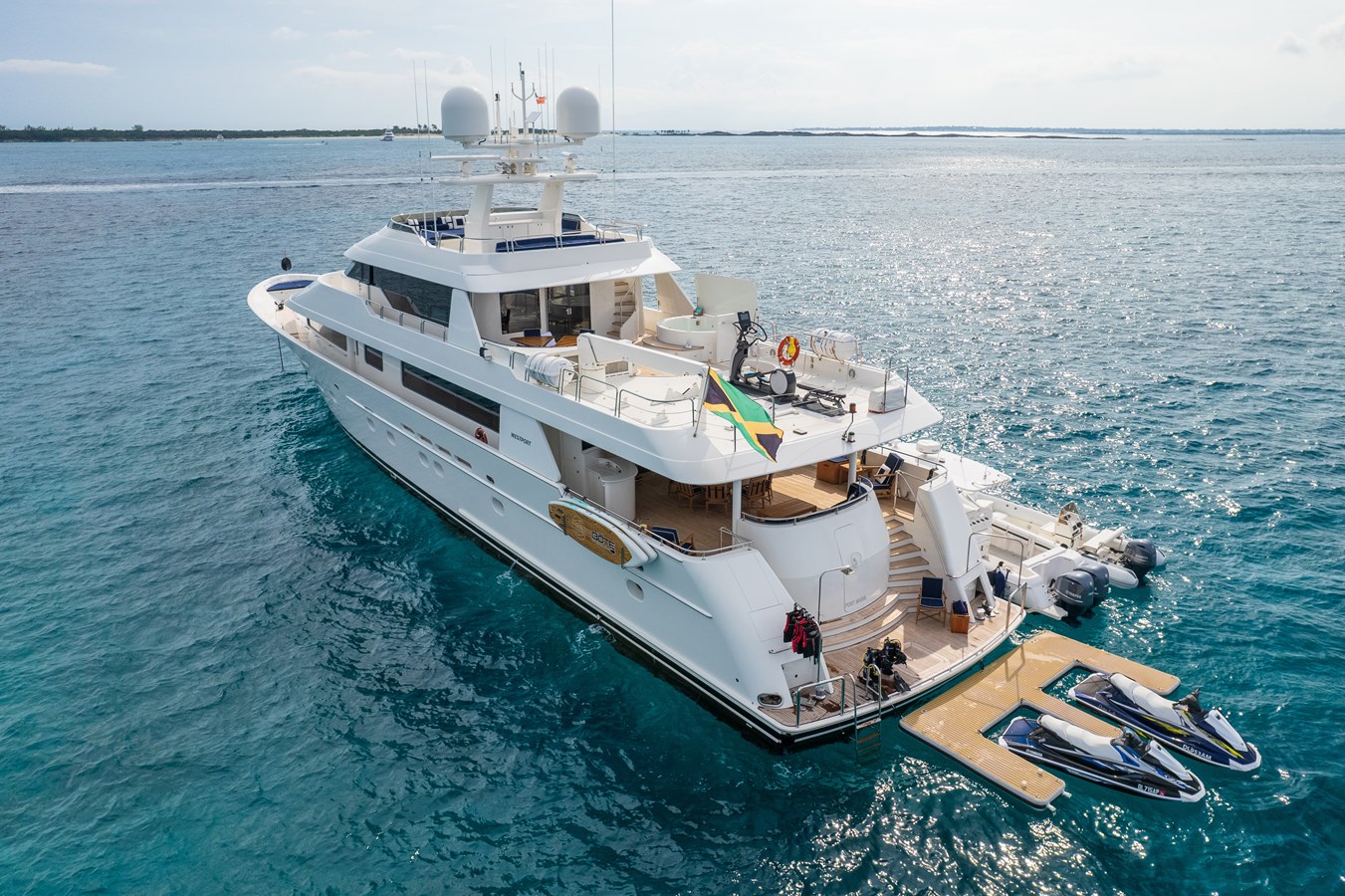

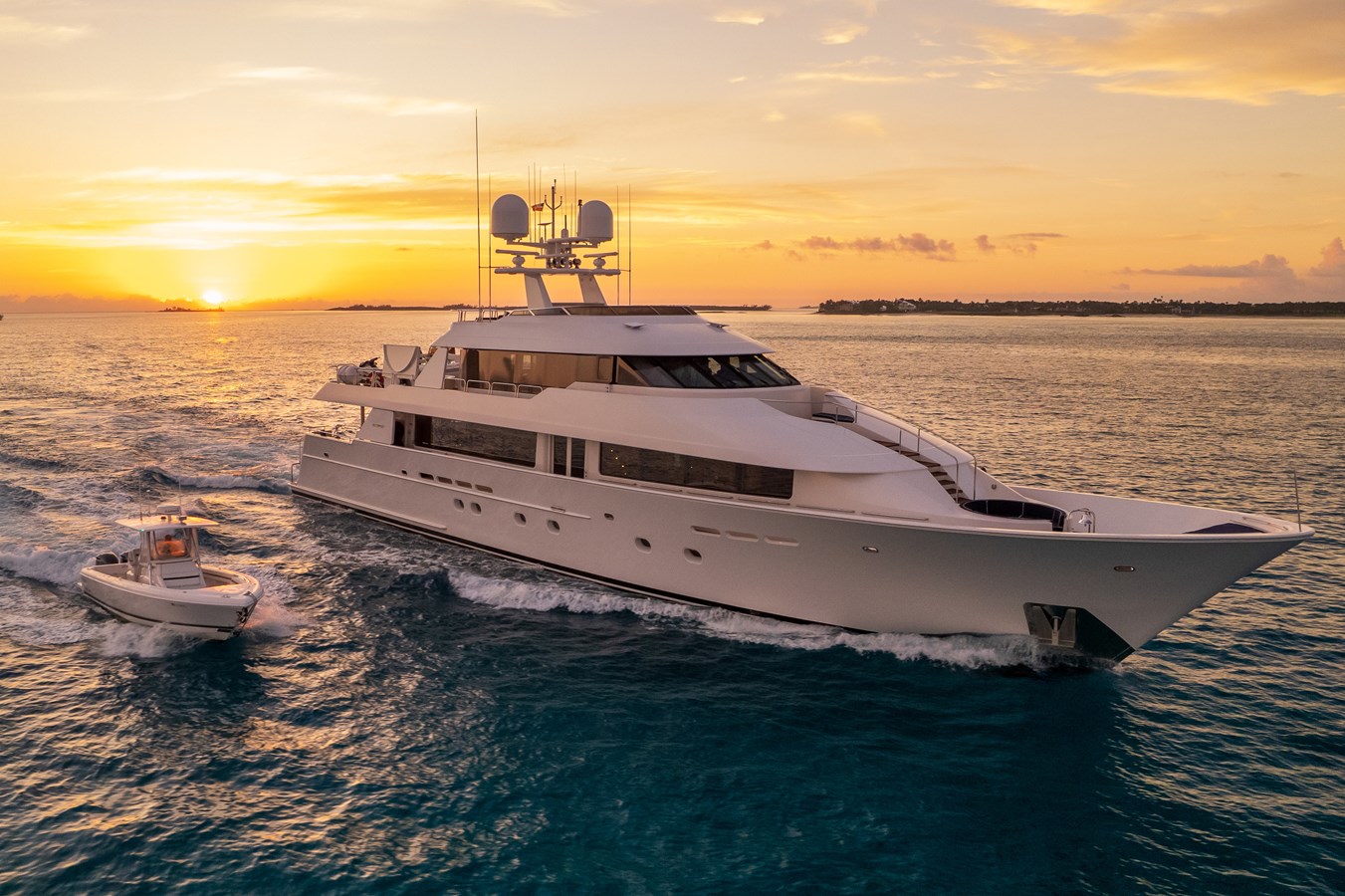

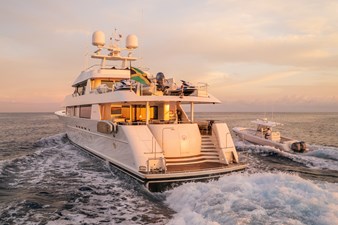

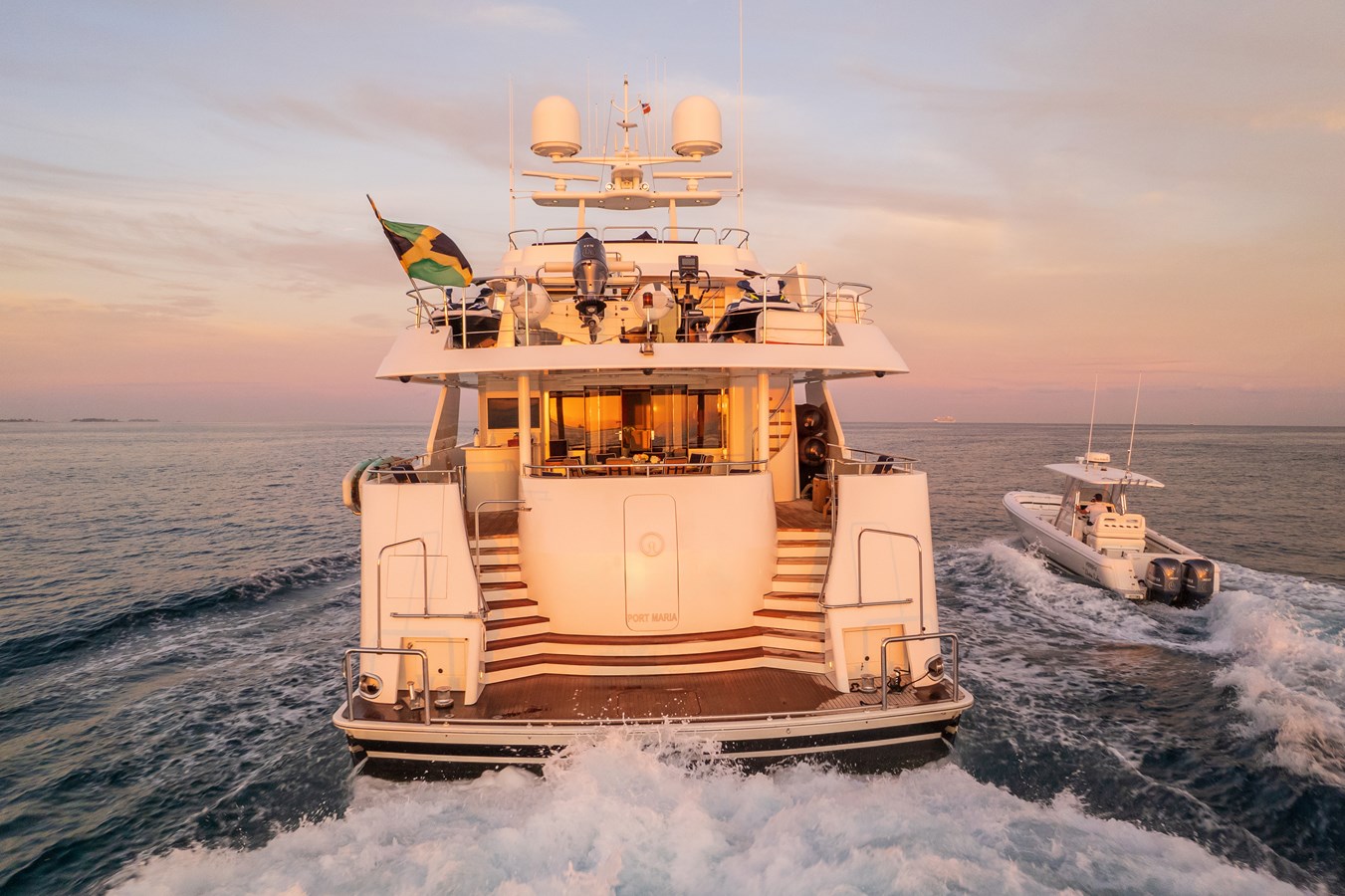

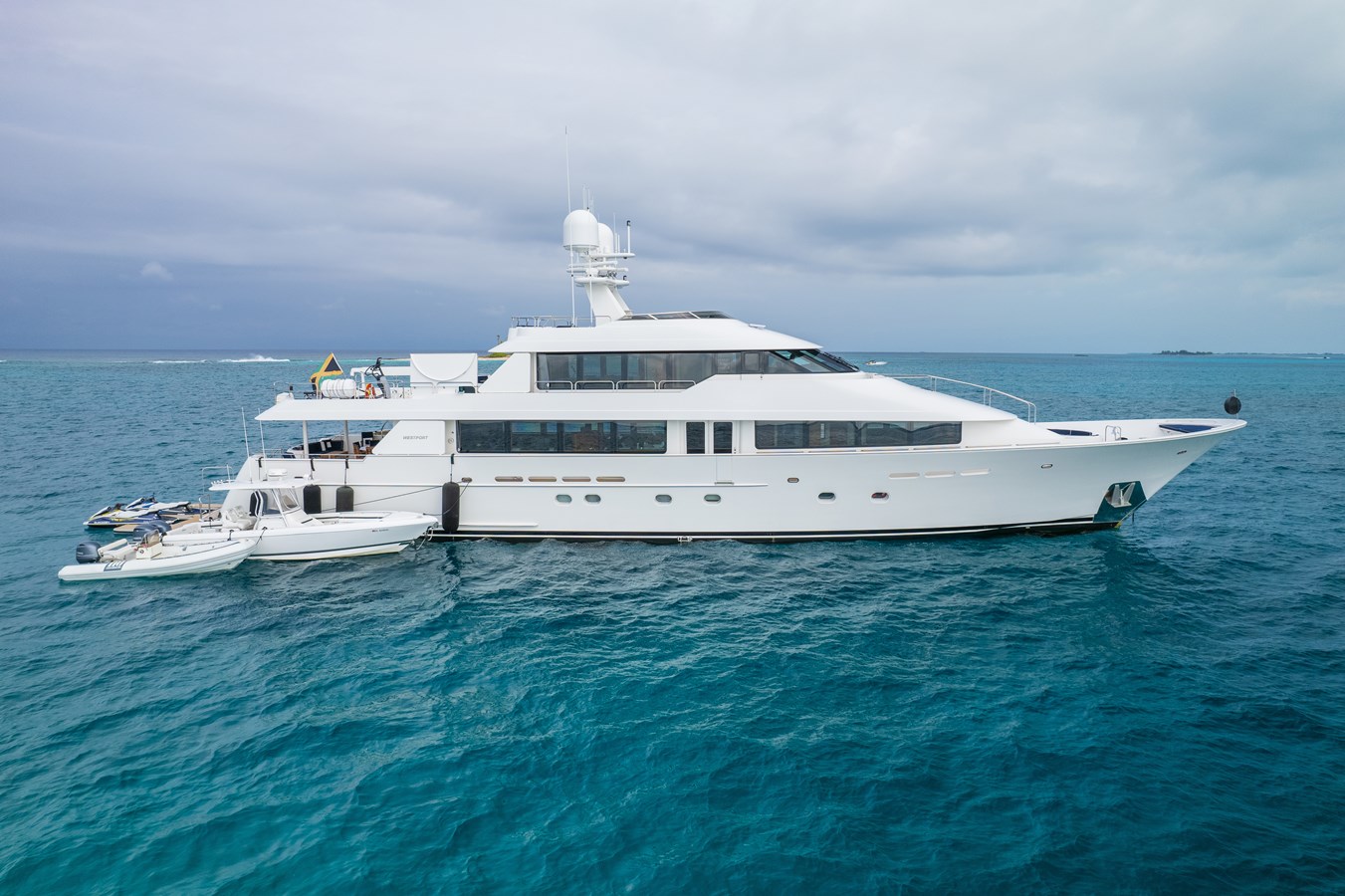

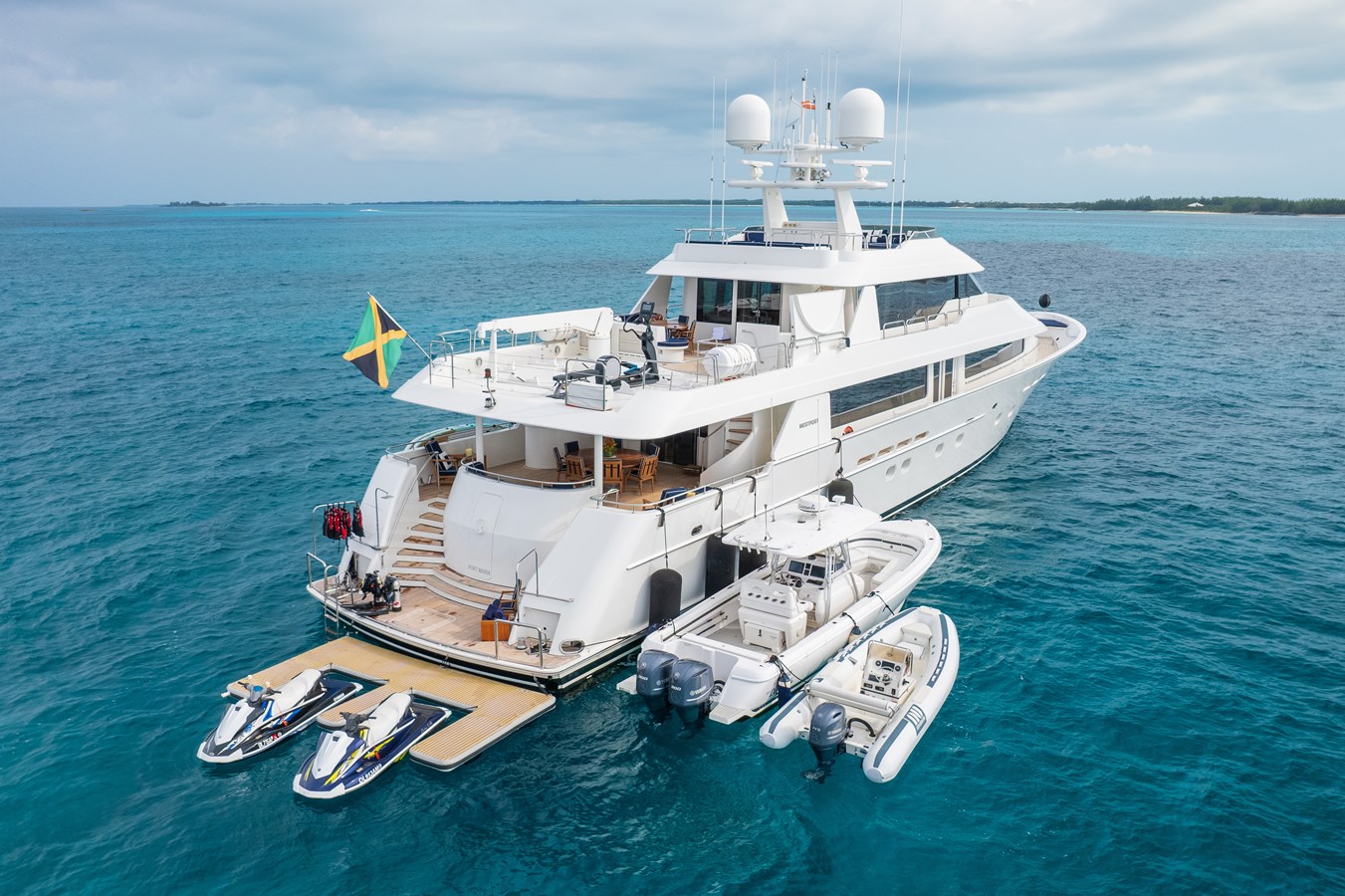

AVALINA is a 130’ Westport (2003 / 2020) that has recently completed a shipyard period, receiving numerous upgrades including freshly sanded teak decks, a full exterior wax, new galley equipment, a water filtration system, MTU engine servicing, stabilizer servicing, and more. A detailed list of works is available upon request.

AVALINA received a full exterior repaint and engine overhaul in 2019, a comprehensive refit in 2020, and generator rebuilds in 2023.

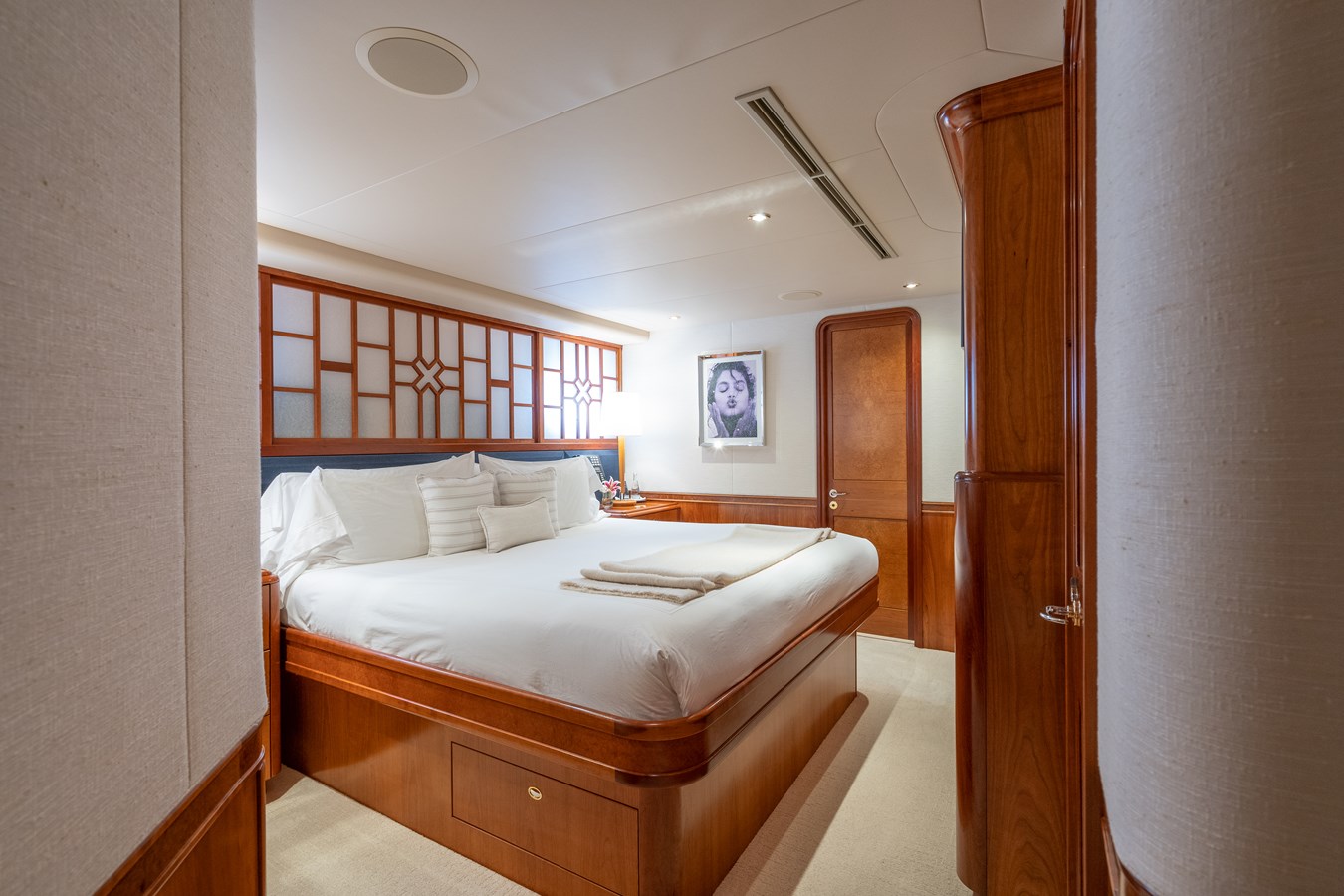

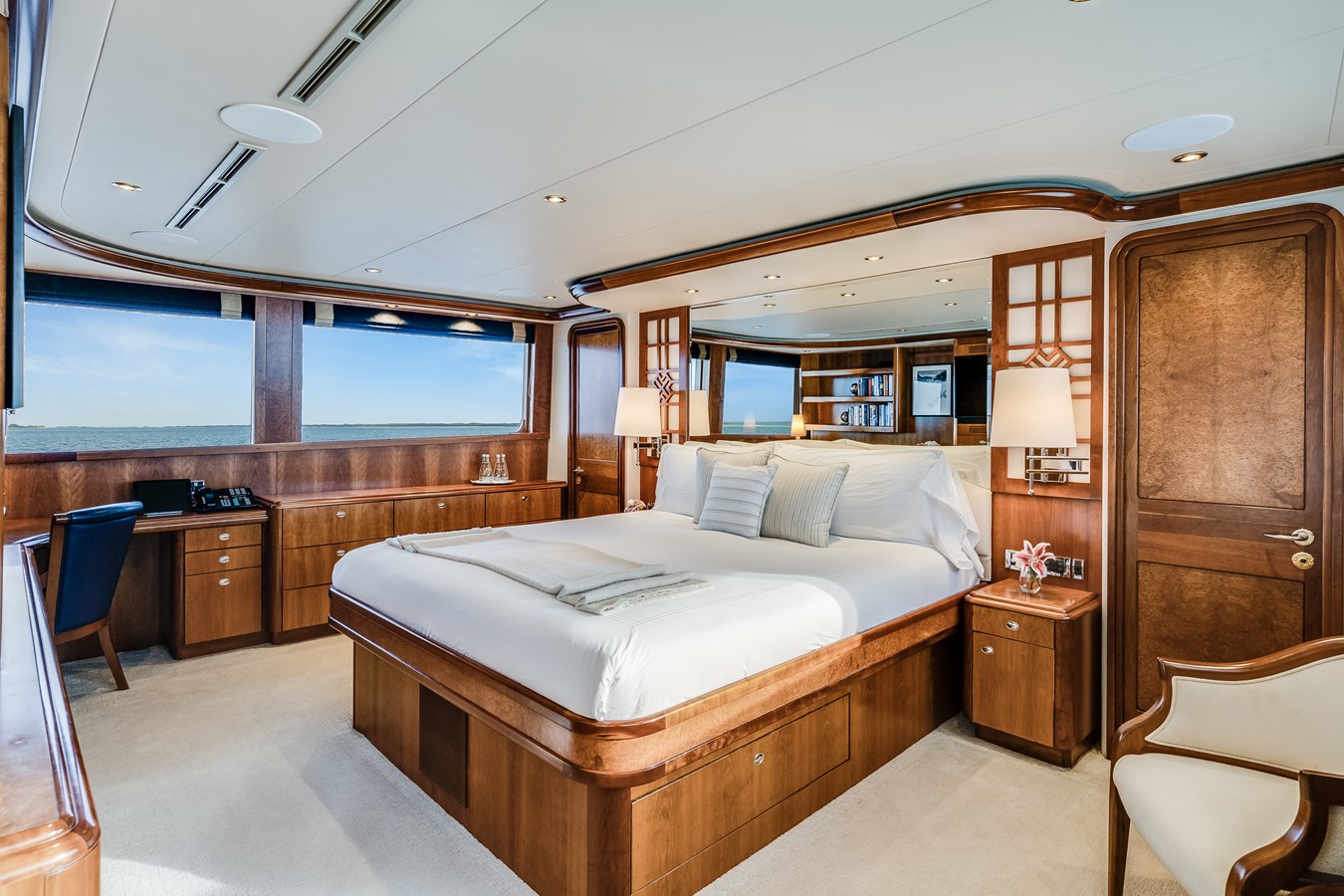

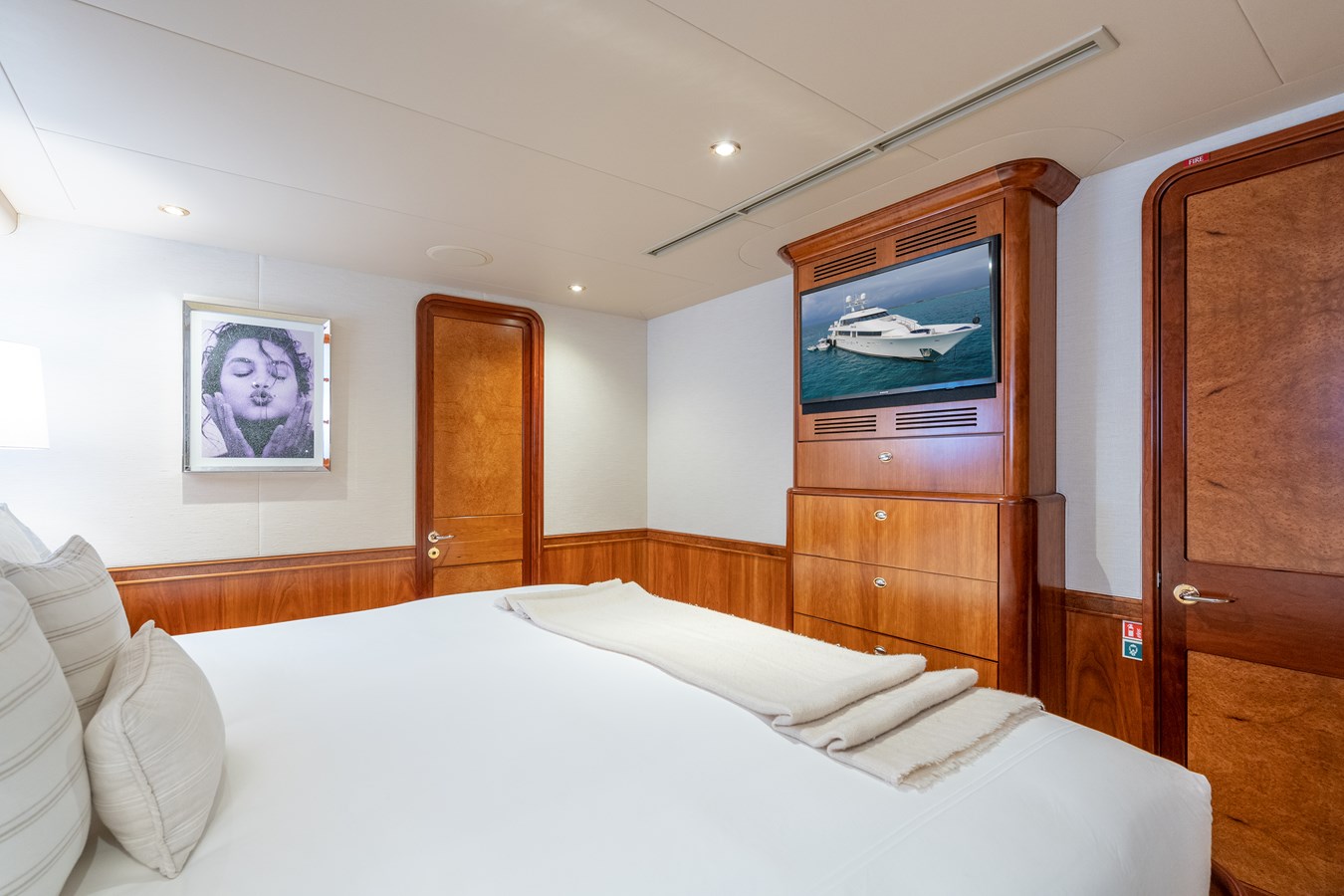

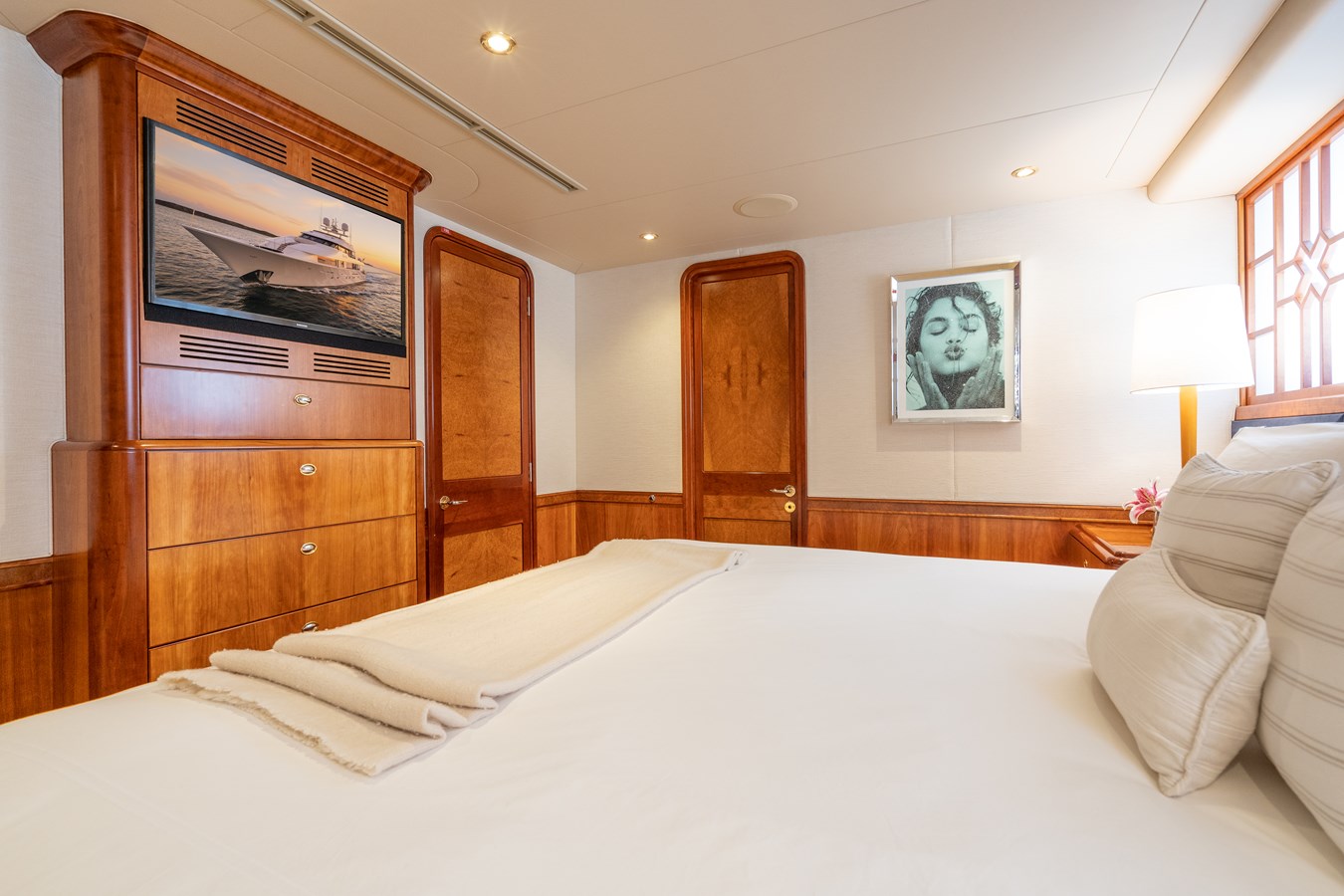

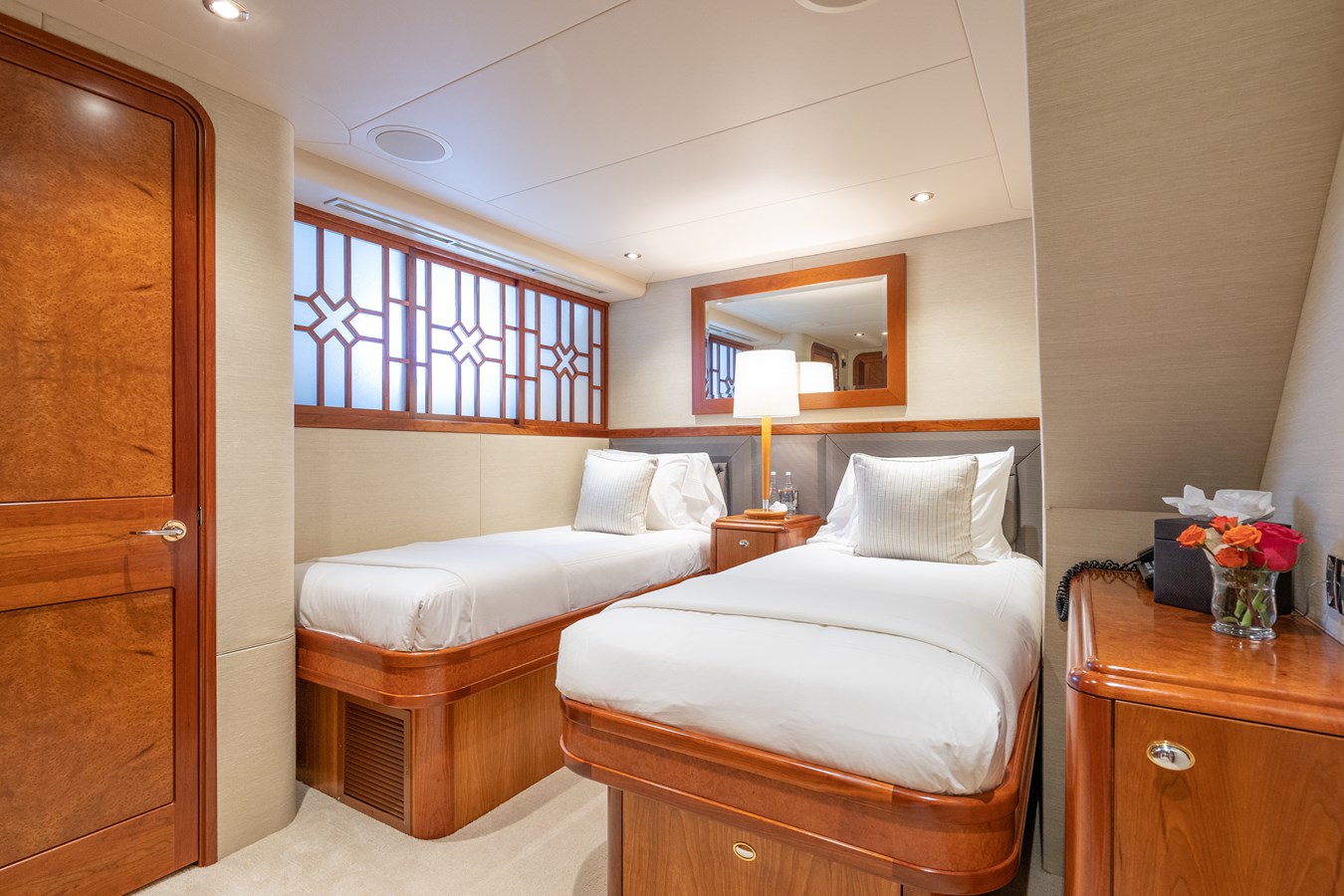

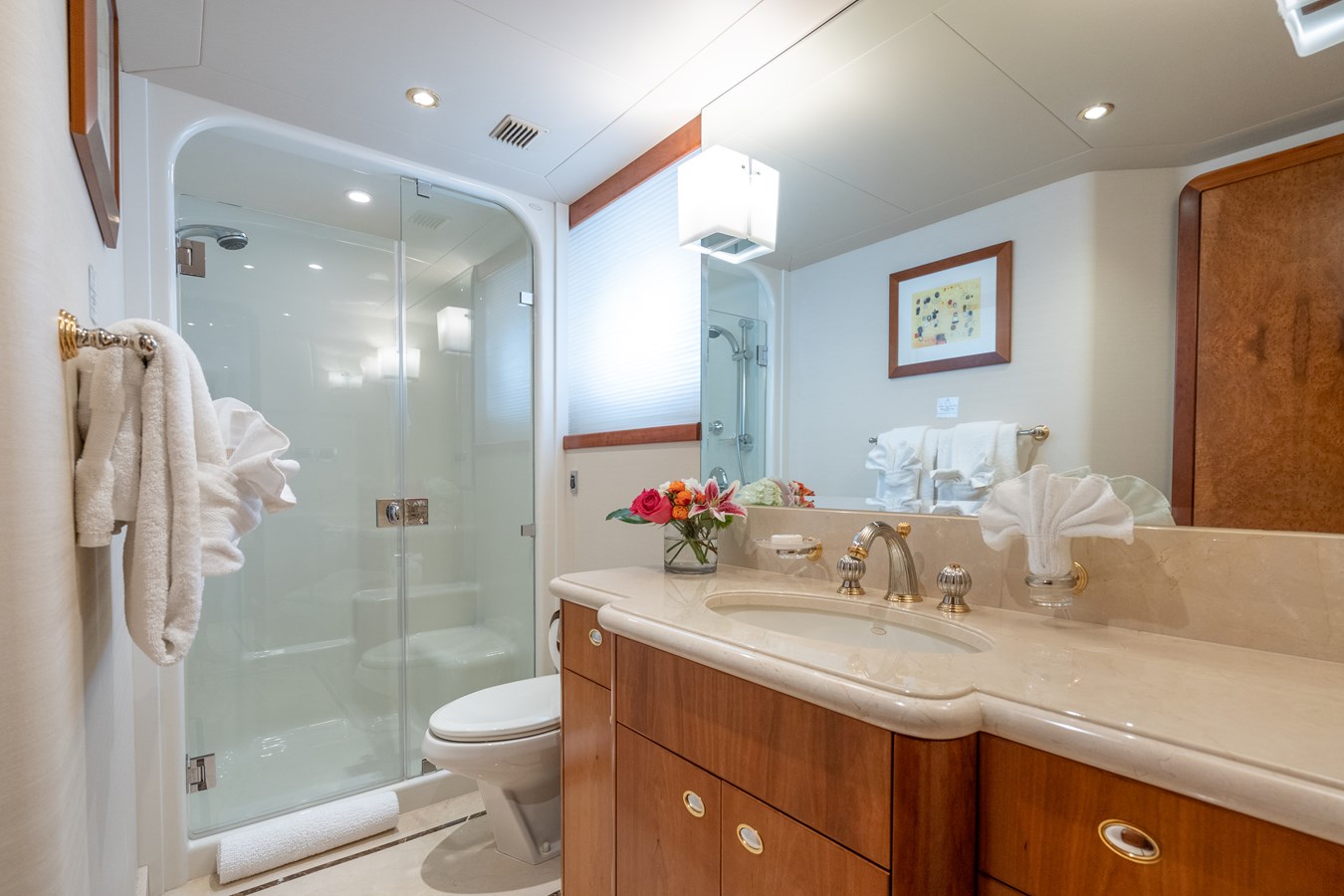

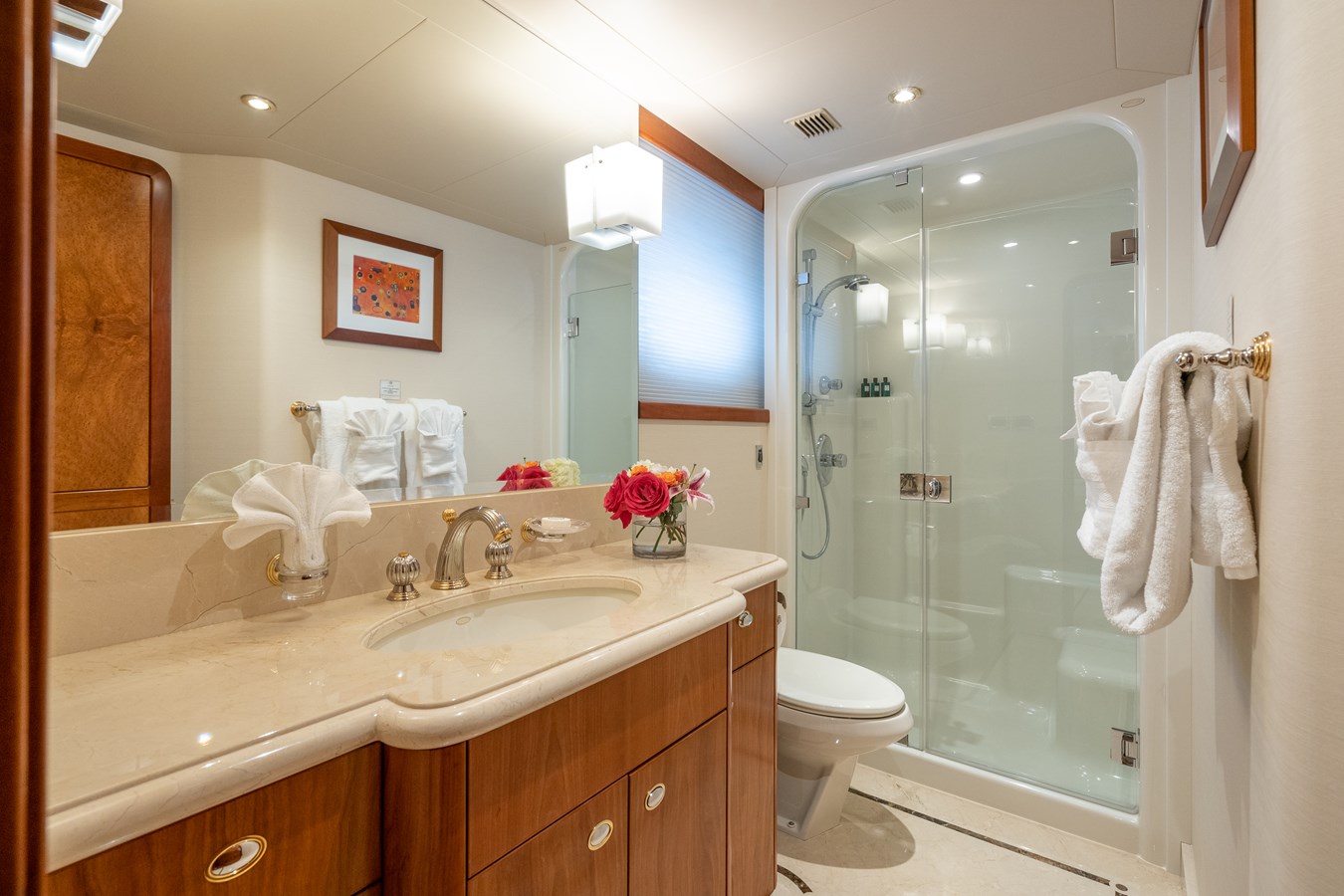

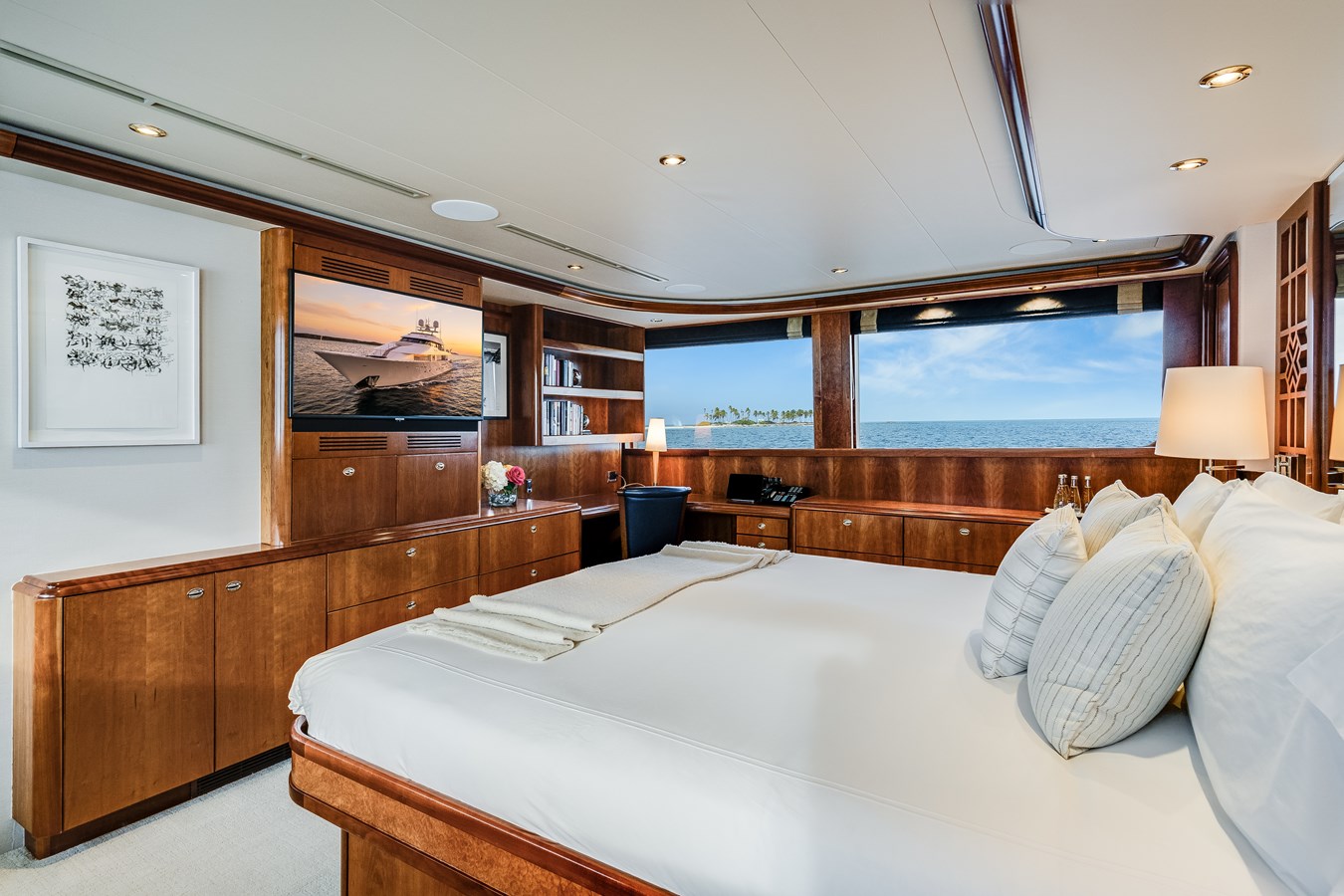

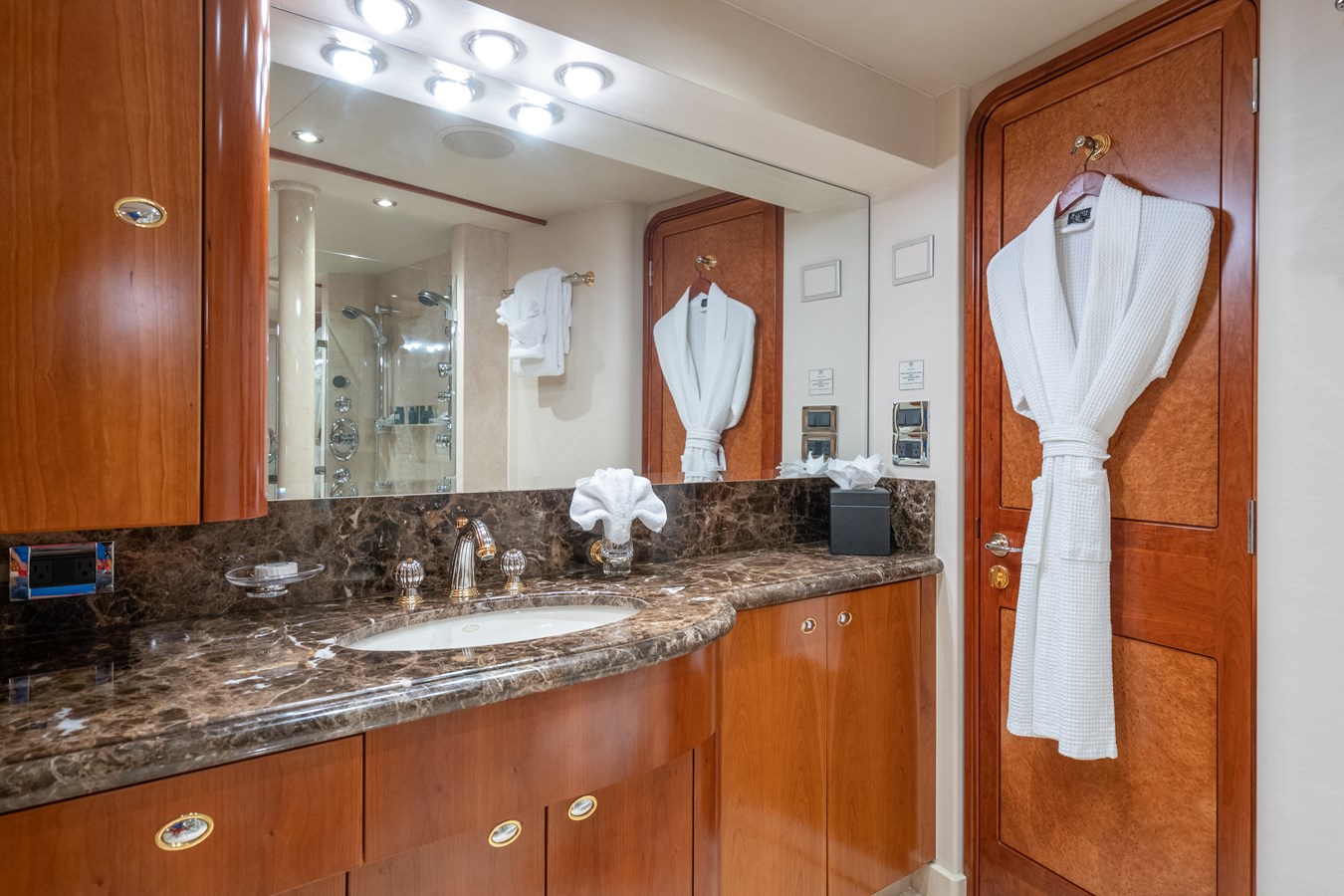

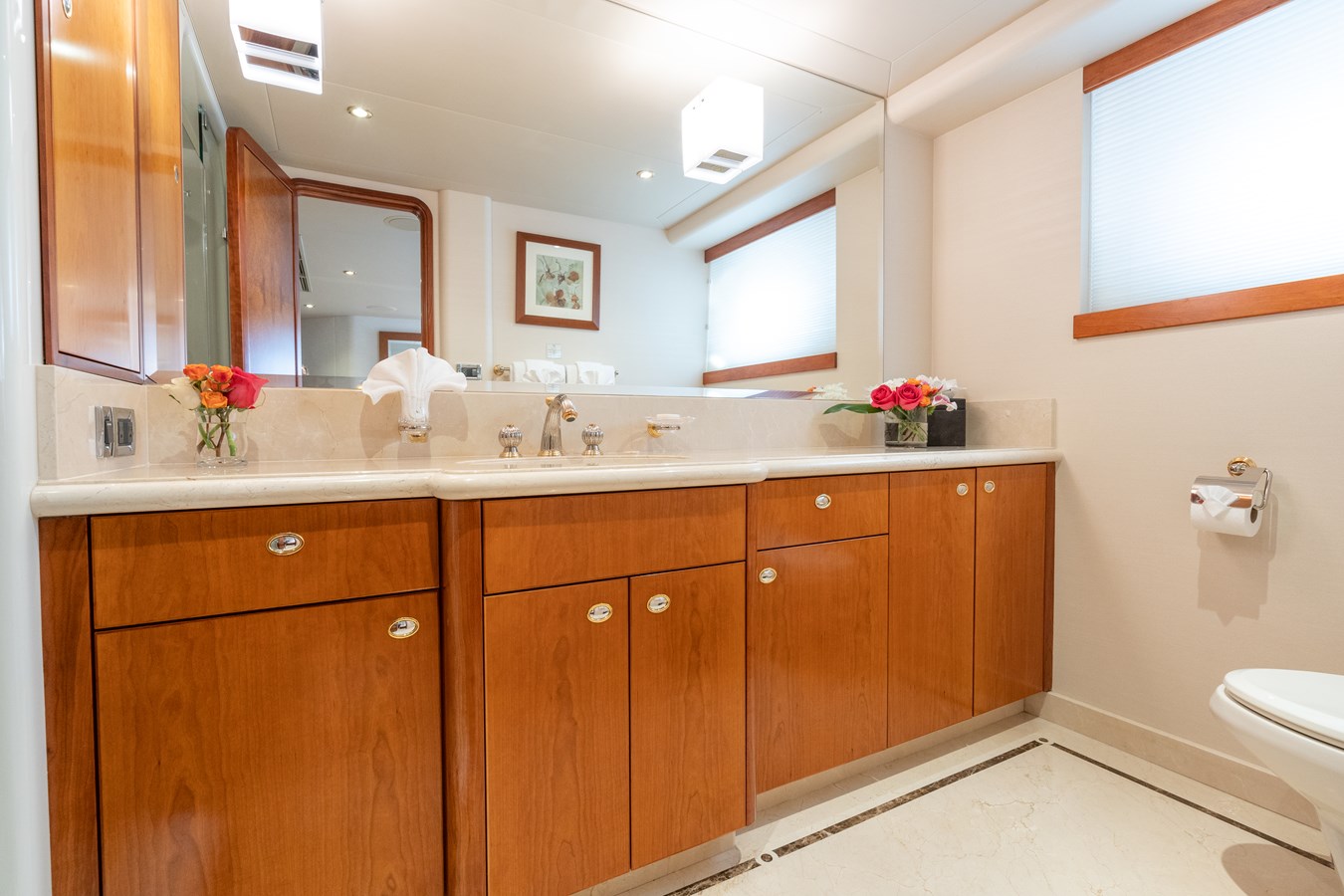

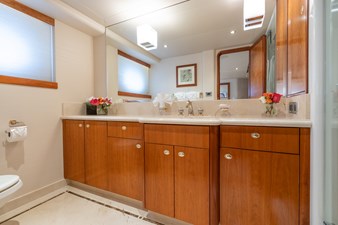

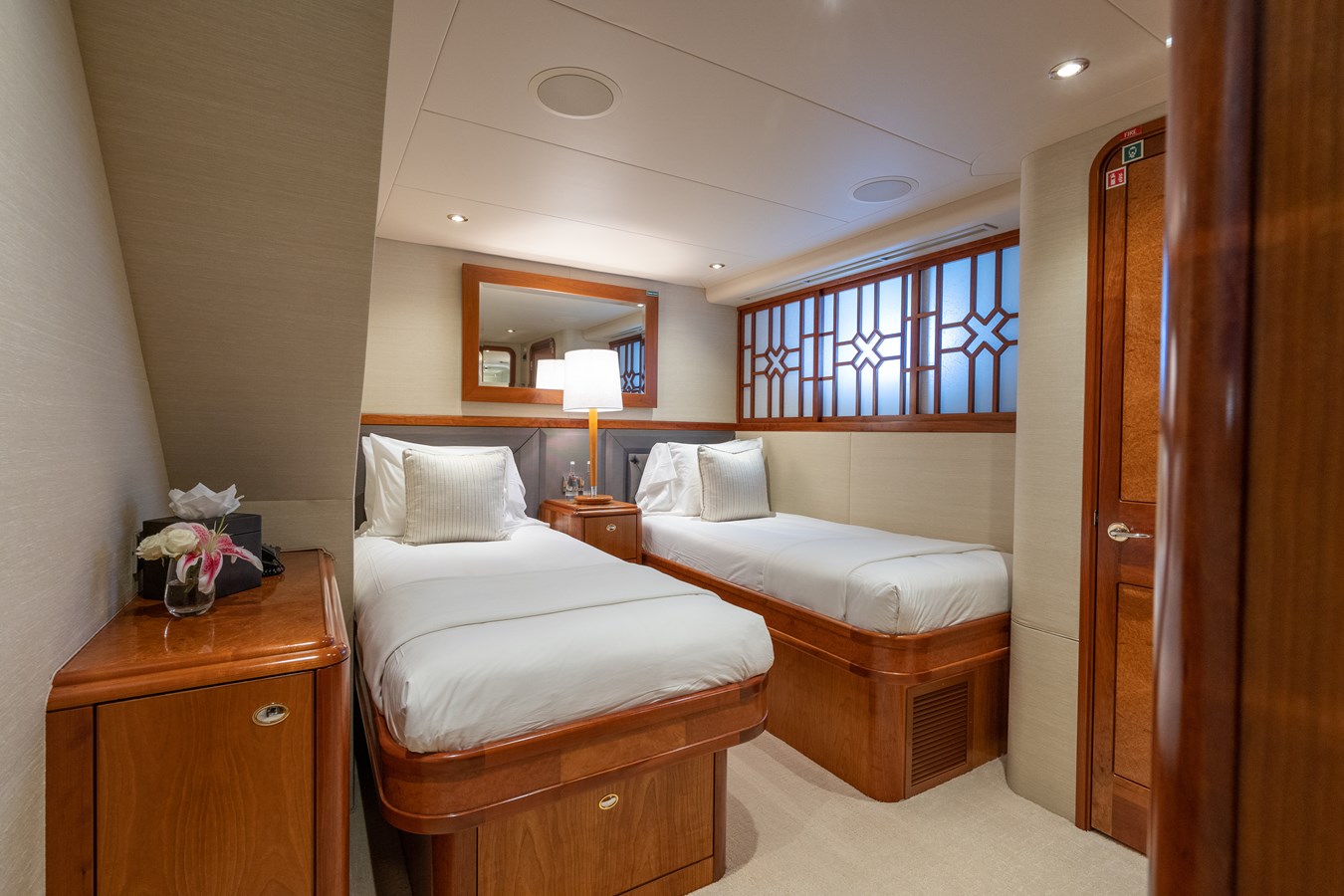

AVALINA accommodates 10 guests across five cabins, featuring a main deck master suite with queen bed and Jacuzzi tub, plus two doubles and two twins on the lower deck. Crew quarters allow for a team of seven. The cherry wood interior offers a warm and timeless aesthetic.

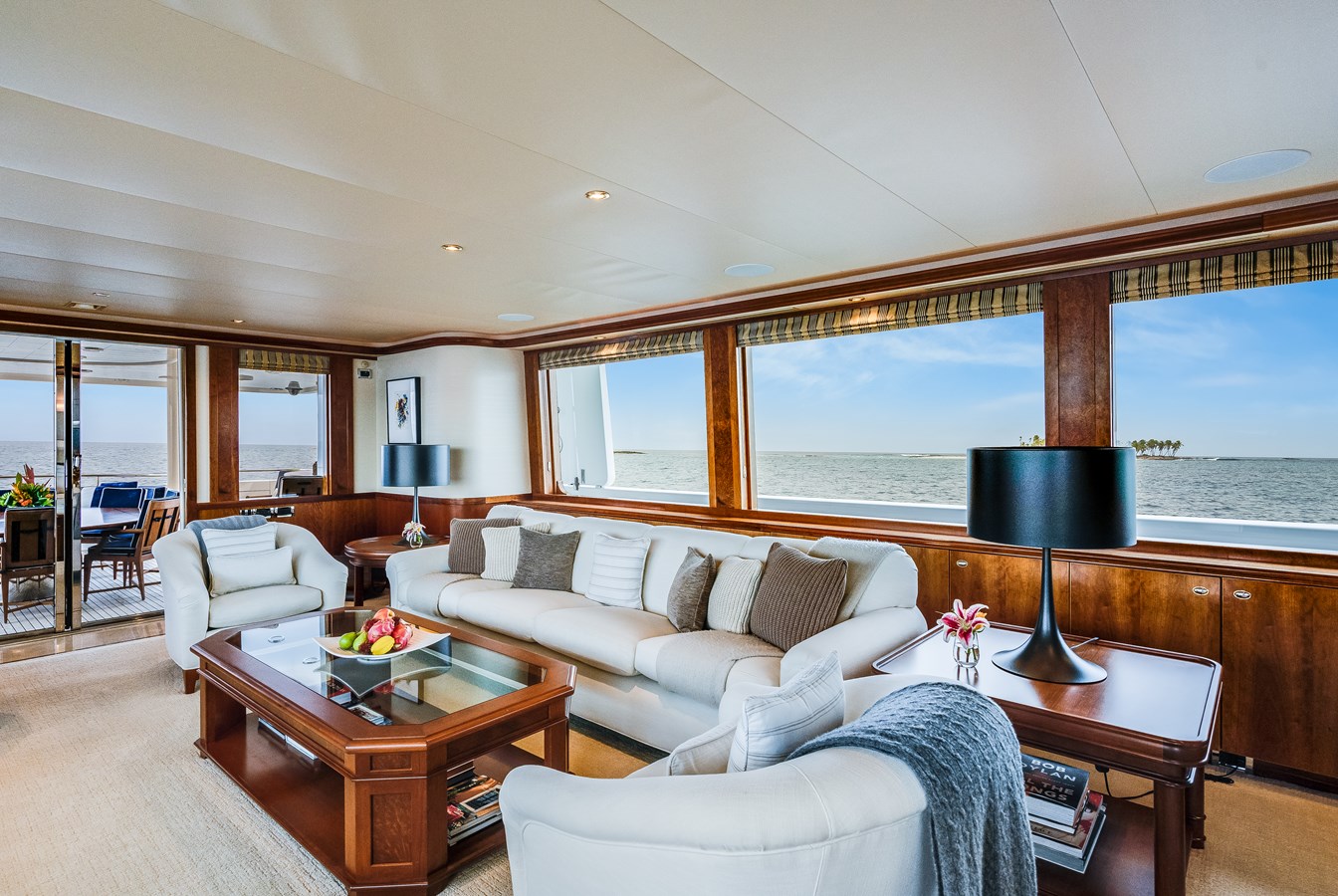

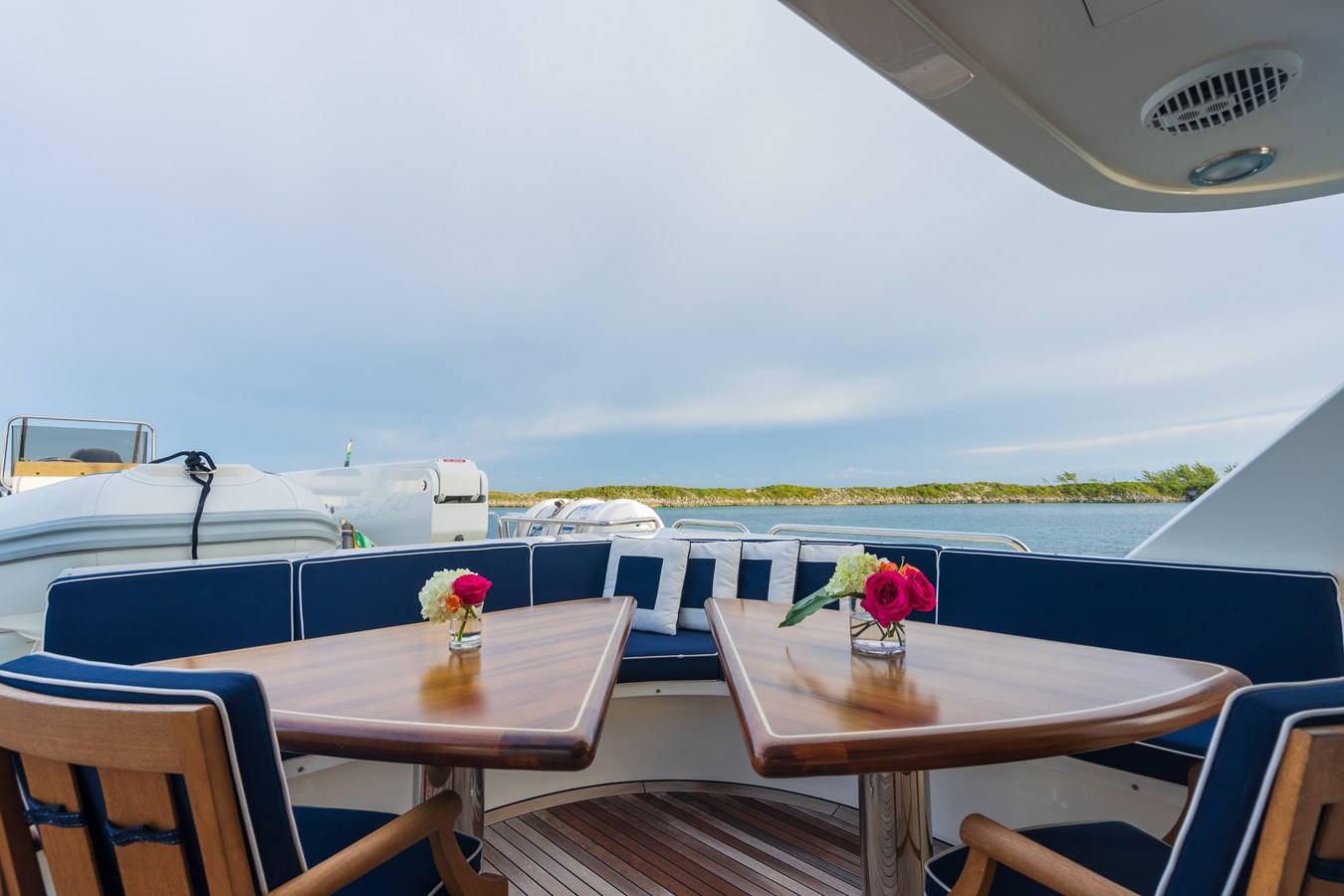

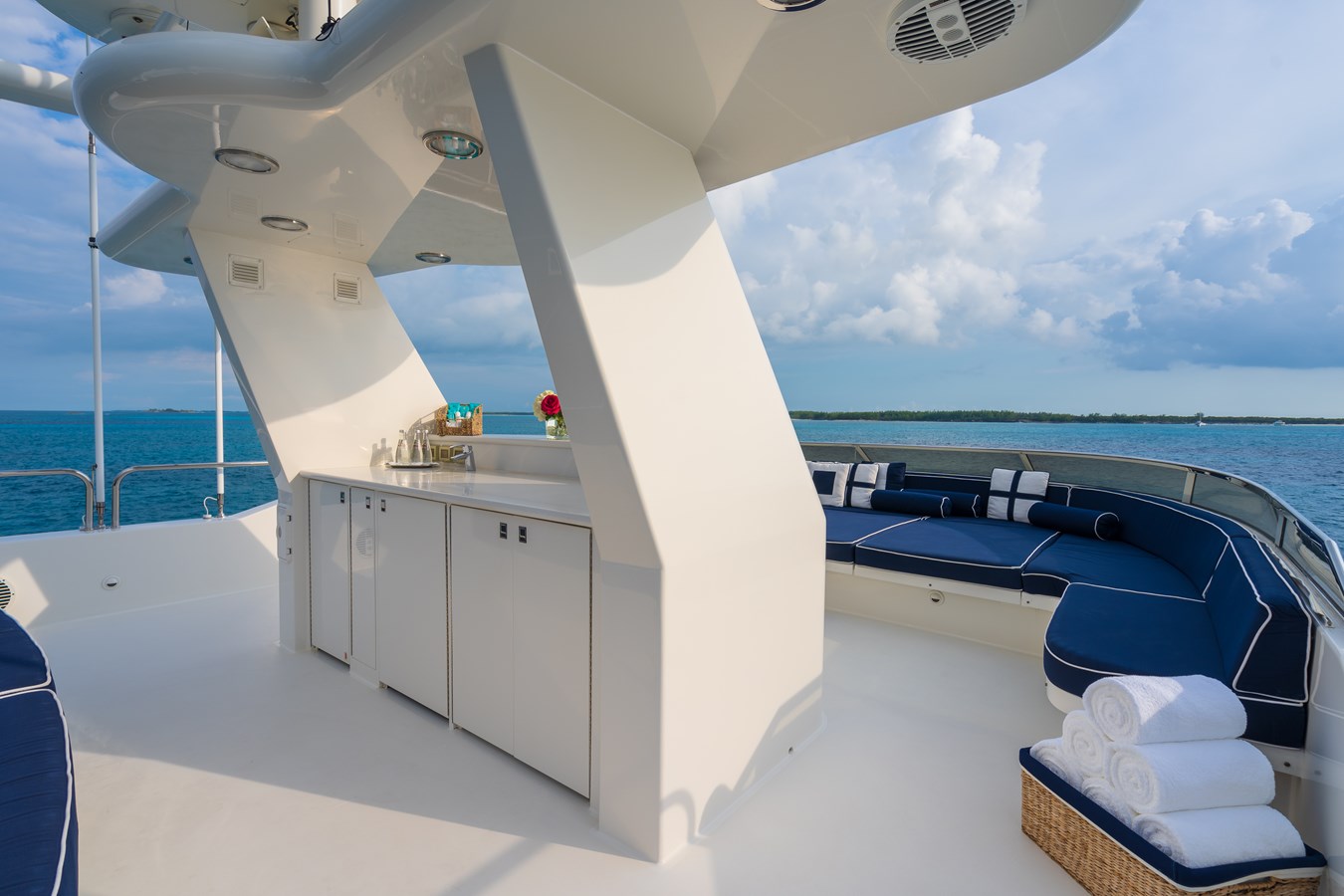

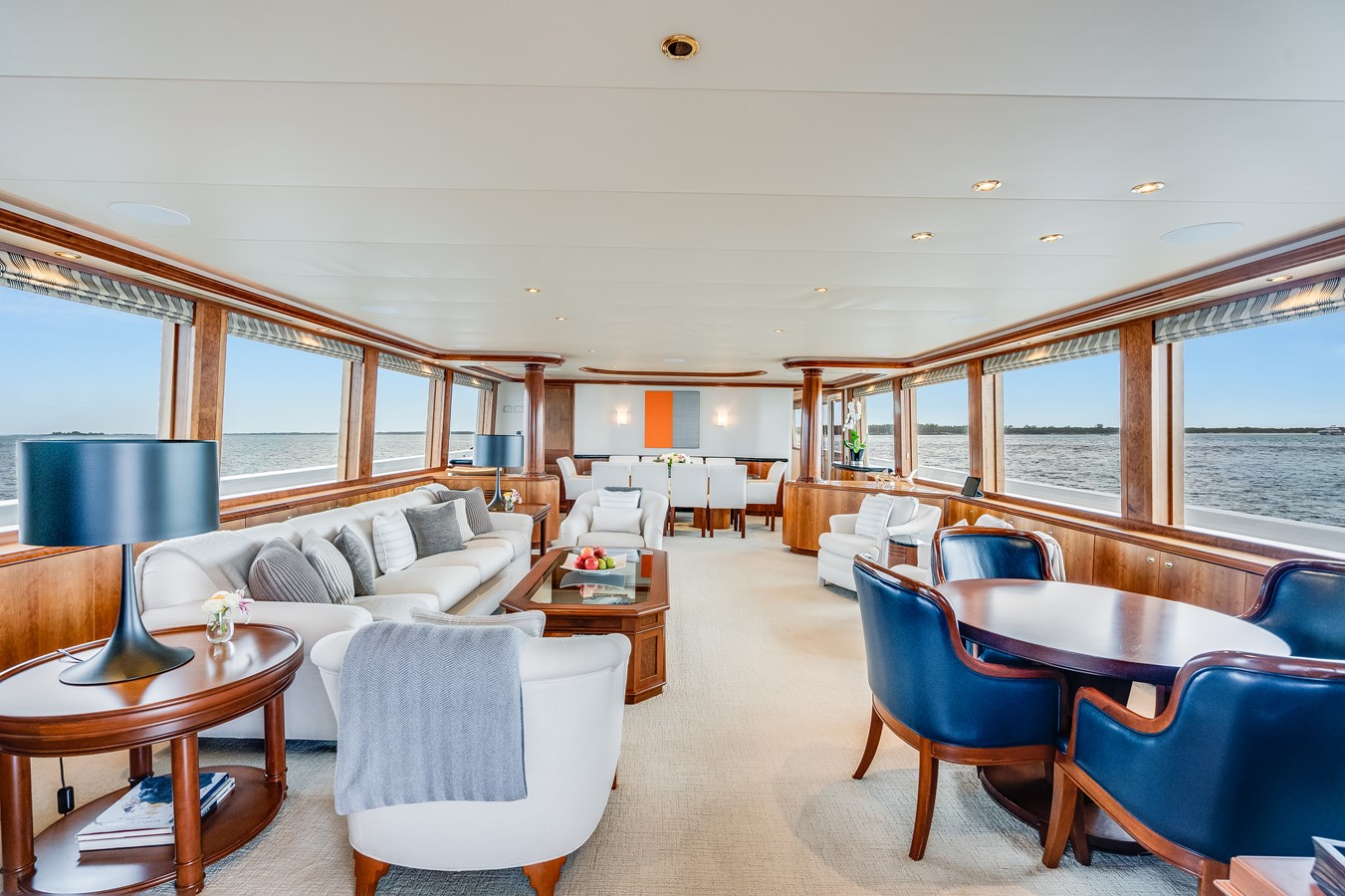

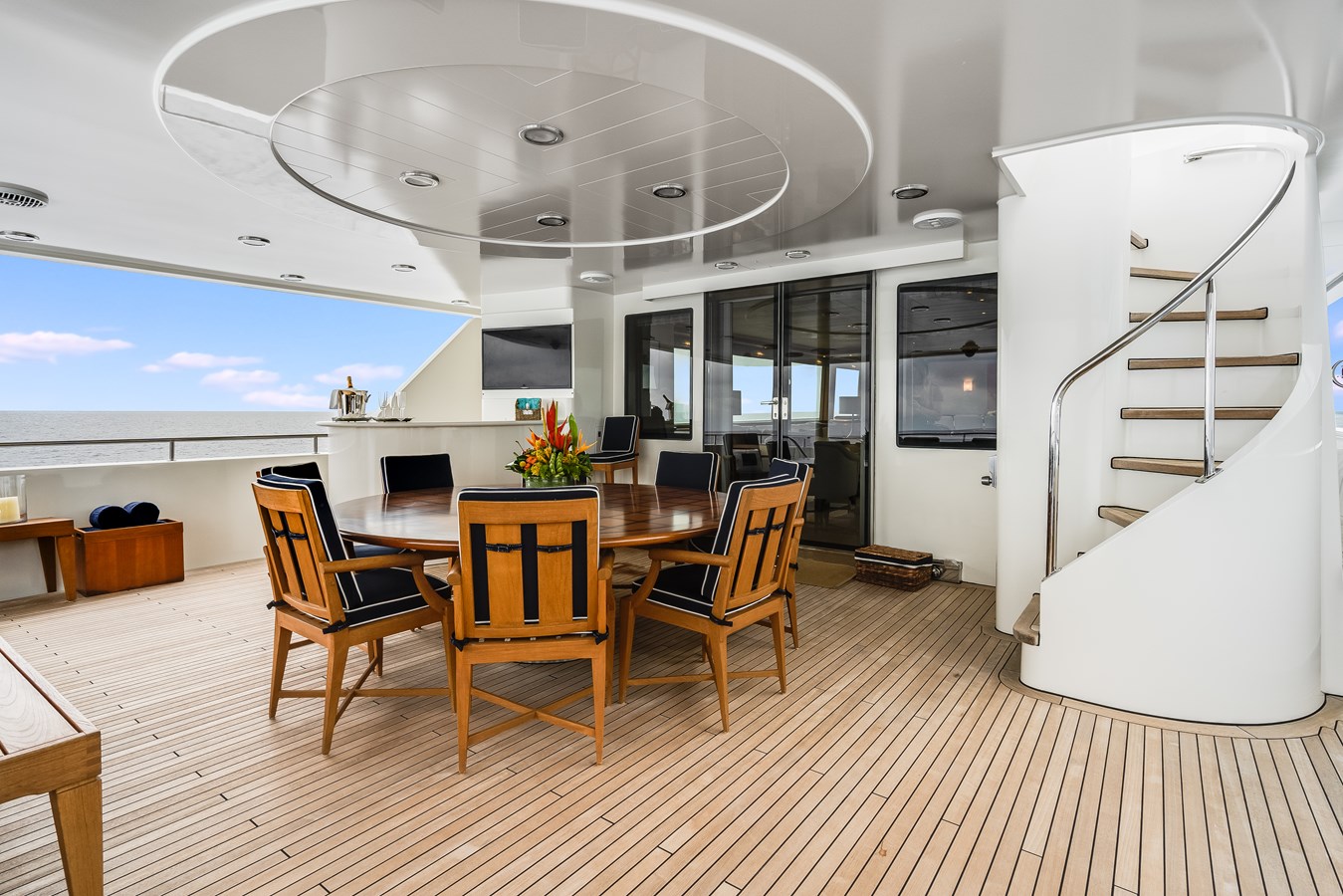

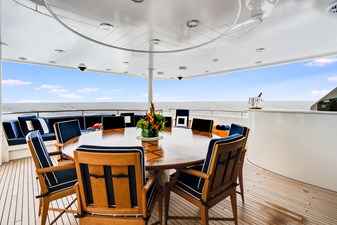

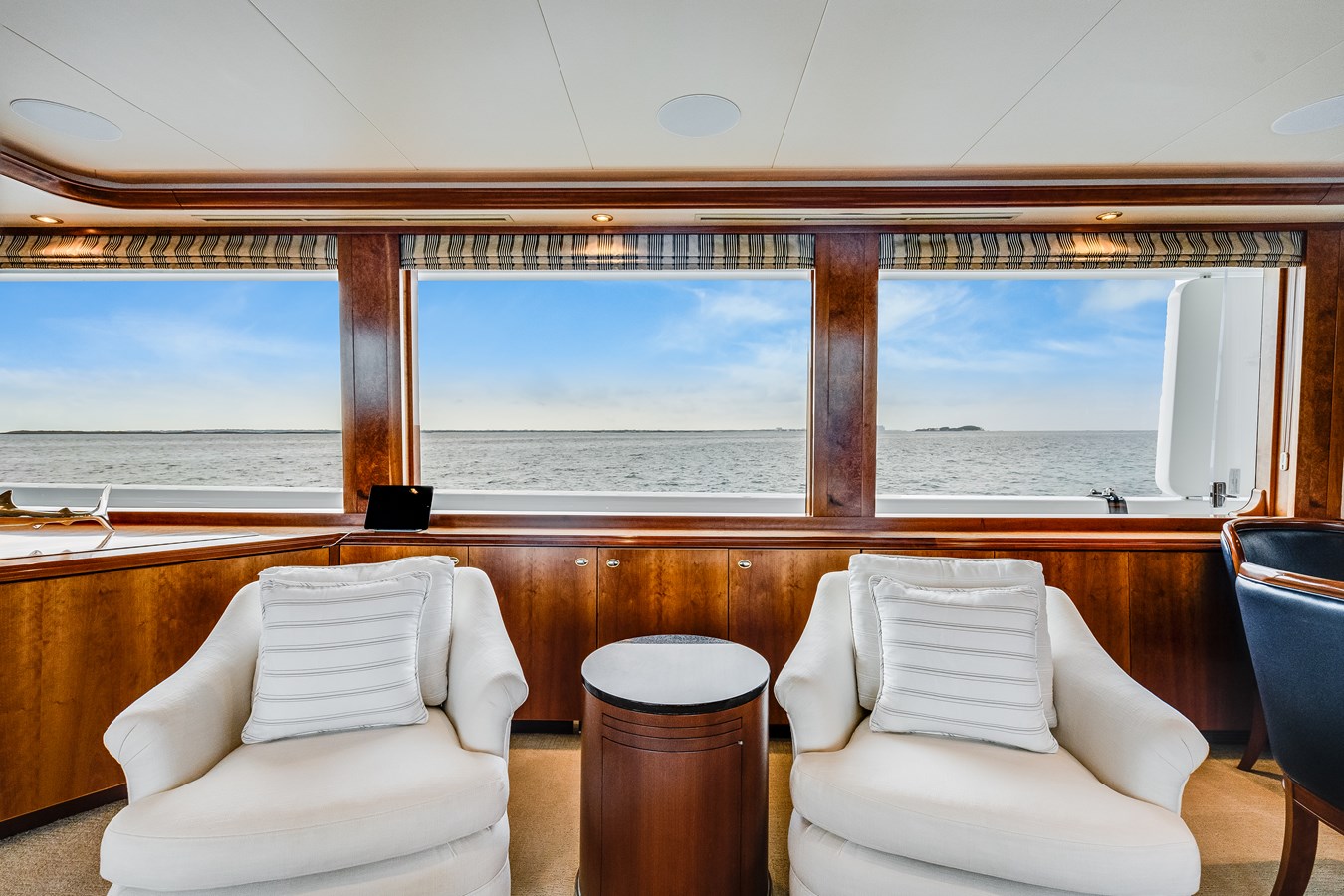

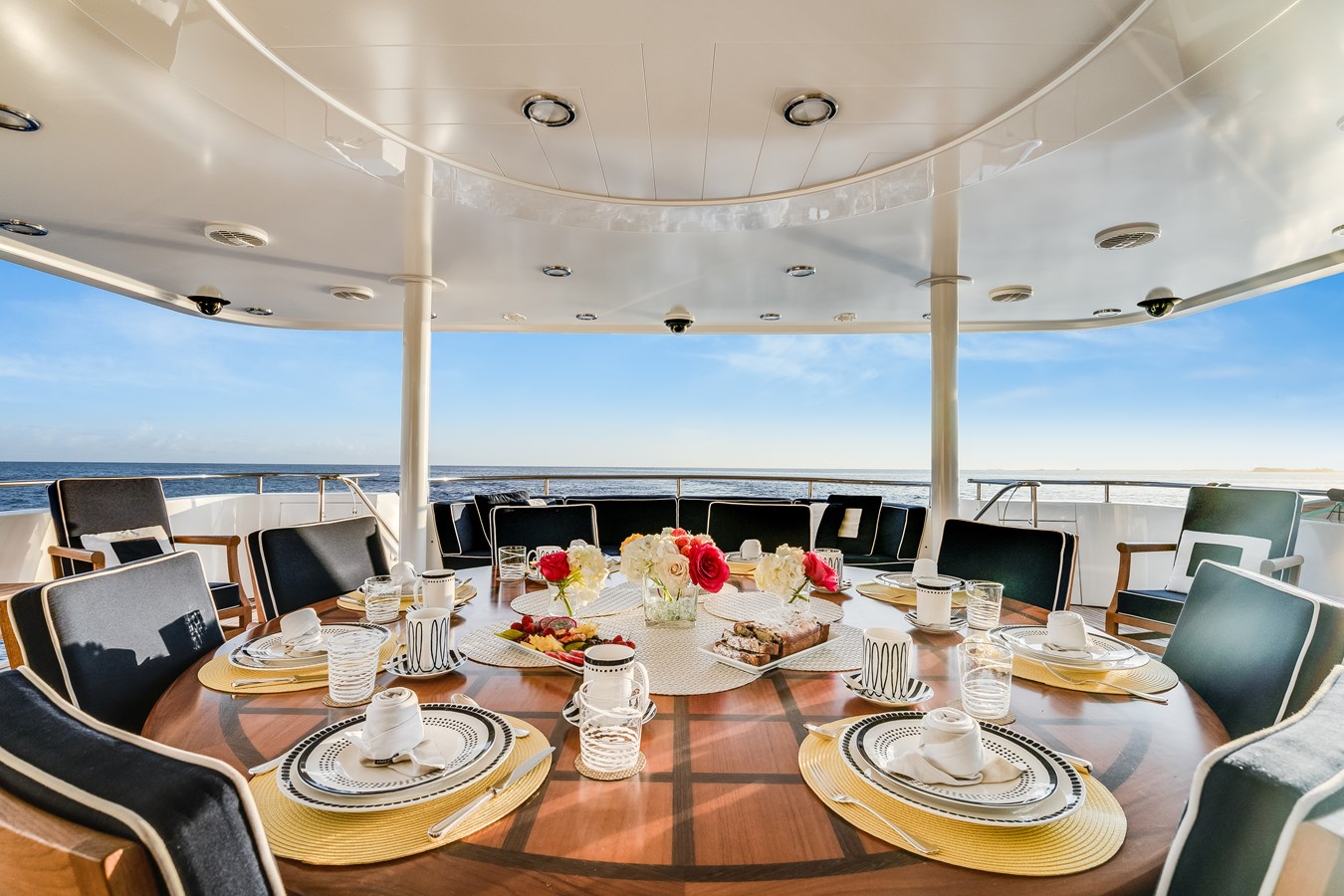

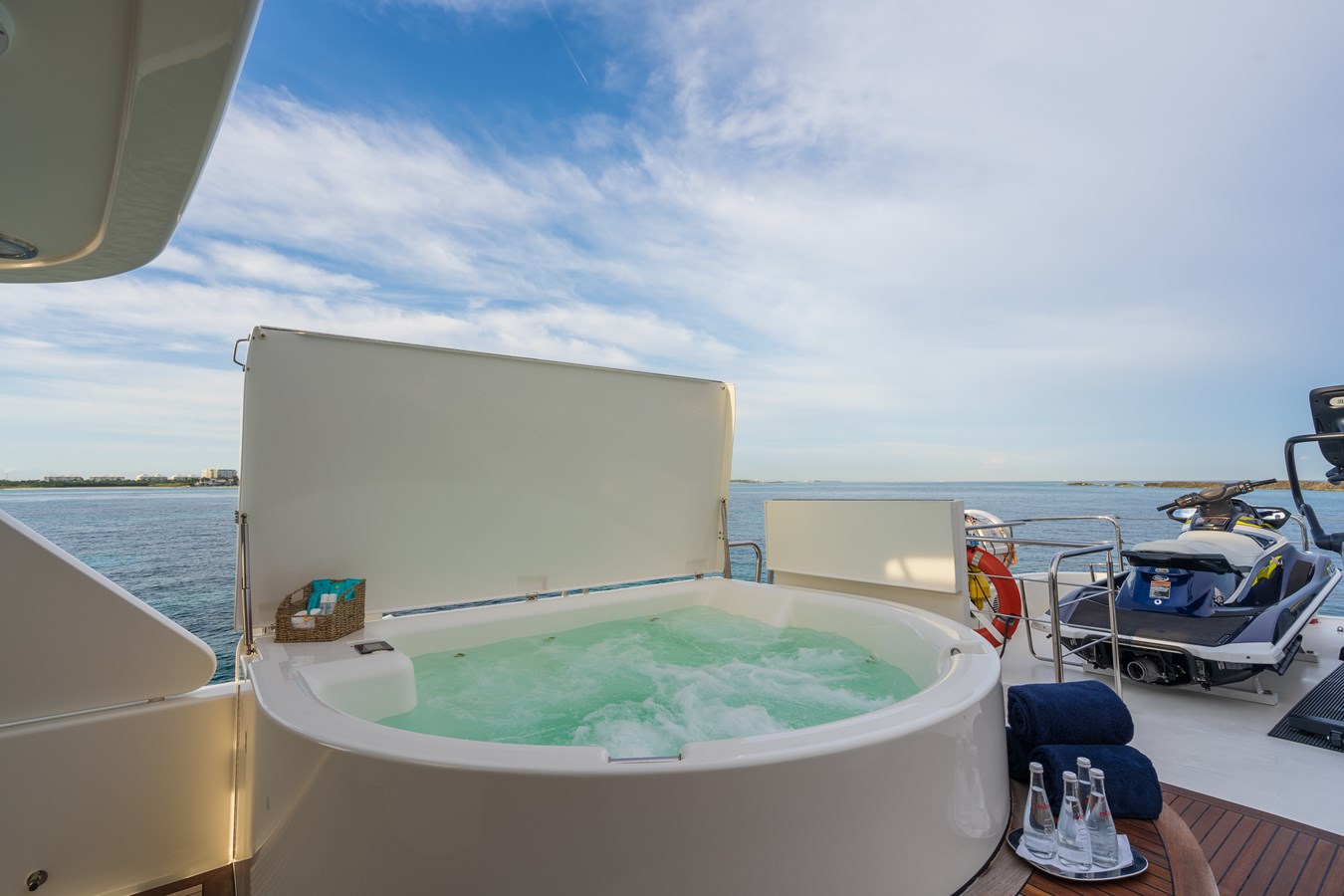

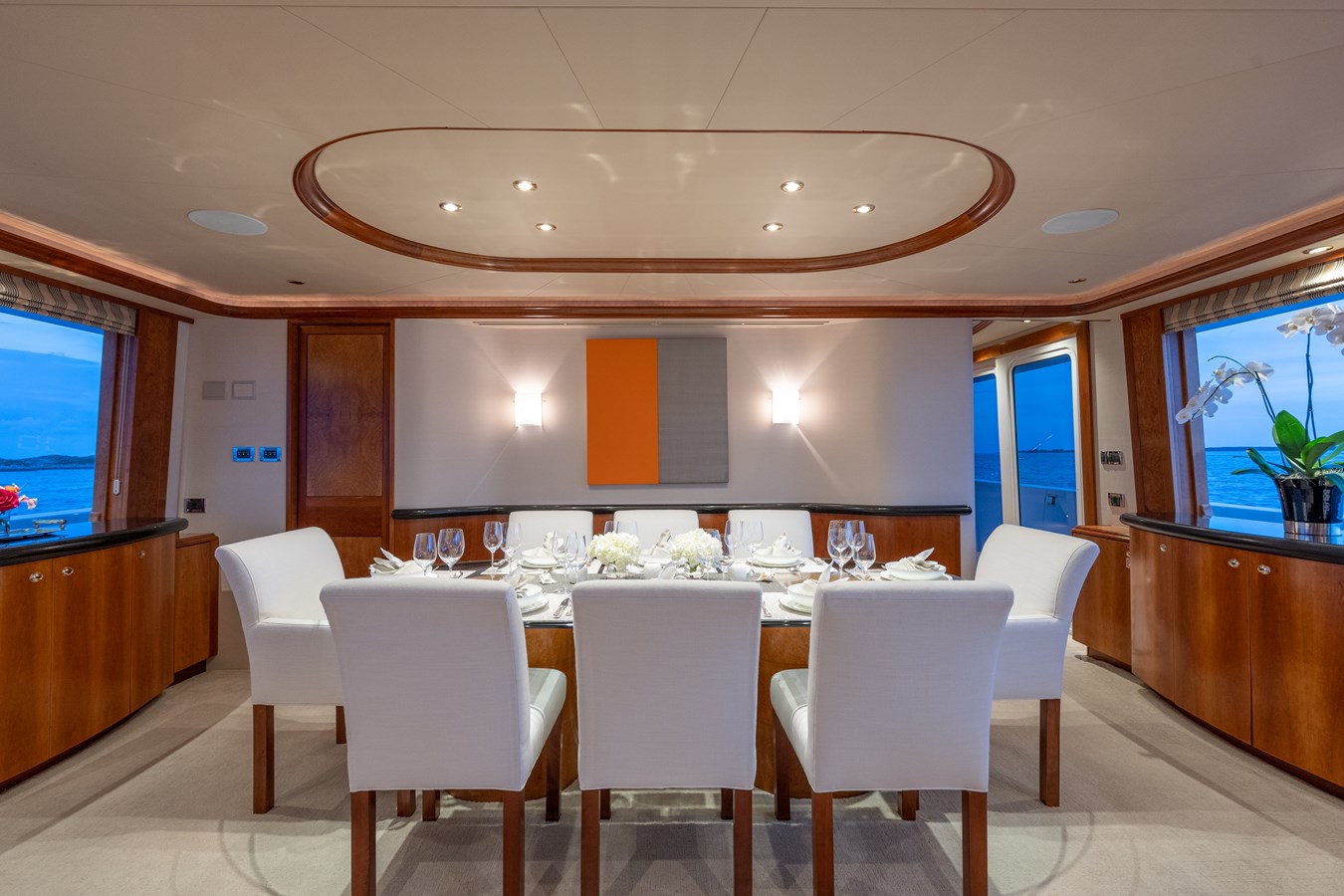

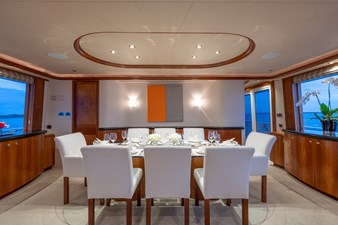

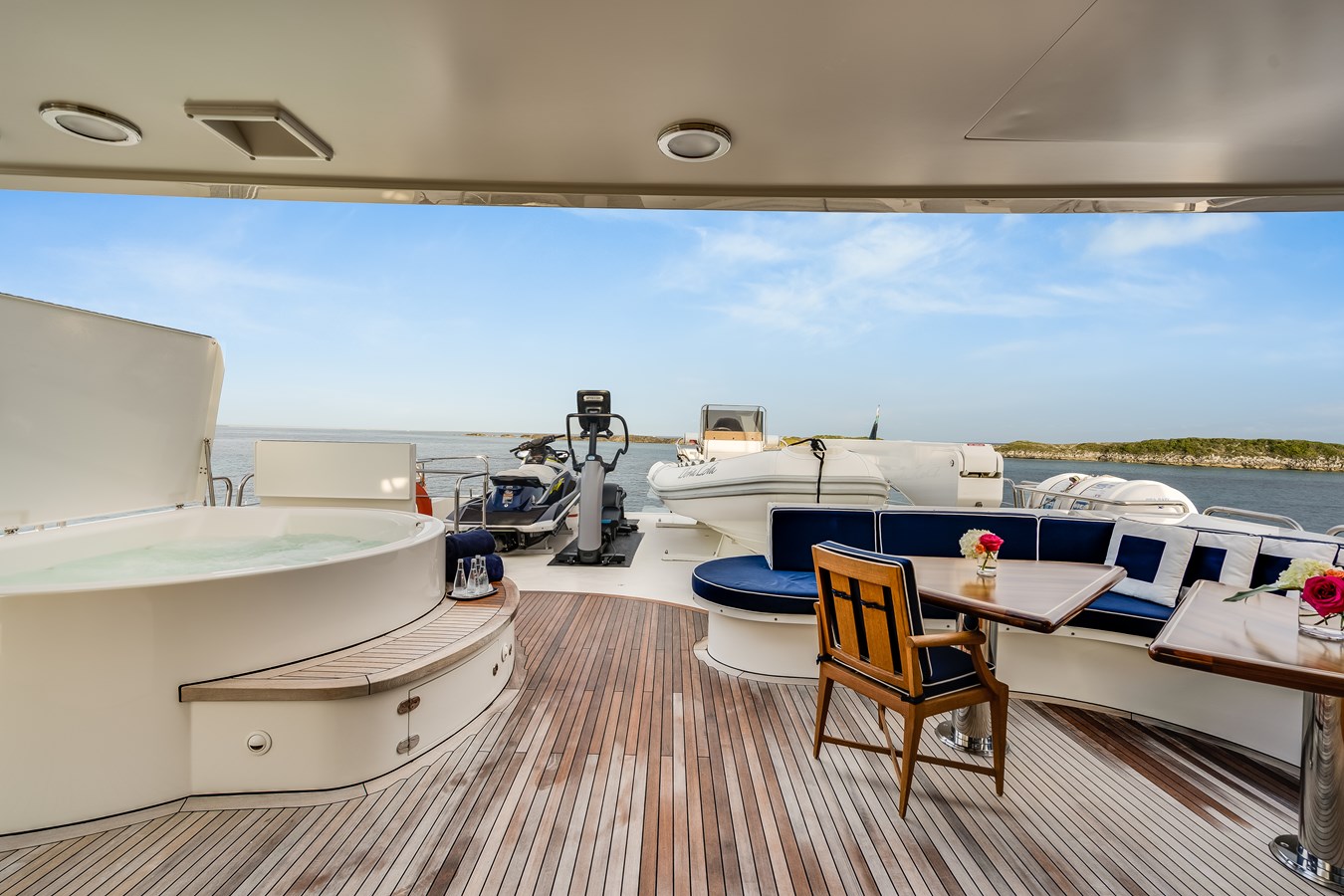

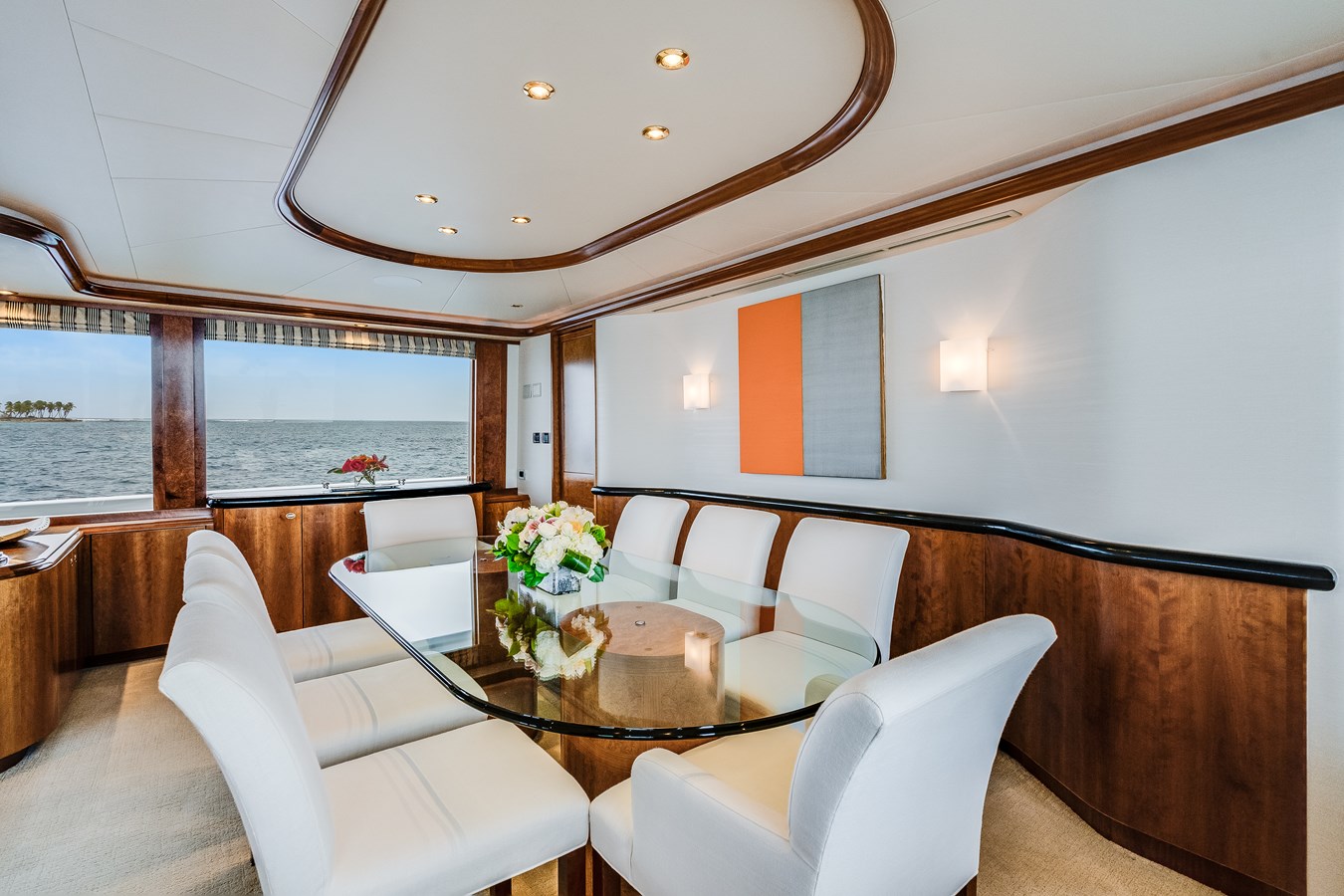

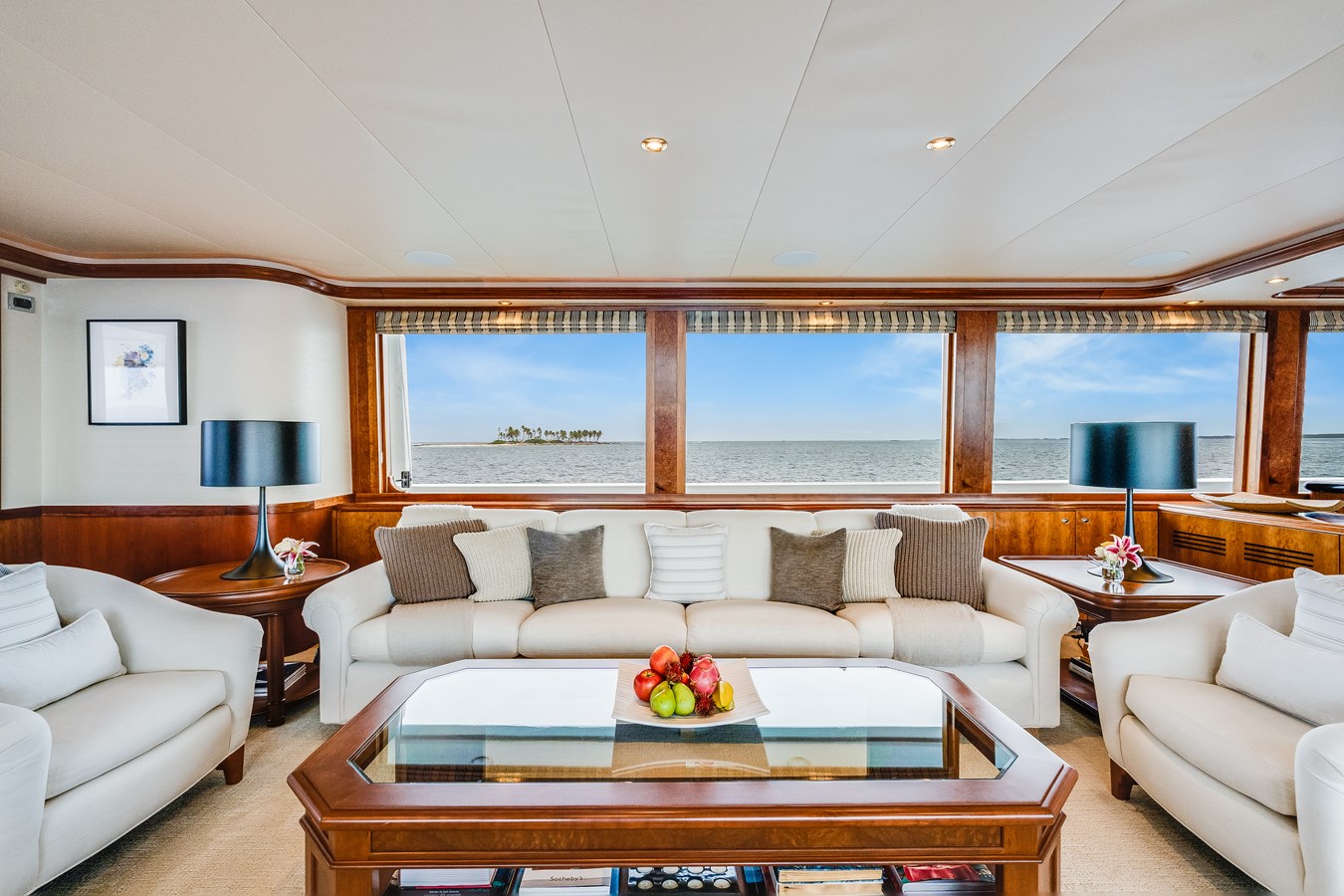

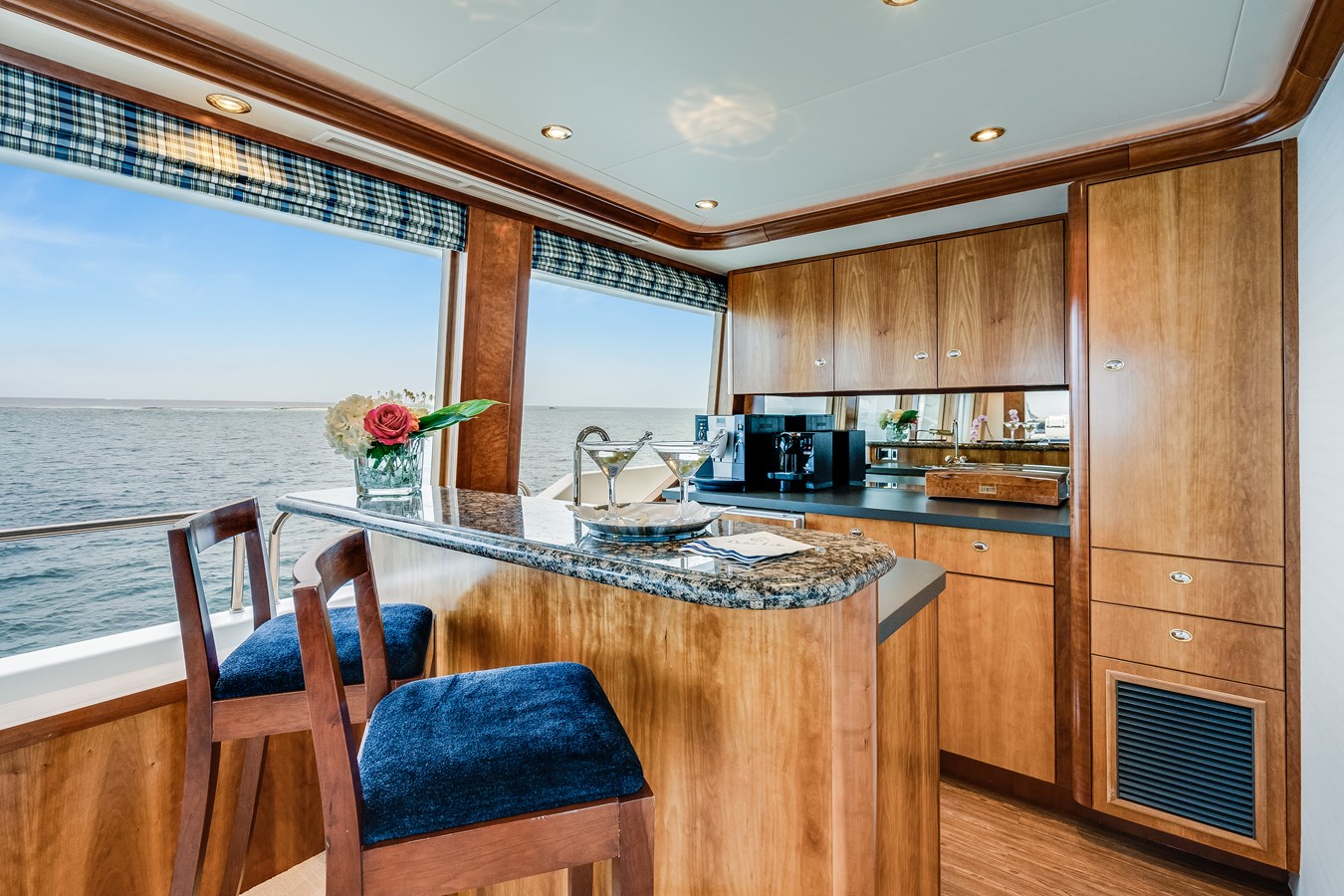

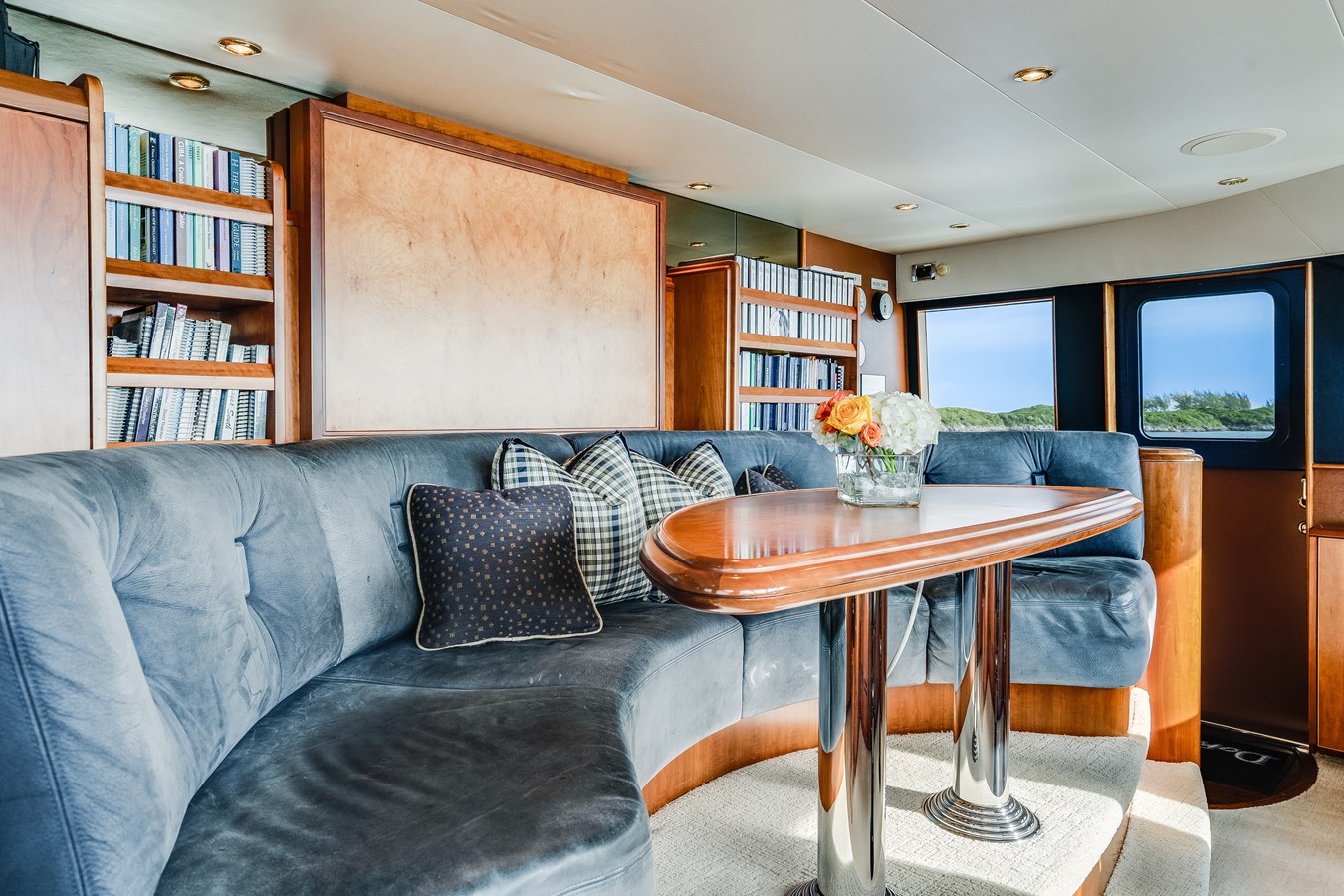

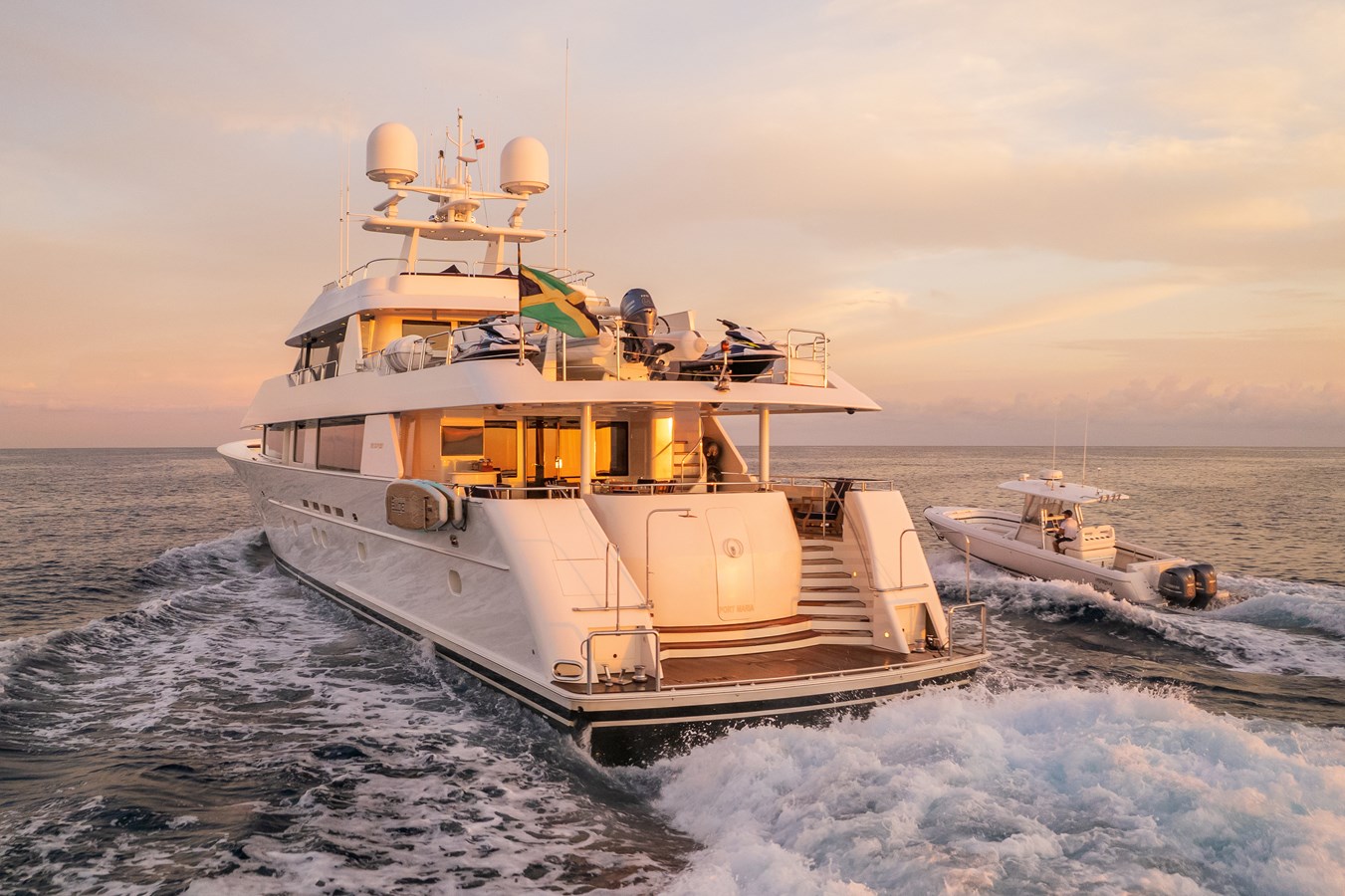

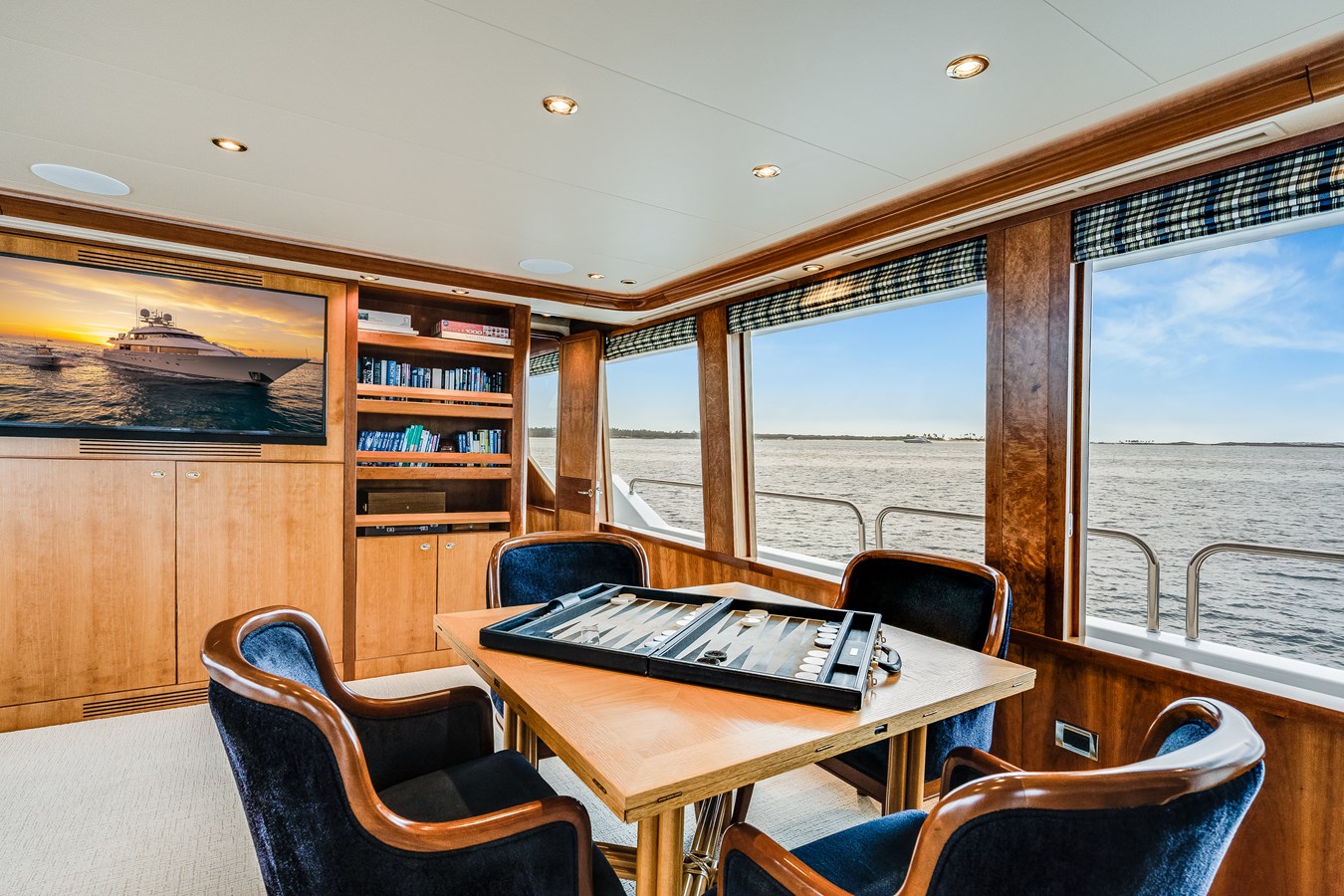

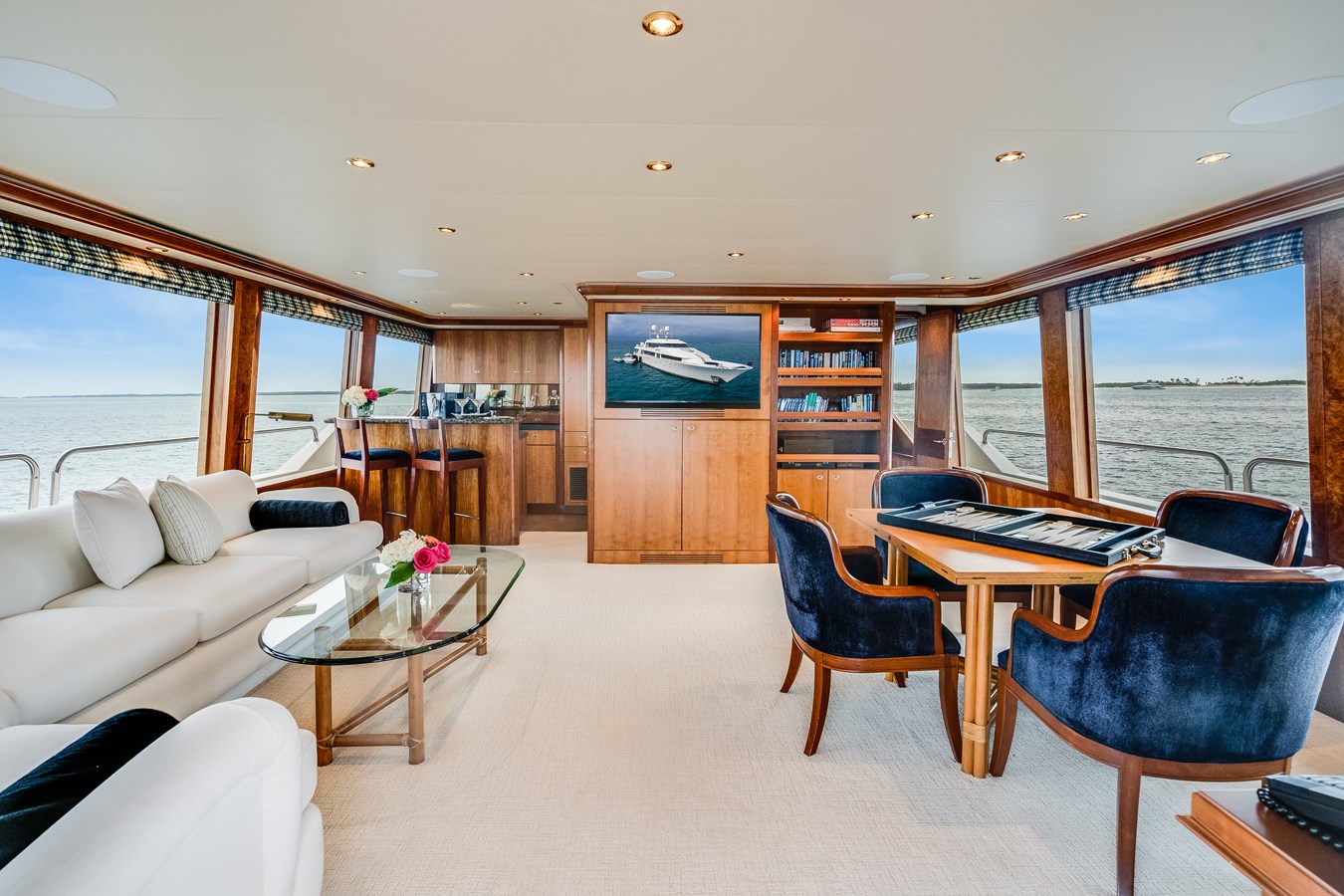

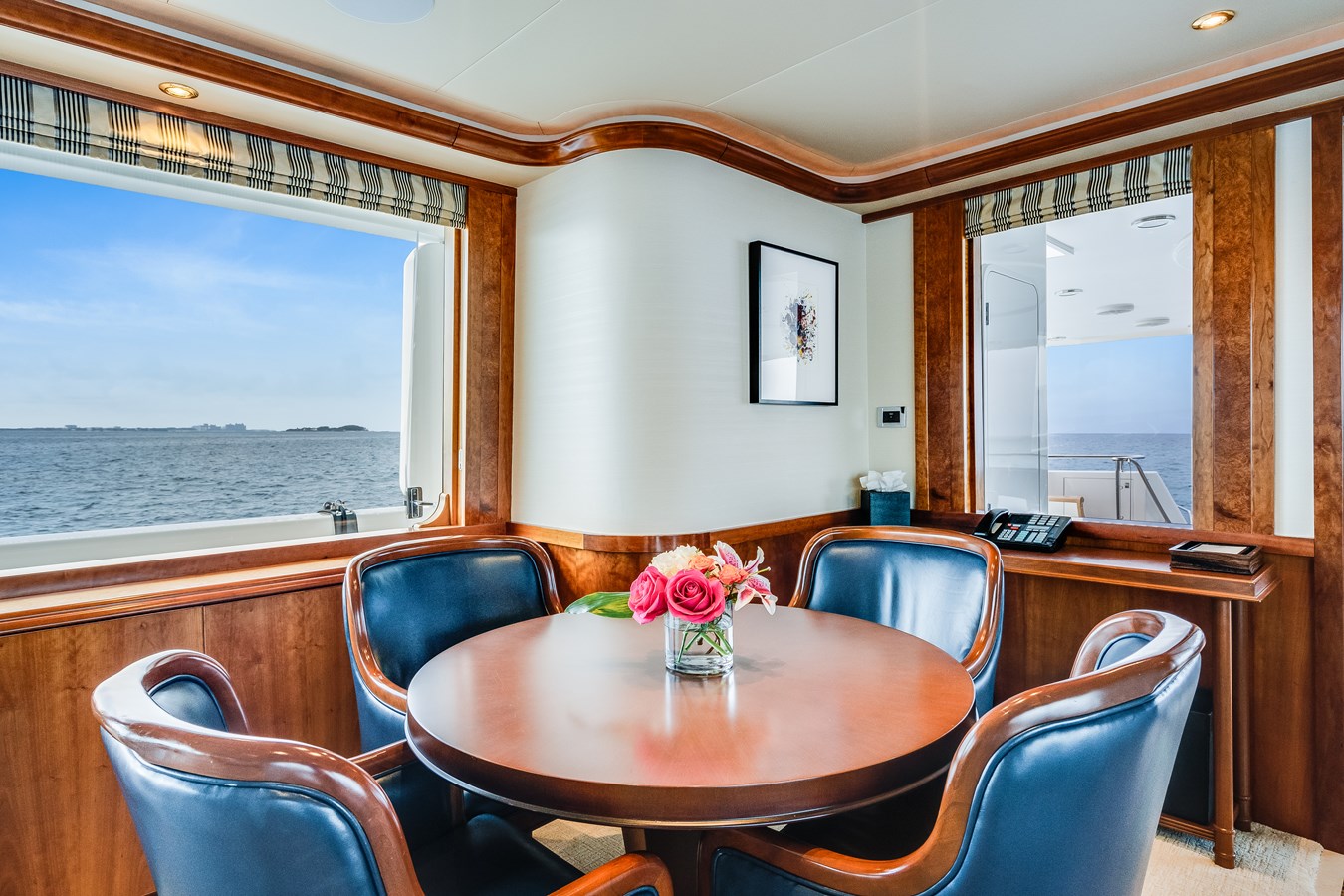

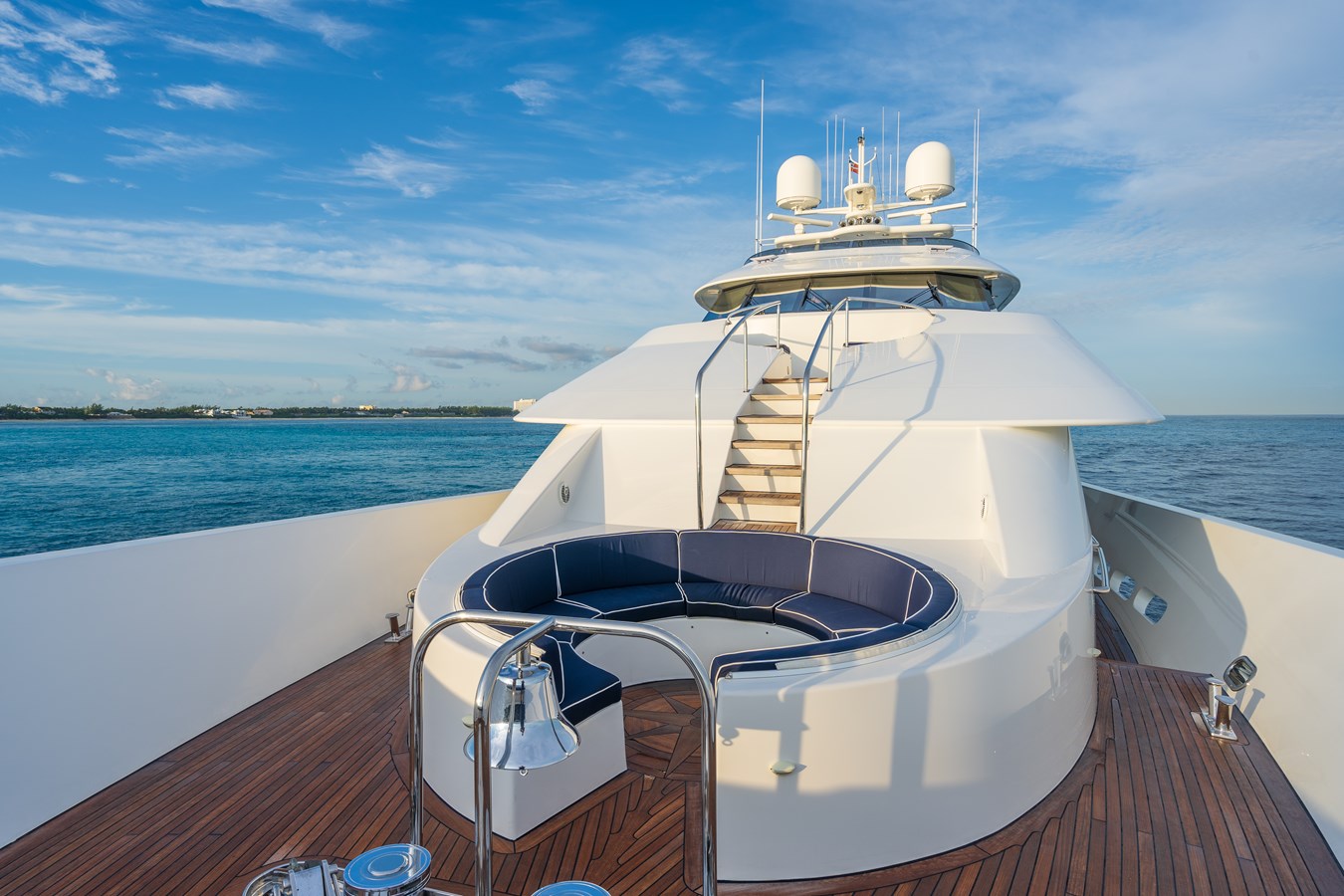

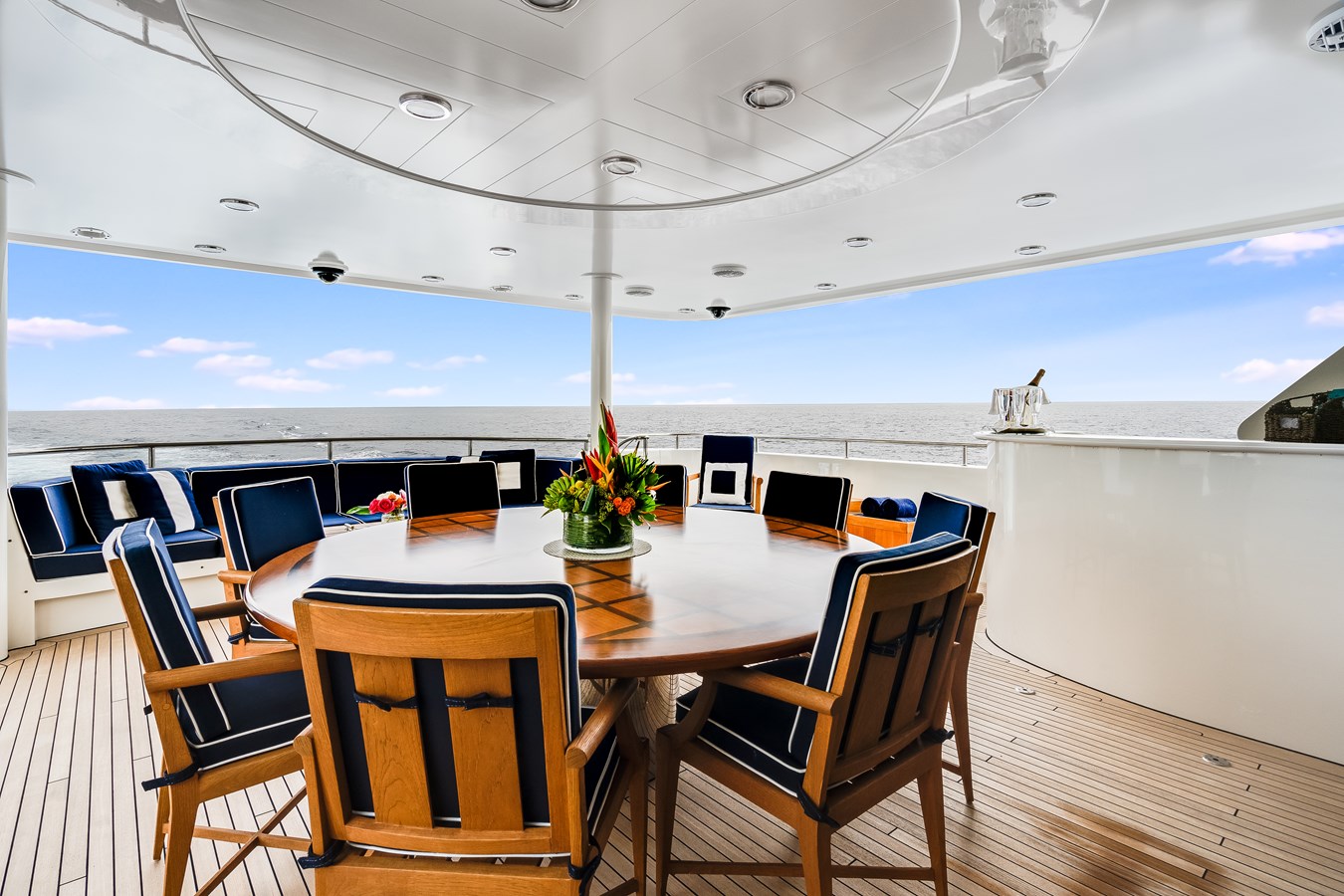

Her layout is designed for both comfort and entertainment, with a spacious main salon and separate dining area, a sky lounge with a games table and sit-up bar, and an expansive aft deck with circular dining, wet bar, and lounge seating. On the sundeck, guests can enjoy a Jacuzzi and sun pads with panoramic views.

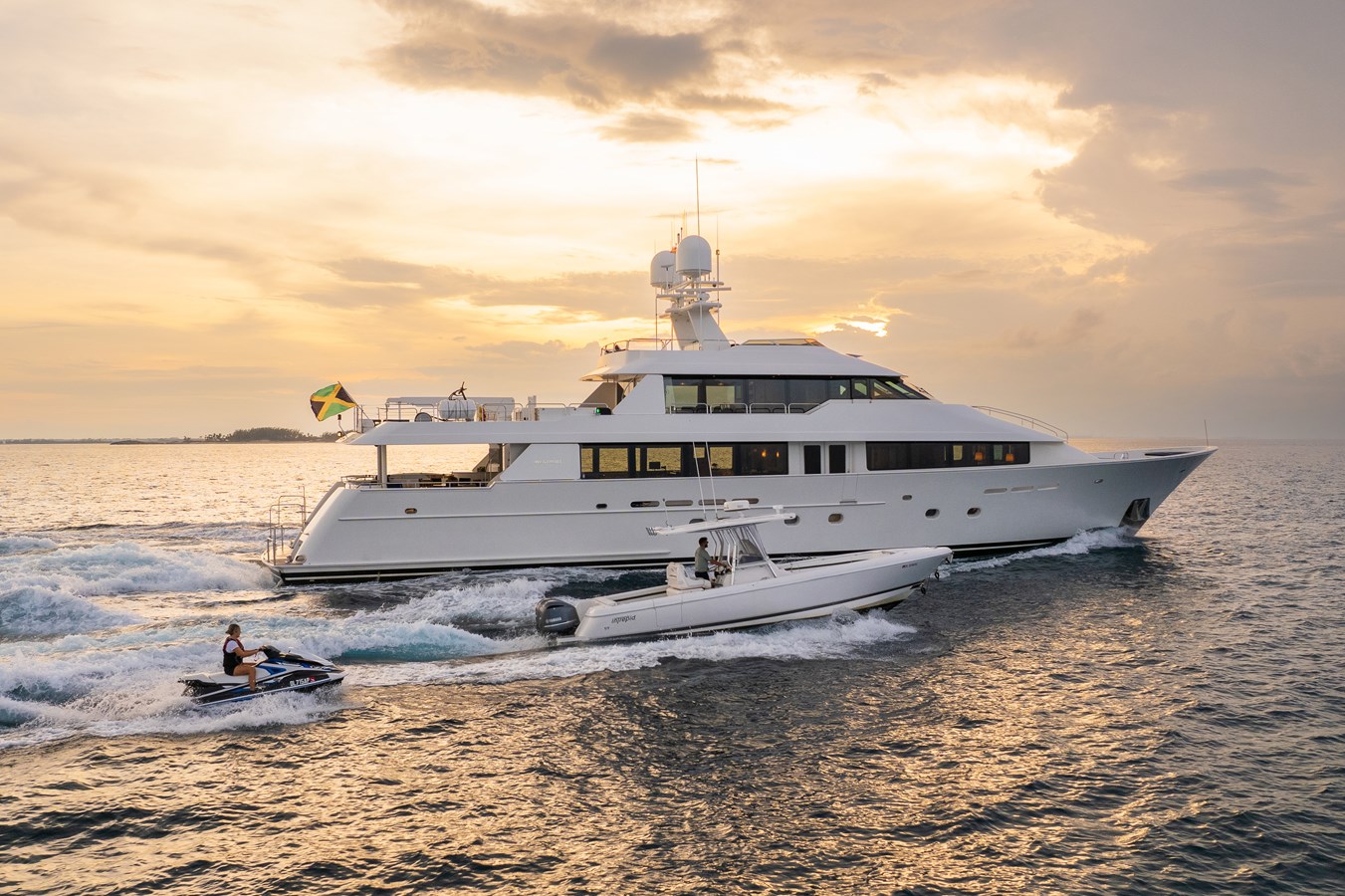

Powered by twin 2,735hp MTU engines, AVALINA reaches 24 knots and cruises comfortably at 13 knots. She is also equipped with Naiad 521 Stabilizers for extra comfort, underway and at anchor.

MAIN SPECIFICATIONS

• MAIN SPECIFICATIONS

  Length Overall: 130 ft / 39.6 m

  Length at Waterline:

  Beam: 26' 3" ft / 8 m

  Draft: 6' 6" ft / 1.98 m

  Year Completed: 2003

  Model Year: 2003

  Refit: 2020

  Type: Motor Yacht

  HIN: WPS01506C204

  Tonnage: 298 GT

  Displacement: Semi Displacement

  Guests: 10

  Crew: 7



  CONSTRUCTION

  Builder: Westport

  Naval Architect: William Garden

  Interior Design/Stylist: Pacific Custom Interiors

  Hull Material: GRP

  SPEED

  Maximum: 24 Knots

  Cruising: 13 Knots

  Range: 24 knots max. 2,500nm range @13kts/52gph/9,984 gal.



  CAPACITIES

  Fuel: 9898.53 Gal / 37470 L

  Water: 1619.37 Gal / 6130 L

  Grey Water: 940 Gal / 3,560 L

  Black Water: 1,360 Gal / 5,150 L

  Lube Oil Capacity: 77 Gal / 291 L

  CLASSIFICATION & CERTIFICATIONS

  Flag: Cayman Islands

MACHINERY

• MAIN ENGINES

  Engine Type: 2 x MTU 12V 4000

  Horsepower: 2,734 Hp

  Engine Serial Numbers: 5262001231 Port, 5262001229 Starboard

  Main Engine Hours (Port): 1746

  Main Engine Hours (Stbd): 1749



  GENERATORS & ELECTRICITY

  Generators: 2 x Kohler 65EOZD (@1,800 rpm)

  Port Generator Hours: 19119

  Starboard Generator Hours: 19108

  Shore power: ASEA 170-520V, 3-Phase, 60Hz

  BATTERIES

  Batteries: 3 x 12V sets, 6 x 24V sets



  PROPULSION & STEERING

  Stabilizer: Naiad 521 with datum control for at-anchor stabilization                                      Stabilizer at Anchor: Yes

  Steering System: Jastram PTO pumps from main engines



  OTHER MACHINERY

  Water Makers: Sea Recovery SRV 1500-2 AWM

  Bow Thruster: Wesmar Vortex V 2-16

  Fuel Separator and Filtration: RCI Technologies water separator

  Fresh Water System: Aquabox pump 110V

  Air Conditioning: Dometic 6 ton with 72 BTU

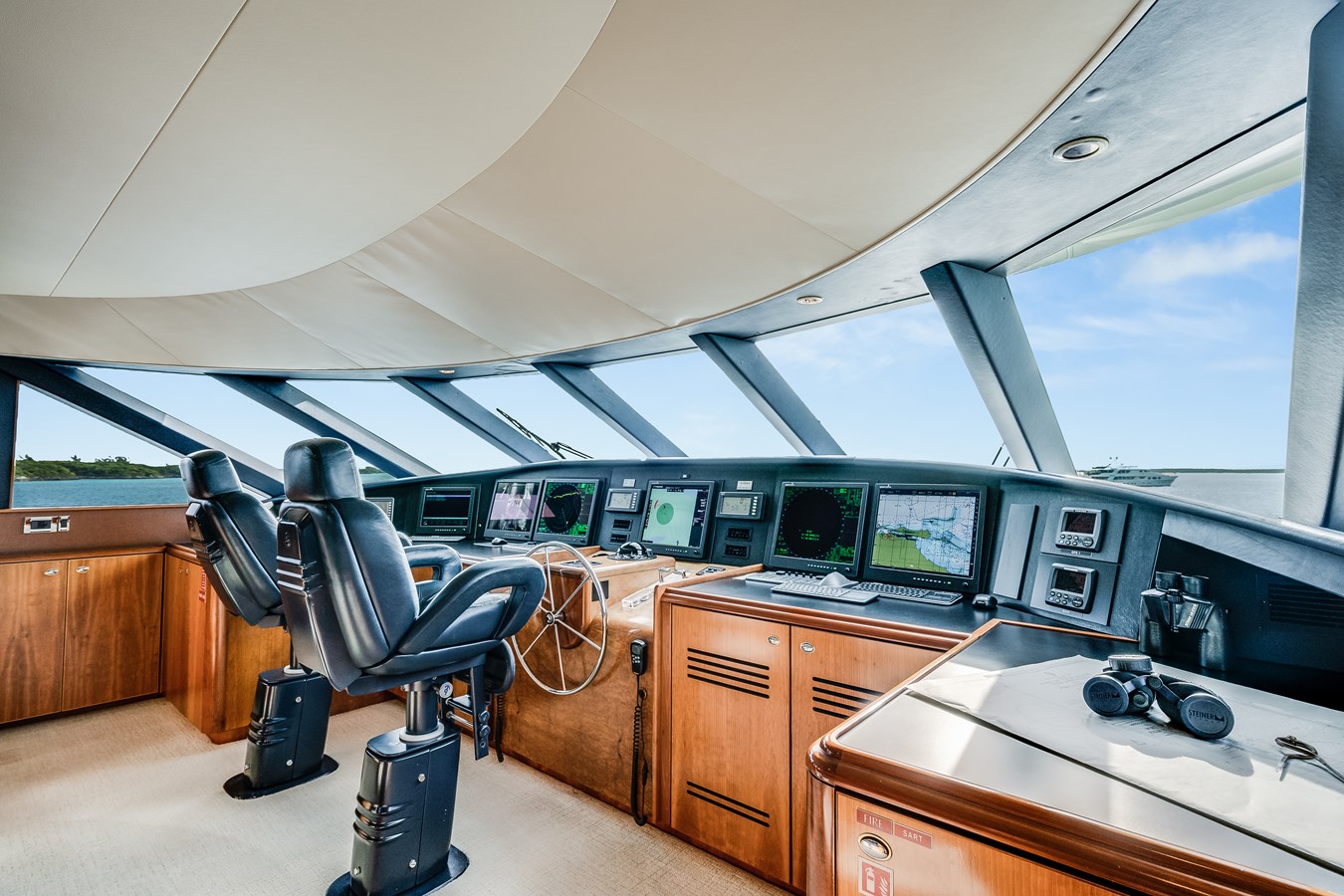

COMMUNICATION AND NAVIGATIONAL EQUIPMENT

• PILOTHOUSE

  SAT COM: Fleet 33 Inmarsat

  Telephone System: Nortel 4 line

  VHF: Icom IC-M602

  Navtex: Navtex Furuno NX700



  NAVIGATION SYSTEMS

  Radar: Furuno 2115B X-band, Furuno 2115 ARPA X-band

  Gyrocompass: Sperry Marine Navigat X MK2

  Auto Pilot: Sperry Marine Naviplot 4000+

  Depth Sounder: Furuno RD-33

  GPS: Furuno GP-33, Bridge Dash



  ENTERTAINMENT SYSTEMS

  VSAT1: Yes

  iPads: Yes

GALLEY AND LAUNDRY EQUIPMENT

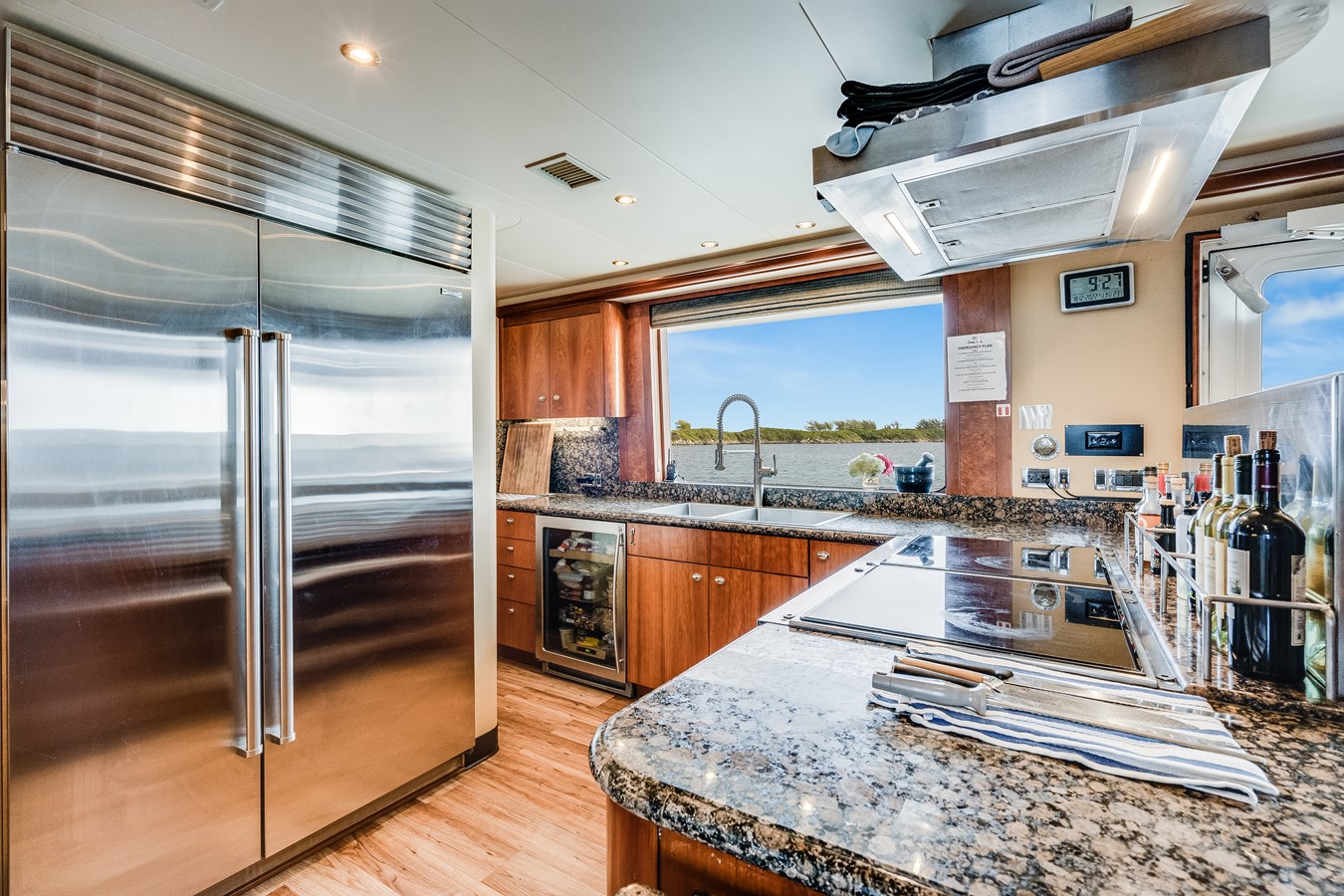

• MAIN GALLEY EQUIPMENT

  Oven: 2 x Miele ovens

  Microwave: LG microwave

  Refrigerator: Kitchen Aid refrigerator

  Freezer: Kitchen Aid freezer



  CREW GALLEY/ MESS

  Fridge: Whirlpool refrigerator, Uline refrigerator

  Microwave: LG Microwave



  LAUNDRY

  Washing Machines: 2 x Miele Washing Machines

  Dryers: 2 x Miele clothes dryers
DECK EQUIPMENT

• DECK EQUIPMENT

  Anchor Windlass: Maxwell VWC 6000

  Aft Warping Capstans:

  Anchors: 2 x Poole 600lb

  Anchor Chain: 2 x 400' 5/8"

  Main Tender Davits: Nautical Structures CC2000 EX156 with 909kg capacity

  Passarelle: Bensenzoni

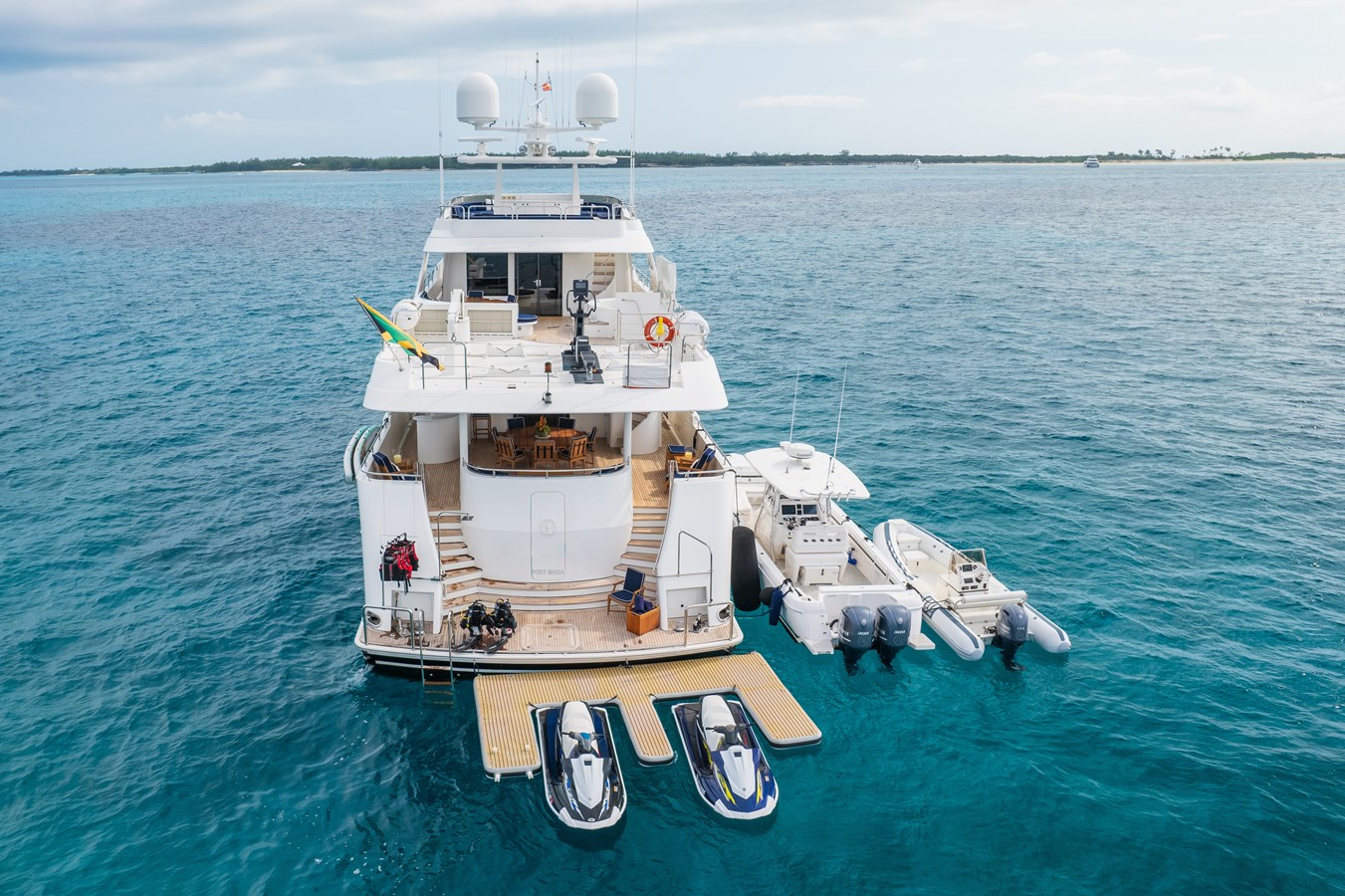

  TENDER & TOYS

  16’ Walker Bay Tender w/Honda motor (May 2025)


  2 x Yamaha Jet Skis

  2 x CAYAGO AG Seabobs



  Note: Subject to change and/or negotiation during the buying process.
SECURITY, FIRE FIGHTING AND SAFETY EQUIPMENT

• SECURITY

  CCTV System: Pelco CCTV

  Cameras: 9 x cameras

  Monitors: 4 x monitors



  FIRE FIGHTING EQUIPMENT

  Fire Control System: Custom Westport manufactured system

  Fire Extinguishers: 26 x portable fire extinguishers

  Alarms: Yes



  SAFETY EQUIPMENT

  Life Rafts: 2 x Zodiac Solas 25 life rafts

  Life Rings: 4 x Life rings

  EPIRBS: 2 x EPIRBS

  Flares: 3 x Flares

  Medical Equipment: Medical bag
DISCLAIMER

• The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

UPGRADES AND REPAIRS LIST
• Upgrades and Repairs List September 2025

  - Upgraded freshwater system, with New Headhunter- Aquabox and Mach 5-
     pump(s). Also replaced old DC pump with new.
  - Jet-Ski(s) - sent out both unit(s) to be completely inspected and repaired, at the Jet
     Ski Doctor’s recommendations, for service and replacement of engine/unit- parts.
  - MegaFend- mooring fender system- refurbished/renewed all fender hooks. Added
     additional fender hooks, for use on the stern.
  - MegaFend- fenders- purchased various new fenders, for the yacht.
  - Made new weather covers, for the bow, bow- settee, fly-bridge, boat-deck, an aft deck.
  - Replaced bow, fly-bridge, boat-deck, and aft-deck cushions, with new.
  - Engineer’s head- replaced macerator pump
  - Crew Galley- bilge pump- replaced with new unit and float switch
  - Crew Mattresses and Sheet sets- replaced all crew mattresses and sheet sets.
  - SeaBobs- 2x unit battery replacements (April 2025)
  - Numerous upgrades and cleanups to NEMA- system, for navigation system(s).
  - New Furuno System - GPS Gyro.
  - Annual service, to original/existing Gyro system.
  - Numerous upgrades and replacements for Ship’s LAN- system(s)
  - Windshield Wiper System- replaced
  - Replaced all deck- gas shocks for hatches.
  - All interior cabinet/drawer- push-buttons, were repaired or replaced.
  - Added a Master closet divider, for charter purposes.

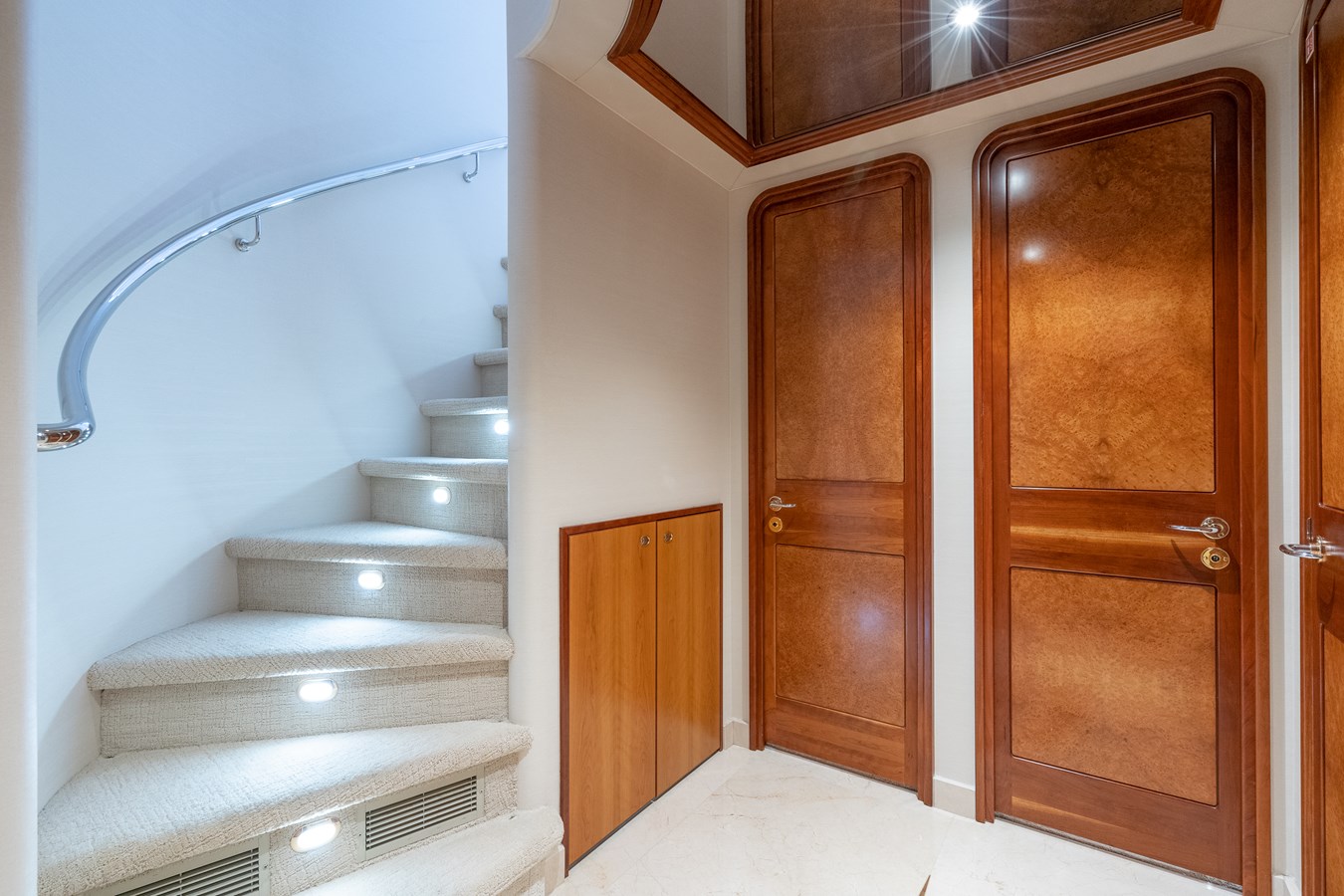

  - Installed new wood paneling and railing(s) for guest area stairwell(s).
  - Repainted boat deck non-skid
  - New tender purchase - 16’ Walker Bay w/Honda motor (May 2025)
  - New Crew plates and cutlery
  - Mineral replacement filter added to Stew-pantry sink, and Crew galley sink.
  - Added 2x new aft-deck- stair gates to swim-platform.
  - Installed all-new exhaust system, for main engine(s) and generator(s). (May 2025).
    New/Replacement filters for DPF System, are in storage, at Metcalf Marine, FLL.
  - 2x new Jetski covers
  - Installed new auto-shades, in the master stateroom.
  - Replaced Whisper Wall- overhead(s) in the Pilothouse, and Salon/Dining Room.
  - Replaced Pilothouse- wall-paper.
  - Installed all new Entertainment system, on the yacht.
  - Installed new refrigerator and ice-maker, on the Fly-bridge.
  - Installed 2x new sun shade systems, on the fly-bridge.
  - Installed new sunshade system, on the boat-deck.
  - Remove and serviced hydraulic system- heat exchangers (3)- (August 2025)
  - Removed and rebuilt Naiad Stabilizer- hydraulic rams (4)
  - Complete valve-job performed on both MTU- main engines. (Mendol) (June 2025)
  - Performed complete injector replacement on MTU- main(s)
  - Installed new air-handler, in AC closet/Lazarette.
  - Installed new control system for Lazarette- fridge/freezer system.
  - Replaced all deck-lights, with new.
  - Replaced swim-platform- shower system, with new.
  - Newly re-upholstered armchairs and sofa, in salon.
  - Replaced various pic fittings/ valves, on Headhunter- system.
  - Installed lockable drawers, in master- stateroom.
  - Full wax on exterior of yacht. (September 2025)
  - All new sheets and duvet(s) in the guest area(s).
  - New P.H. printer.
  - Replaced galley sink- faucet, with new.
  - Installed new dishwasher, in stew- pantry (galley)
  - Sanded all teak deck(s). (June 2025)
  - R & R’s galley countertop extender
  - Polished granite counter tops
  - Replaced DEIF- system control box assemblies
  - Replaced P.H. - windscreen, with new.
  - Installed new water filtration system/tap, in stew pantry.
  - Newly painted master- shower floor.
  - Props newly checked for balance and “S”- classed
  - Shafts pulled and checked for alignment.
  - New strut-bearings installed.
  - Port & Starboard – engine & transmission(s), strut- tubes, checked w/laser alignment.
  - New Naiad stabilizer fin- shaft bearings, installed.
  - All new zincs applied to under waterline and running gear.
  - New Prop Speed applied to running gear.
