AVALINA
130 | WESTPORT |2003

AVALINA is crusing the Northeast and enroute to Newport.

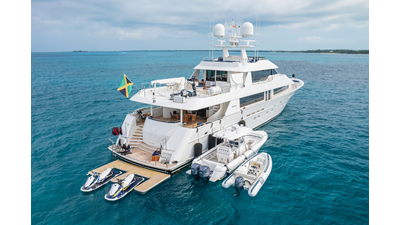

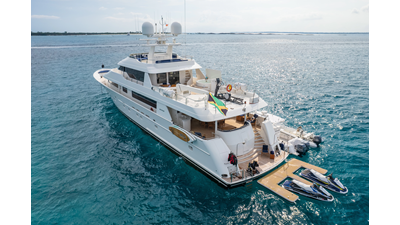

The 130’ Westport motor yacht designed by naval architect William Garden with interiors by Pacific Custom Interiors. She represents a proven blend of performance, comfort, and craftsmanship. Built in 2003, refit in 2020, she is a well-maintained and capable semi-displacement yacht.

Constructed with a GRP hull with a 26’3” beam, she offers generous volume at 280 GT, accommodating up to 10 guests with 7 crew.

Powered for both performance and range, she reaches a maximum speed of 24 knots, cruises comfortably at 13 knots, and offers an impressive range of approximately 2,500 nautical miles, making her well suited for extended cruising.

Main Specifications

• Length Overall: 130 ft / 39.6 m Beam: 26' 3" ft / 8 m Draft: 6' 6" ft / 1.98 m Year Completed: 2003 Model Year: 2003 Refit: 2020 Type: Motor Yacht Tonnage: 280 GT Displacement: Semi Displacement Guests: 10 Crew: 7

Upgrades & Repairs
• • Upgraded fresh water system, with New Headhunter- Aquabox and Mach 5-pumps. Also replaced old DC pump, with new
  • Jet-Ski - sent out both units to be completely inspected and repaired, at the Jet Ski Doctor’s recommendations, for service and replacement of engine/unit- parts
  • Made new weather covers, for the bow, bow- settee, fly-bridge, boat-deck, and aft-deck
  • Replaced bow, fly-bridge, boat-deck, and aft-deck cushions, with new
  • Crew Mattresses and Sheet sets- replaced all crew mattresses and sheet sets
  • New Furuno System - GPS Gyro
  • Windshield Wiper System- replaced
  • Repainted boat deck non-skid
  • New tender purchase - 16’ Walker Bay w/Honda motor, May 2025
  • Installed all-new exhaust system, for main engines and generators, May 2025
  • New/Replacement filters for DPF System, are in storage, at Metcalf Marine, FLL
  • Installed new auto-shades, in the master stateroom
  • Installed all new Entertainment system, on the yacht
  • Installed new refrigerator and ice-maker, on the Flybridge
  • Installed 2x new sun shade systems, on the fly-bridge
  • Installed new sunshade system, on the boat-deck
  • Remove and serviced hydraulic system- heat exchangers (3), August 2025
  • Removed and rebuilt Naiad Stabilizer- hydraulic rams (4)
  • Complete valve-job performed on both MTU- main engines (Mendol), June 2025
  • Performed complete injector replacement on MTU- main
  • All new sheets and duvet(s) in the guest areas
  • Installed new dishwasher, in stew- pantry (galley)
  • Replaced P.H. - windscreen, with new
  • Props newly checked for balance and “S”- classed
  • Shafts pulled and checked for alignment
  • New strut-bearings installed
  • Port & Starboard - engine & transmissions, strut- tubes, checked with laser alignment
  • New Naiad stabilizer fin- shaft bearings, installed
  • All new zincs applies to under waterline and running gear
  • New Prop-Speed applied to running gear
  • Replaced both rudder shaft seals
  • Hauled anchor chain. Replaced, chain/anchor- swivels, repainted, end over ended chain, and re-loaded
  • Replaced bow-thruster leg, with new
  • Performed complete valve adjustment to main engines
  • Rebuilt (4)- turbos on main engines
  • Removed air-chargers (4) from main engines, bench-tested and cleaned
  • Replaced the main fuel transfer - pump
  • Performed annual service to davit. Also replaced the davit- lifting line
  • Replaced insulation on main chill-water- trunk-line, running through the engine room.
  • Perform waxing of entire yacht
  • Rebuilt and replaced (2)- water-maker, high pressure pumps
  • Added electric- window tinting, to master-stateroom
  • Repainted- swim platform edge, from port to starboard, with non-skid
  • Replaced teak-decking on entire swim-platform
Construction
• • Builder: Westport
  • Naval Architect: William Garden
  • Interior Design/Stylist: Pacific Custom Interiors
  • Hull Material: GRP
Speed & Capacities
• • Maximum: 24 Knots
  • Cruising: 13 Knots
  • Range: 24 knots max. 2,500nm range @13kts/52gph/9,984 gallons
  • Fuel: 9898.53 Gal / 37470 L
  • Water: 1619.37 Gal / 6130 L
  • Grey Water: 940 Gal / 3,560 L
  • Black Water: 1,360 Gal / 5,150 L
  • Lube Oil Capacity: 77 Gal / 291 L
Machinery
• • Engine Type: 2 x MTU 12V 4000
  • Horsepower: 2,734 Hp
  • Engine Hours: 3,400 hours since W-6 major overhaul
  • Engine Serial Numbers: 5262001231 Port, 5262001229 Starboard
  • Generators: 2 x Kohler 65EOZD (@1,800 rpm)
  • Port Generator Hours: 1,900 hours since overhaul
  • Starboard Generator Hours: 1,900 hours since overhaul
  • Shore power: ASEA 170‐520V, 3‐Phase, 60Hz
  • Batteries: 3 x 12V sets, 6 x 24V sets
  • Stabilizer: Naiad 521 with datum control for at‐anchor stabilization
  • Stabilizer at Anchor: Yes
  • Steering System: Jastram PTO pumps from main engines
  • Water Makers: Sea Recovery SRV 1500‐2 AWM
  • Bow Thruster: Wesmar Vortex V 2‐16
  • Fuel Separator and Filtration: RCI Technologies water separator
  • Fresh Water System: Aquabox pump 110V
  • Air Conditioning: Dometic 6 ton with 72 BTU
Communication & Navigational Equipment

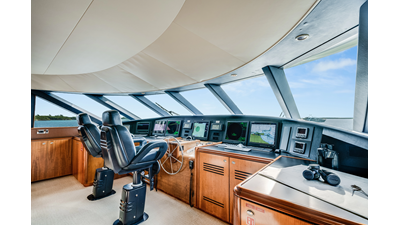

• Pilothouse

  • SAT COM: Fleet 33 Inmarsat
  • Telephone System: Nortel 4 line
  • VHF: Icom IC‐M602
  • Navtex: Navtex Furuno NX700

  Navigation Systems

  • Radar: Furuno 2115B X‐band, Furuno 2115 ARPA X‐band
  • Gyrocompass: Sperry Marine Navigat X MK2
  • Auto Pilot: Sperry Marine Naviplot 4000+
  • Depth Sounder: Furuno RD‐33
  • GPS: Furuno GP‐33, Bridge Dash

  Entertainment Systems

  • VSAT1: Yes
  • iPads: Yes
Galley & Laundry Equipment

• Main Galley Equipment

  • Oven: 2 x Miele ovens
  • Microwave: LG microwave
  • Refrigerator: Kitchen Aid refrigerator
  • Freezer: Kitchen Aid freezer

  Crew Galley/Mess

  • Fridge: Whirlpool refrigerator, Uline refrigerator
  • Microwave: LG Microwave

  Laundry

  • Washing Machines: 2 x Miele Washing Machines
  • Dryers: 2 x Miele clothes dryers
Deck Equipment
• • Anchor Windlass: Maxwell VWC 6000
  • Aft Warping Capstans:
  • Anchors: 2 x Poole 600lb
  • Anchor Chain: 2 x 400' 5/8"
  • Main Tender Davits: Nautical Structures CC2000 EX156 with 909kg capacity
  • Passarelle: Bensenzoni
Security, Fire Fighting & Safety Equipment
• • CCTV System: Pelco CCTV
  • Cameras: 9 x cameras
  • Monitors: 4 x monitors
  • Fire Control System: Custom Westport manufactured system
  • Fire Extinguishers: 26 x portable fire extinguishers
  • Alarms: Yes
  • Life Rafts: 2 x Zodiac Solas 25 life rafts
  • Life Rings: 4 x Life rings
  • EPIRBS: 2 x EPIRBS
  • Flares: 3 x Flares
  • Medical Equipment: Medical bag
